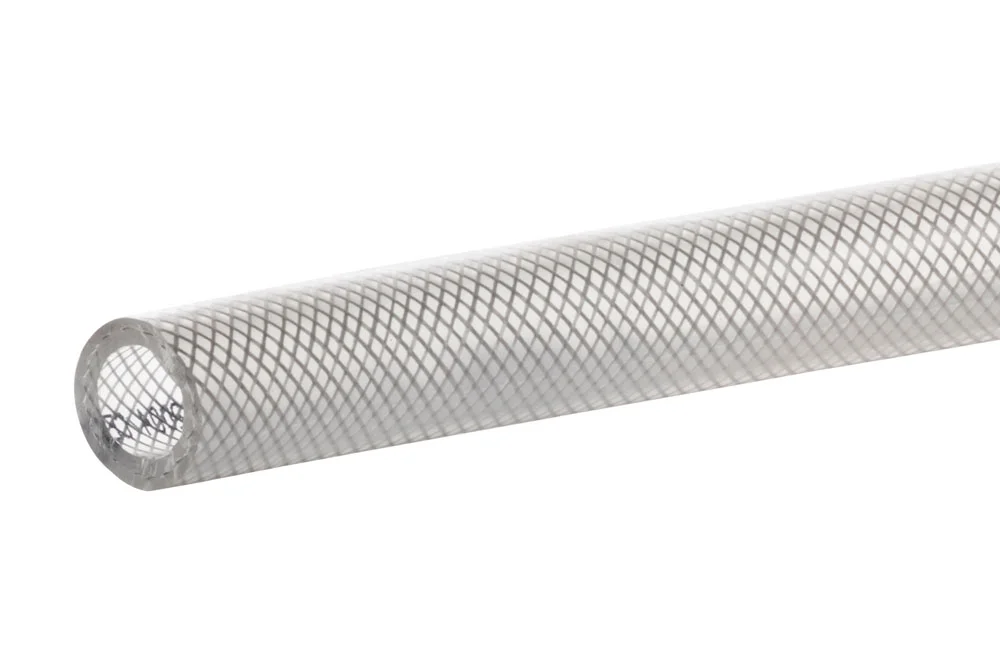

TPE braided hose for food, pharmaceutical and cosmetic substances PHARMAPRESS

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-30

Vacuum resistance

check

Standard length [m]

100, 20, 50, 60, 60 / 120

Reinforcement

polyester braid

Very flexible hose designed for the transfer of food, pharmaceutical, and cosmetic substances: water, fruit juices, beer, wine, vinegar, alcohols up to 96% concentration, milk and its derivatives, creams, soaps, aromatic substances, pigments, and others. Resistant to fats and oils in standard usage conditions. Good chemical resistance to light chemicals – solutions of acids and bases. Extruded, completely smooth inner and outer layers of the hose facilitate flow and cleaning. The hose material is non-vulcanized, clean (contains no vulcanization additives), resistant to hydrolysis, does not promote bacterial growth, has low porosity and low permeability. Completely neutral in taste and odor, does not alter the organoleptic properties of the medium. Resistant to aging, weather conditions, and UV radiation. Hose cleaning, disinfection, or sterilization should be carried out strictly according to the recommendations provided in the catalog sheet below. Cleaning by SIP method is not recommended as it significantly shortens the service life. Use for high-proof alcohol (its vapors or other flammable substances) requires consideration of hazards related to static electricity. Standards and requirements: 1) Food industry, contact with food: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulants A, B, C, D1, D2), 2023/2006/EC (GMP) and American FDA 21 CFR 177.2600 “e”. 2) Pharmaceutical industry USP CLASS VI. Hose material: transparent TPE-S. Reinforcement: polyester braid. Working pressure: from 7 bar to 12 bar, depending on the hose diameter. Operating temperature: -30°C to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IP-PHARMAPRESS-06PHARMAPRESS hose 6.4x12.6 mm (1/4")612In stock
Enquiry
IP-PHARMAPRESS-08PHARMAPRESS hose 7.9x14.6 mm (5/16")815In stock
Enquiry
IP-PHARMAPRESS-10PHARMAPRESS hose 9.5x16.3 mm (3/8")1014In stock
Enquiry
IP-PHARMAPRESS-13PHARMAPRESS hose 12.7x20.1 mm (1/2")1210In stock
Enquiry
IP-PHARMAPRESS-16PHARMAPRESS hose 15.9x24.2 mm (5/8")169In stock
Enquiry
IP-PHARMAPRESS-19PHARMAPRESS hose 19x27.9 mm (3/4")209In stock
Enquiry
IP-PHARMAPRESS-25PHARMAPRESS hose 25.4x34.5 mm (1")257In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Very flexible hose designed for the transfer of food, pharmaceutical, and cosmetic substances: water, fruit juices, beer, wine, vinegar, alcohols up to 96% concentration, milk and its derivatives, creams, soaps, aromatic substances, pigments, and others. Resistant to fats and oils in standard usage conditions. Good chemical resistance to light chemicals – solutions of acids and bases. Extruded, completely smooth inner and outer layers of the hose facilitate flow and cleaning. The hose material is non-vulcanized, clean (contains no vulcanization additives), resistant to hydrolysis, does not promote bacterial growth, has low porosity and low permeability. Completely neutral in taste and odor, does not alter the organoleptic properties of the medium. Resistant to aging, weather conditions, and UV radiation. Hose cleaning, disinfection, or sterilization should be carried out strictly according to the recommendations provided in the catalog sheet below. Cleaning by SIP method is not recommended as it significantly shortens the service life. Use for high-proof alcohol (its vapors or other flammable substances) requires consideration of hazards related to static electricity. Standards and requirements: 1) Food industry, contact with food: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulants A, B, C, D1, D2), 2023/2006/EC (GMP) and American FDA 21 CFR 177.2600 “e”. 2) Pharmaceutical industry USP CLASS VI. Hose material: transparent TPE-S. Reinforcement: polyester braid. Working pressure: from 7 bar to 12 bar, depending on the hose diameter. Operating temperature: -30°C to +100°C.

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-30

Vacuum resistance

check

Standard length [m]

100, 20, 50, 60, 60 / 120

Reinforcement

polyester braid
