Is the Hydraulic two-way valve with BSP female thread, type BKHX compatible with hydraulic fluids at operating temperatures down to -40Â°C and up to +100Â°C?

Yes. The Hydraulic two-way valve with BSP female thread, type BKHX is specified for operation with POM and NBR seals rated from â40Â°C to +100Â°C. That temperature range indicates compatibility with hydraulic fluids whose operating temperatures fall within â40Â°C to +100Â°C, provided the fluid is chemically compatible with steel, POM and NBR. Verify fluid compatibility with NBR (nitrile) and POM for specific additives, synthetic fluids or aggressive fluids; for borderline fluids or extended exposure outside â40Â°Câ¦+100Â°C, consult the manufacturer.

Can the Hydraulic two-way valve with BSP female thread, type BKHX withstand high-pressure hydraulic systems requiring steel construction and POM/NBR seals?

Yes. The Hydraulic two-way valve with BSP female thread, type BKHX is suitable for high-pressure hydraulic systems that require steel construction and POM/NBR seals. Its body, ball and stem are steel, providing the required strength for high-pressure applications, and it uses POM for the ball seal and NBR for the stem seal. Operating temperature ranges for both POM and NBR (â40Â°C to +100Â°C) are compatible with typical hydraulic service conditions. Ensure system pressure and specific fluid compatibility fall within the valveâs rated pressure and the chemical compatibility limits of POM and NBR before final selection.

Does the Hydraulic two-way valve with BSP female thread, type BKHX support POM ball seals for long-term use?

Yes. The Hydraulic two-way valve with BSP female thread, type BKHX supports POM ball seals for long-term use within its specified operating limits. The product description lists POM as the material for the ball seals and gives an operating temperature range for POM of -40Â°C to +100Â°C, indicating the seals are intended for continuous service inside those temperatures. Additionally, the valve body, ball and stem are steel, which provides robust mechanical support for the POM seals in high-pressure hydraulic installations. NBR is used for stem seals and shares a compatible temperature range. Caveats to consider for long-term performance: - Stay within the stated temperature range (-40Â°C to +100Â°C) to avoid POM degradation or loss of mechanical properties. Prolonged exposure above 100Â°C will shorten seal life. - Ensure fluid compatibility: POM resists many hydraulic fluids but verify compatibility with any specific hydraulic fluid, additives, or aggressive media you plan to use. - Follow pressure and cycling limits typical for high-pressure hydraulic installations; excessive pressure spikes, abrasion from contaminated fluids, or very high cycle rates can accelerate wear. - Proper installation, maintenance and contamination control (filtration) will extend seal life. Summary: The Hydraulic two-way valve with BSP female thread, type BKHX is designed to use POM ball seals for long-term service when used within its temperature, fluid compatibility and hydraulic operating conditions.

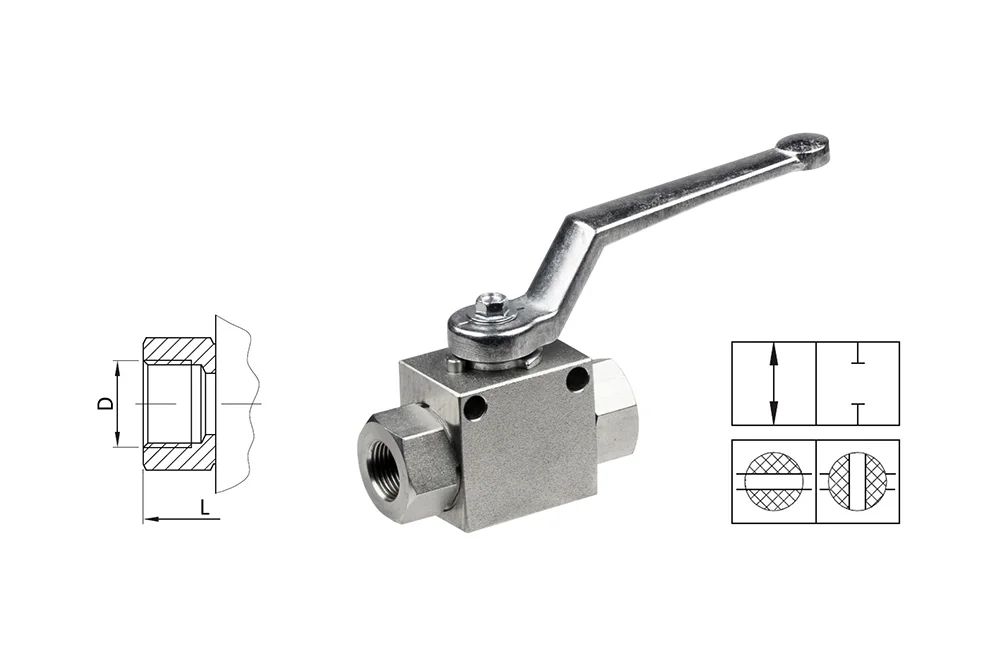

Hydraulic two-way valve with BSP female thread, type BKHX

All products, Directional control valves/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	20

High-quality two-way ball valve with internal BSP threads and mounting holes in the body, designed for high-pressure hydraulic installations. Material: steel (body, ball, stem). Seals: POM (ball), NBR (stem). Operating temperature: from -40°C to +100°C (POM); from -40°C to +100°C (NBR).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HZ-BKH-G-04X	Two-way valve DN6 with 1/4" BSP thread, POM/NBR	6	500	In stock	Enquiry
HZ-BKH-G-06X	Two-way valve DN10 with 3/8" BSP female thread, POM/NBR	10	500	In stock	Enquiry
HZ-BKH-G-08X	Two-way valve DN13 with 1/2" BSP thread, POM/NBR	12	500	In stock	Enquiry
HZ-BKH-G-12X	Two-way valve DN20 with 3/4" BSP thread, POM/NBR	20	500	In stock	Enquiry
HZ-BKH-G-16X	Two-way valve DN25 with 1" BSP thread, POM/NBR	25	500	In stock	Enquiry
HZ-BKH-G-20X	Two-way valve DN32 with 1.1/4" BSP thread, POM/NBR	20	350	In stock	Enquiry
HZ-BKH-G-24X	Two-way valve DN40 with 1.1/2" BSP thread, POM/NBR	40	350	In stock	Enquiry
HZ-BKH-G-32X	Two-way valve DN50 with 2" BSP thread, POM/NBR	50	350	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-quality two-way ball valve with internal BSP threads and mounting holes in the body, designed for high-pressure hydraulic installations. Material: steel (body, ball, stem). Seals: POM (ball), NBR (stem). Operating temperature: from -40°C to +100°C (POM); from -40°C to +100°C (NBR).
