Is the Top plate for DIN 3015 heavy duty clamp compatible with both galvanized carbon steel and AISI 316L versions for outdoor corrosive environments?

Top plate for DIN 3015 heavy duty clamp Format: Yes . the Top plate for DIN 3015 heavy duty clamp is offered in both galvanized carbon steel and AISI 316L stainless steel versions, so you can choose the material suitable for outdoor corrosive environments. Galvanized carbon steel provides basic corrosion protection suitable for less aggressive outdoor conditions, while AISI 316L offers much higher corrosion resistance (including against chlorides and marine atmospheres) and is the preferred choice for harsh or highly corrosive outdoor environments. Select the AISI 316L top plate where long-term exposure to salt spray, chemicals, or severe weather is expected; the galvanized carbon steel option is acceptable for milder outdoor exposure.

Can the Top plate for DIN 3015 heavy duty clamp support different bolt patterns for various pipe diameters?

Yes. The Top plate for DIN 3015 heavy duty clamp is designed to accommodate various bolt patterns to suit different pipe diameters. Made from carbon steel (galvanized) or AISI 316L stainless steel, the Top plate for DIN 3015 heavy duty clamp provides the necessary strength and corrosion resistance for heavy-duty applications while allowing flexibility in mounting configurations. Its hole layout and robust construction enable secure fastening of the complete type 201 clamp assembly across a range of pipe sizes, ensuring proper load distribution and reliable support.

Does the Top plate for DIN 3015 heavy duty clamp come pre-drilled for specific clamp sizes or is drilling required?

The Top plate for DIN 3015 heavy duty clamp Format is supplied as a plain metal mounting plate (carbon steel, galvanized or AISI 316L stainless steel) intended for mounting the heavy DIN 3015 clamp complete type 201. The product description does not state that the top plate is pre-drilled for specific clamp sizes; therefore drilling or final hole preparation is normally required to match the particular clamp variant and the installation geometry. In practice you should expect to drill or machine the plate to the required hole pattern and sizes on site or specify pre-drilling when ordering if you need holes to match a particular clamp model or mounting arrangement. If you need confirmed pre-drilled dimensions, request technical drawings or a drilling service from the supplier before purchase.

Top plate for DIN 3015 heavy duty clamp

All products, Clamps for hydraulic pipes/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	4

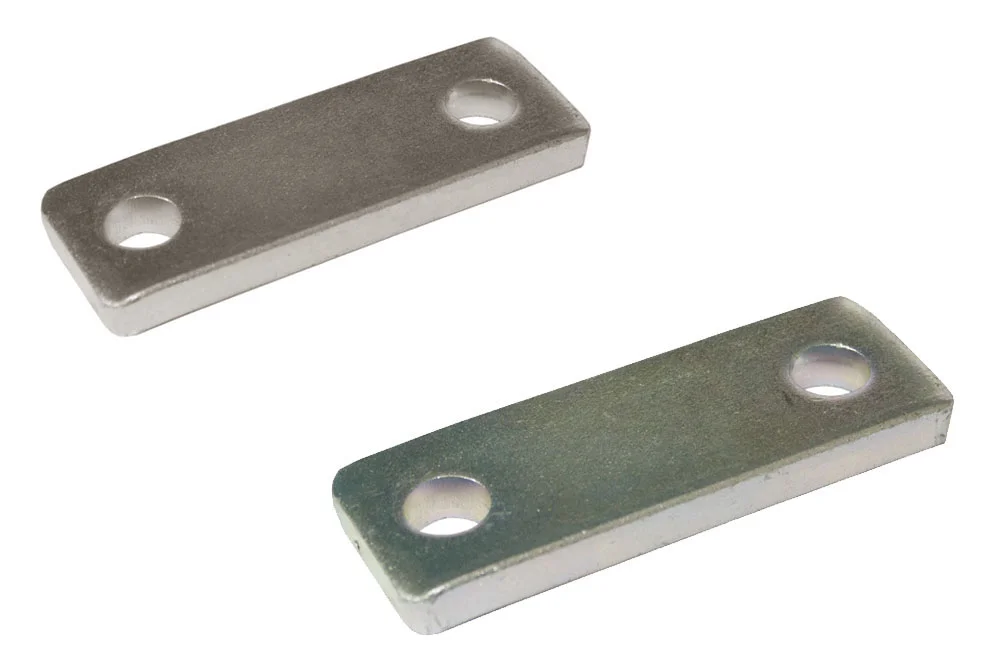

Top plate for mounting heavy DIN 3015 clamp complete type 201. Material: carbon steel, galvanized or AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-APSP-1	Top plate heavy duty thickness 1	-	-	In stock	Enquiry
TC-APSP-1-SS	Top plate heavy duty thickness 1, AISI 316L	-	-	In stock	Enquiry
TC-APSP-2	Top plate heavy duty thickness 2	-	-	In stock	Enquiry
TC-APSP-2-SS	Top plate heavy duty thickness 2, AISI 316L	-	-	In stock	Enquiry
TC-APSP-3	Top plate heavy duty thickness 3	-	-	In stock	Enquiry
TC-APSP-3-SS	Top plate heavy duty thickness 3, AISI 316L	-	-	In stock	Enquiry
TC-APSP-4	Top plate heavy duty thickness 4	-	-	In stock	Enquiry
TC-APSP-4-SS	Top plate heavy duty thickness 4, AISI 316L	-	-	In stock	Enquiry
TC-APSP-5	Top plate heavy duty thickness 5	-	-	In stock	Enquiry
TC-APSP-5-SS	Top plate heavy duty thickness 5, AISI 316L	-	-	In stock	Enquiry
TC-APSP-6	Top plate heavy 6 mm thick	-	-	In stock	Enquiry
TC-APSP-6-SS	Top plate heavy duty thickness 6, AISI 316L	-	-	In stock	Enquiry
TC-APSP-7	Top plate heavy duty thickness 7	-	-	In stock	Enquiry
TC-APSP-8	Top plate heavy duty thickness 8	-	-	In stock	Enquiry
