Is the Flanged connection 4-hole 90Â° from DIN 2353 in carbon steel compatible with hydraulic pumps using a 24Â° DIN 2353 socket and external metric thread?

Flanged connection 4-hole 90Â° from DIN 2353 in carbon steel Format is compatible with hydraulic pumps that use a 24Â° DIN 2353 socket and external metric thread . provided the pumpâs external thread size and the flangeâs metric external connection thread match exactly (same nominal thread and pitch) and the 24Â° cone dimensions conform to DIN 2353. Opis wskazuje, Å¼e flange ma socket 24Â° DIN 2353 and external metric connection thread, so funkcjonalnie jest przeznaczony do poÅÄczenia z pompami z odpowiadajÄcym zewnÄtrznym gwintem i stoÅ¼kiem 24Â°. Dodatkowo zwrÃ³Ä uwagÄ na te warunki przed montaÅ¼em: - Match nominal thread size and pitch (identical metric thread specification). - Ensure flange pitch circle diameter (35â55 mm) pasuje do miejsca montaÅ¼u i otworÃ³w montaÅ¼owych pompy. - SprawdÅº, czy dostarczony zestaw Årub i podkÅadek odpowiada gruboÅci i rozstawowi otworÃ³w pompy. - Upewnij siÄ, Å¼e uszczelnienie stoÅ¼kowe 24Â° jest w dobrym stanie i O-ring zapewnia dodatkowÄ szczelnoÅÄ przy wymaganym ciÅnieniu. - Temperatury pracy (-20Â°C do +100Â°C) i materiaÅ (carbon steel, galvanized) muszÄ byÄ zgodne z warunkami pracy i medium hydraulicznym. JeÅli wszystkie powyÅ¼sze parametry sÄ zgodne, komponenty bÄdÄ kompatybilne.

Can the Flanged connection 4-hole 90Â° from DIN 2353 in carbon steel handle hydraulic fluids at -20Â°C to +100Â°C?

Yes. The Flanged connection 4-hole 90Â° from DIN 2353 in carbon steel Format can handle hydraulic fluids at -20Â°C to +100Â°C. Its material (galvanized carbon steel) and specified operating temperature range (-20Â°C to +100Â°C) cover those service temperatures. Ensure fluid compatibility with carbon steel and the Oâring material, and confirm pressure and application specifics (shock, cyclic loading) meet system requirements.

Does the Flanged connection 4-hole 90Â° from DIN 2353 in carbon steel include the screw, washer, and O-ring set as standard?

Yes. the Flanged connection 4-hole 90Â° from DIN 2353 in carbon steel Format is supplied standardly with a set of screws, washers, and an Oâring. The product description states it is "standardly equipped with a set of screws, washers, and an Oâring" and lists material as carbon steel, galvanized, with operating temperature -20Â°C to +100Â°C.

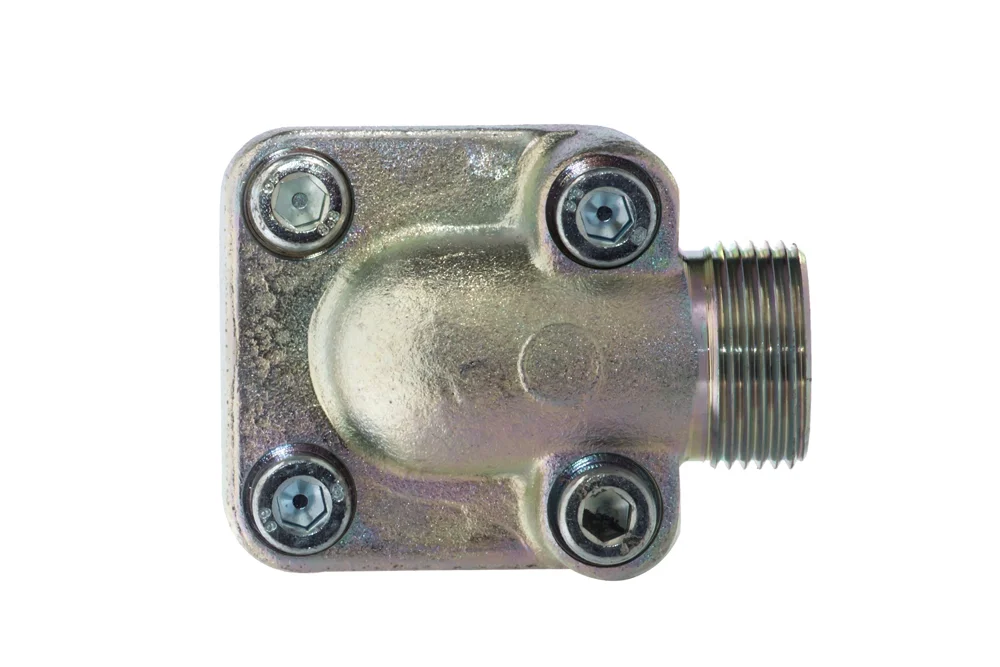

Flanged connection 4-hole 90° from DIN 2353 in carbon steel

All products, Hydraulic pumps/

Additional information

Material	CS – steel (cast iron)

90° flange connection with a compact design, featuring a flange with a pitch diameter of holes from 35 mm to 55 mm, with an external metric connection thread, socket 24° DIN 2353. Used in hydraulic pump connections. Standardly equipped with a set of screws, washers, and an O-ring. Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-A-90-35-10L	90° collar fitting Dp 35 mm, tube 10L	-	315	In stock	Enquiry
HK-A-90-35-12L	90° collar fitting Dp 35 mm, tube 12L	-	315	In stock	Enquiry
HK-A-90-35-15L	90° collar fitting Dp 35 mm, tube 15L	-	250	In stock	Enquiry
HK-A-90-35-16S	90° collar fitting Dp 35 mm, tube 16S	-	315	In stock	Enquiry
HK-A-90-40-15L	90° collar fitting Dp 40 mm, tube 15L	-	100	In stock	Enquiry
HK-A-90-40-18L	90° collar fitting Dp 40 mm, tube 18L	-	100	In stock	Enquiry
HK-A-90-40-20S	90° collar fitting Dp 40 mm, tube 20S	-	250	In stock	Enquiry
HK-A-90-40-22L	Flanged elbow 90° Dp 40 mm, tube 22L	-	100	In stock	Enquiry
HK-A-90-40-28L	90° collar fitting Dp 40 mm, tube 28L	-	100	In stock	Enquiry
HK-A-90-55-20S	90° collar fitting Dp 55 mm, tube 20S	-	250	In stock	Enquiry
HK-A-90-55-25S	90° collar fitting Dp 55 mm, tube 25S	-	250	In stock	Enquiry
HK-A-90-55-30S	90° collar fitting Dp 55 mm, tube 30S	-	250	In stock	Enquiry
HK-A-90-55-35L	90° collar fitting Dp 55 mm, tube 35L	-	100	In stock	Enquiry
HK-A-90-55-38S	Flanged elbow 90° Dp 55 mm, tube 38S	-	250	In stock	Enquiry
HK-A-90-55-42L	90° collar fitting Dp 55 mm, tube 42L	-	100	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° flange connection with a compact design, featuring a flange with a pitch diameter of holes from 35 mm to 55 mm, with an external metric connection thread, socket 24° DIN 2353. Used in hydraulic pump connections. Standardly equipped with a set of screws, washers, and an O-ring. Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
