Can the 45Â° NON SKIVE DKOR end, carbon steel, type NBW310 be crimped onto 4SP/4SH/R13/R15 hoses with TI-N sleeves without cutting the hose rubber?

Yes. The 45Â° NON SKIVE DKOR end, carbon steel, type NBW310, is designed for crimping onto 4SP, 4SH, R13, and R15 hoses using TI-N crimping sleeves without cutting or stripping the hose rubber. It features an internal BSP thread and seals on a 60Â° cone with an O-ring (DKOR 45), and its construction and specified installation method explicitly allow installation without removing the hose cover. Materials and galvanization are suitable for standard crimping processes. Ensure you use the correct TI-N sleeve dimensions and follow the manufacturer's crimping specifications (pressing force, die set, and assembly orientation) to achieve a proper, leak-free crimp.

Is the 45Â° NON SKIVE DKOR end, carbon steel, type NBW310 compatible with TI-N crimping sleeves for 4SP/4SH/R13/R15 hoses without hose rubber removal?

Yes. The 45Â° NON SKIVE DKOR end, carbon steel, type NBW310 is designed for crimping into 4SP/4SH/R13/R15 hoses using the TI-N crimping sleeve and explicitly supports installation without removing the hose rubber. Its internal BSP thread with 60Â° cone sealing and Oâring (DKOR 45) and carbon steel, galvanized construction are intended for that nonâskive crimping application.

Does 45Â° NON SKIVE DKOR end, carbon steel, type NBW310 require hose rubber removal before crimping with TI-N on 4SP/4SH/R13/R15?

No. 45Â° NON SKIVE DKOR end, carbon steel, type NBW310 does not require hose rubber removal before crimping with TI-N on 4SP/4SH/R13/R15. According to the description, this is a non-skive (NON SKIVE) fitting with an internal BSP thread and a 60Â° cone seal with an O-ring (DKOR 45), specifically intended for crimping into hoses type 4SP, 4SH, R13 and R15 using the TI-N crimping sleeve. The installation instruction explicitly states: without cutting the hose rubber. Therefore the hose cover remains intact during assembly.

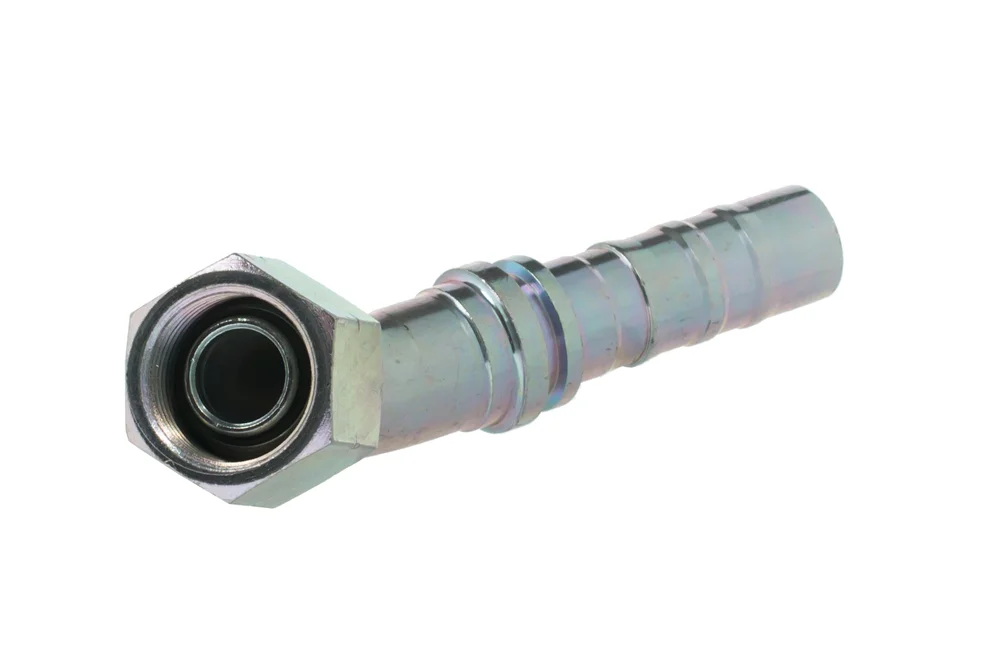

Fitting 45° NON SKIVE DKOR, carbon steel, type NBW310

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Fitting 45° NON SKIVE with BSP female thread, with 60° cone sealing with an O-ring (DKOR 45), intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NBW310-12-12	Fitting 45° NON SKIVE 3/4" BSP female, hose 3/4", O-ring	20	420	In stock	Enquiry
TI-NBW310-16-12	Fitting 45° NON SKIVE 1" BSP female, hose 3/4", O-ring	20	380	In stock	Enquiry
TI-NBW310-16-16	Fitting 45° NON SKIVE 1" BSP female, hose 1", O-ring	25	380	In stock	Enquiry
TI-NBW310-20-16	Fitting 45° NON SKIVE 1.1/4" BSP female, hose 1", O-ring	25	325	In stock	Enquiry
TI-NBW310-20-20	Fitting 45° NON SKIVE 1.1/4" BSP female, hose 1.1/4", O-ring	32	325	In stock	Enquiry
TI-NBW310-24-20	Fitting 45° NON SKIVE 1.1/2" BSP female, hose 1.1/4", O-ring	32	290	In stock	Enquiry
TI-NBW310-24-24	Fitting 45° NON SKIVE 1.1/2" BSP female, hose 1.1/2", O-ring	38	290	In stock	Enquiry
TI-NBW310-32-32	Fitting 45° NON SKIVE 2" BSP female, hose 2", O-ring	50	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting 45° NON SKIVE with BSP female thread, with 60° cone sealing with an O-ring (DKOR 45), intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.
