Is the Quick coupling socket 45Â° for injection molds with hose end with valve, DYROS series 90 compatible with compressed air systems at 15 bar?

Yes. The Quick coupling socket 45Â° for injection molds with hose end with valve, DYROS series 90 is specified for working pressure: 15 bar and is described as designed for compressed air installations (alongside cooling liquids, gas cylinders and other technical fields). Materials (brass body, stainless steel retaining rings/springs/balls) and Viton sealing are suitable for compressed air at that pressure. Therefore it is compatible with compressed air systems at 15 bar, provided the installation and fittings meet your systemâs safety and temperature requirements.

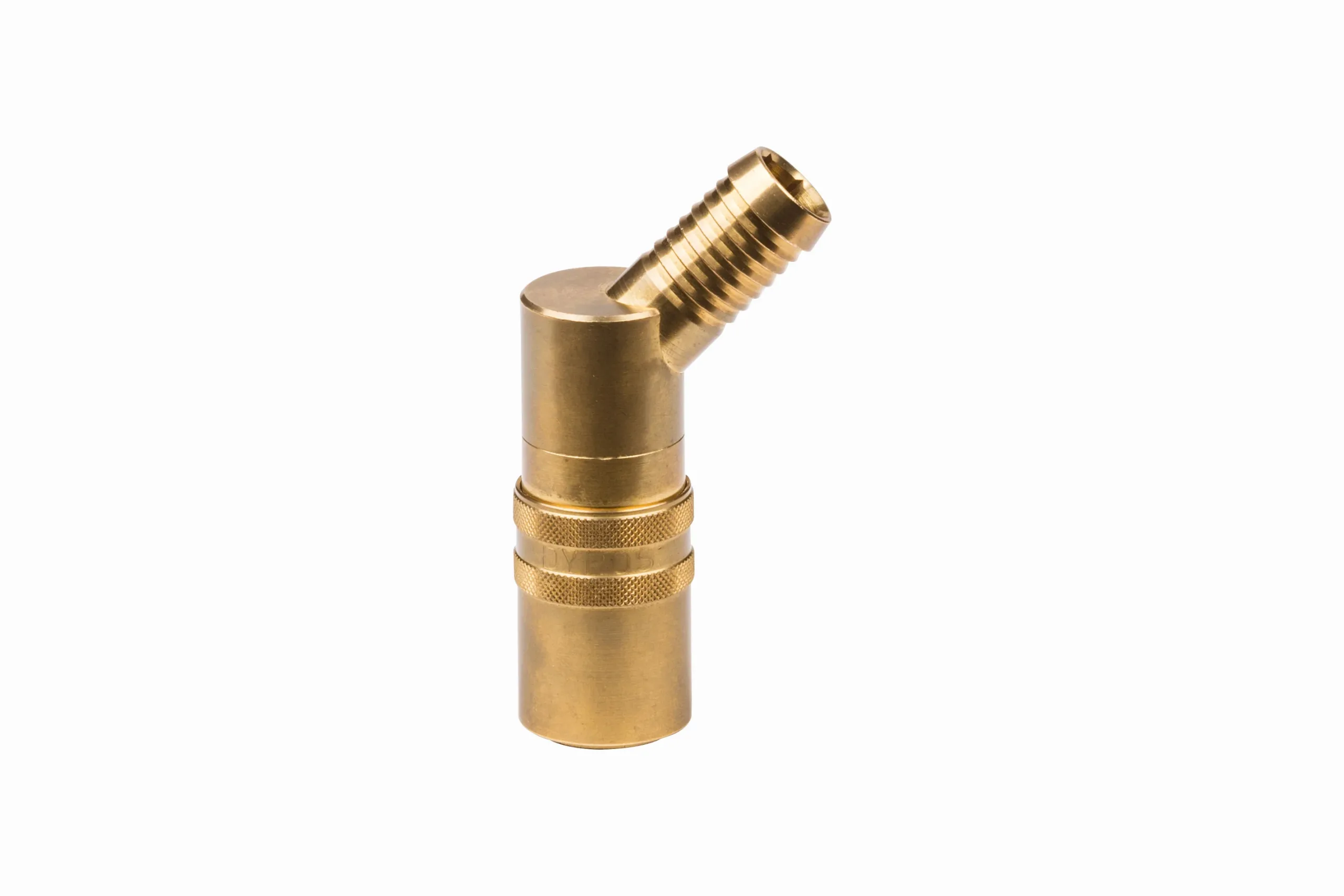

Quick coupling socket 45° for injection molds with hose end with valve, DYROS series 90

Additional information

Material	B – brass (bronze)

Quick coupling socket 45° DYROS series 90 with hose end and shut-off valve. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinders, and other technical fields. Material: all components are made of brass, while retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
DY-VK911-45	45° socket DN 9 with end for 7/16" hose, with valve	10	15
DY-VK918-45	45° socket DN 9 with 1/2" hose connection, with valve	12	15

Quick coupling socket 45° DYROS series 90 with hose end and shut-off valve. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinders, and other technical fields. Material: all components are made of brass, while retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.
