Is the 90Â° quick connect plug for injection molds with GZ without valve, DYROS series 30 compatible with both metric and BSP threads?

Yes. The 90Â° quick connect plug for injection molds with GZ without valve, DYROS series 30 is available with either metric or BSP external threads, so it is compatible with both metric and BSP threaded connections. It is a brass fitting rated for 15 bar and is intended for cooling liquids in injection molds, compressed air systems, gas cylinder applications and similar technical uses.

Can the 90Â° quick connect plug for injection molds with GZ without valve, DYROS series 30 be used safely with cooling fluids at 15 bar?

Yes. The 90Â° quick connect plug for injection molds with GZ without valve, DYROS series 30 is specified for cooling liquids and has a working pressure of 15 bar. Made of brass and designed for cooling fluids in plastic processing molds, it can be used safely at that pressure provided the installation is proper, threads are compatible (metric or BSP), fittings are intact, and operating conditions (temperature, fluid type, and system pressure spikes) do not exceed manufacturer limits. Regular inspection and correct assembly are recommended.

Does the 90Â° quick connect plug for injection molds with GZ without valve, DYROS series 30 require specific sealing tape or paste for BSP threads?

The 90Â° quick connect plug for injection molds with GZ without valve, DYROS series 30 with BSP external threads should have thread sealing to ensure leak-free operation at up to 15 bar. Use a suitable PTFE (Teflon) tape rated for hydraulic/ pneumatic use or a non-hardening pipe sealant paste compatible with brass and the intended fluid (cooling liquids or compressed air). Apply PTFE tape in the direction of thread engagement, 2â4 wraps, avoiding tape on the first thread turn to prevent contamination. If using sealant paste, apply a thin, even layer to the male threads and allow manufacturer-recommended curing time if required. Avoid sealants that chemically attack brass or that contain particles which could clog cooling channels. Follow system cleanliness and tightening torque recommendations to prevent leaks and ensure proper sealing.

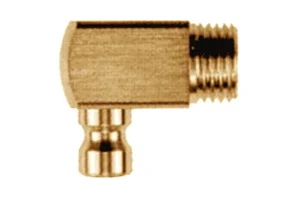

90° quick connect plug for injection molds with GZ without valve, DYROS series 30

Additional information

Material	B – brass (bronze)

90° quick coupling plug DYROS series 30 with external thread without valve. Available with metric or BSP thread. Designed for cooling liquids for molds in plastic processing, compressed air installations, gas cylinder applications, and other technical fields. Material: brass. Working pressure: 15 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DY-VN310	90° plug DN 6 with GZ M10x1, without valve	-	15	In stock	Enquiry
DY-VN314	90° plug DN 6 with GZ 1/4", without valve	-	15	In stock	Enquiry
DY-VN318	90° plug DN 6 with GZ 1/8", without valve	-	15	In stock	Enquiry
DY-VN338	90° plug DN 6 with GZ 3/8", without valve	-	15	In stock	Enquiry
DY-VN345	90° plug DN 6 with GZ M14x1.5, without valve	-	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° quick coupling plug DYROS series 30 with external thread without valve. Available with metric or BSP thread. Designed for cooling liquids for molds in plastic processing, compressed air installations, gas cylinder applications, and other technical fields. Material: brass. Working pressure: 15 bar.
