Can Socket 45Â° DN 9 quick connector with male thread, TST 090 series, brass be used with steam at 200Â°C under 25 bar?

Yes . Socket 45Â° DN 9 quick connector with male thread, TST 090 series, brass can be used with steam at 200Â°C under 25 bar, provided the following conditions are met: - The specified operating temperature range is up to +200Â°C (with Viton seal), and the working pressure rating is 25 bar, matching your steam conditions. - Materials listed (brass body, stainless steel spring/ring/balls, Viton seal) are compatible with saturated steam at these parameters in typical industrial applications. - Ensure the seal is indeed Viton (as stated) and in good condition; Viton is generally suitable up to 200Â°C but performance can degrade near the upper limit, especially with prolonged exposure to high-temperature steam. - Verify system transient conditions (pressure/temperature spikes), chemical additives in the steam, and cycle frequency; extremes or repeated thermal cycling can shorten seal life or affect brass components. - For critical safety or long-term service, perform validation testing or consult the manufacturer for confirmation and recommended maintenance intervals. If all above are confirmed and maintained, the connector is suitable for steam at 200Â°C / 25 bar.

Can Socket 45Â° DN 9 quick connector with male thread, TST 090 series, brass be used for hot oil at 200Â°C and 25 bar?

Yes. Socket 45Â° DN 9 quick connector with male thread, TST 090 series, brass can be used for hot oil at 200Â°C and 25 bar, provided the seal material is Viton (operating temperature specified -20Â°C to +200Â°C) and system conditions (pressure spikes, chemical compatibility with oil, and thermal cycling) are within those limits. Construction materials (brass body, stainless steel spring/ring/balls) support the stated working pressure 25 bar and flow diameter 9 mm. Ensure proper installation, verify oil compatibility with brass and Viton, and consider safety margins for transient pressures and higher temperatures.

Is Socket 45Â° DN 9 quick connector with male thread, TST 090 series, brass suitable for use with food-grade cooling water?

Socket 45Â° DN 9 quick connector with male thread, TST 090 series, brass Format. based on the provided description, it can be used with cooling water in many industrial applications, but suitability for food-grade use is not guaranteed. Why it can work: - Material: brass body is compatible with water and typical cooling systems. - Performance: flow diameter 9 mm, working pressure up to 25 bar, and temperature range (â20Â°C to +200Â°C with Viton) cover typical cooling-water conditions. - Proven uses: manufacturer states use for cooling injection molds, cleaning machines, and water applications. Limitations for food-grade use: - Brass may leach lead or other impurities unless specifically certified as dezincification-resistant, lead-free, or compliant with potable water standards (e.g., NSF/ANSI 61, EU Drinking Water Directive, WRAS). - Seals: Viton is chemically robust but not universally approved for all food-contact or potable-water uses; food-grade elastomers (e.g., EPDM approved for potable water or FDA-compliant materials) may be required. - No stated food-contact certifications in the description; absence of explicit certification means it should not be assumed food-grade. Recommendation: - For non-food industrial cooling water: acceptable. - For food-grade or potable cooling water: obtain manufacturer documentation certifying lead-free/brass alloy composition and relevant approvals (NSF/ANSI, WRAS, EU, FDA) and confirm seals are food-grade. If not available, choose a connector explicitly certified for potable/food-contact use.

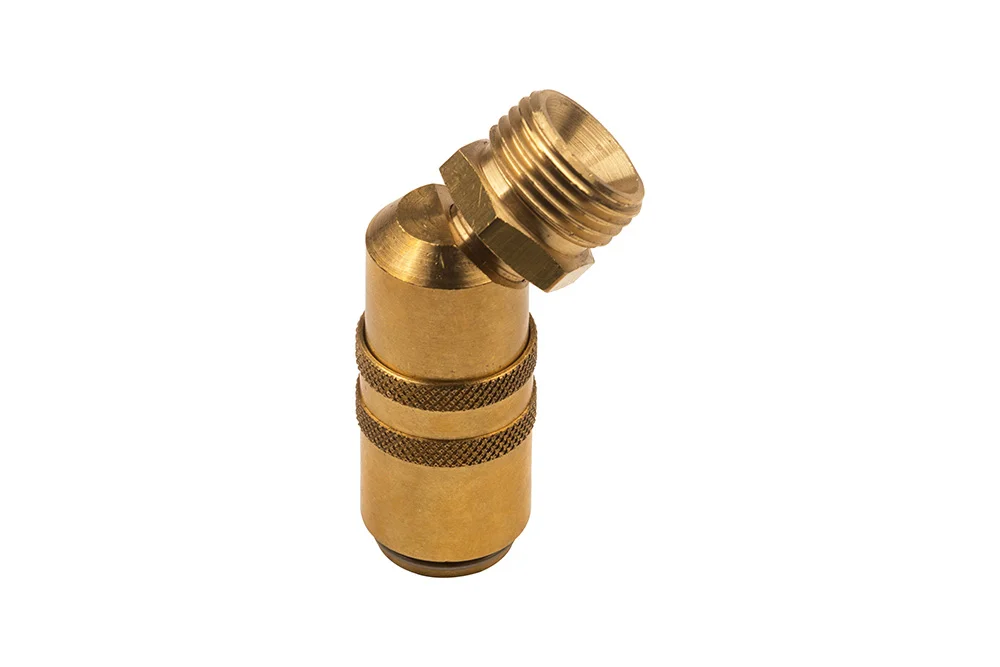

Socket 45° DN 9 quick connector with male thread, TST 090 series, brass

Additional information

Material	B – brass (bronze)

45° socket DN 9 quick coupling with external BSP and metric thread (seal on 60° cone), with or without valve. Widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. Can be used for water in cleaning machines, hot oil, steam. Flow diameter: 9 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK090-EG17-45	45° socket DN 9 with GZ 3/8" BSP, 60° cone, with valve	-	25	In stock	Enquiry
FW-CSK090-EG21-45	45° socket DN 9 with GZ 1/2" BSP, 60° cone, with valve	-	25	In stock	Enquiry
FW-CSK090-EGM16-45	45° socket DN 9 with GZ M16x1.5, 60° cone, with valve	-	25	In stock	Enquiry
FW-SK090-EG17-45	45° socket DN 9 with GZ 3/8" BSP, 60° cone, without valve	-	25	In stock	Enquiry
FW-SK090-EG21-45	45° socket DN 9 with GZ 1/2" BSP, 60° cone, without valve	-	25	In stock	Enquiry
FW-SK090-EGM16-45	45° socket DN 9 with GZ M16x1.5, 60° cone, without valve	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

45° socket DN 9 quick coupling with external BSP and metric thread (seal on 60° cone), with or without valve. Widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. Can be used for water in cleaning machines, hot oil, steam. Flow diameter: 9 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
