Can the 90Â° elbow KSBB 90, galvanized steel (R = 1.5Ãd) be installed with BC screw bridge clamps for secure suction hose connections?

Yes . the 90Â° elbow KSBB 90, galvanized steel (R = 1.5Ãd) can be installed with BC screw bridge clamps for secure suction hose connections. The product description for the KSBB series (noting KSBB 45 specifies quick and efficient installation using BC screw bridge clamps) indicates that the KSBB design and galvanized-steel construction are intended for hose-mounted connections with BC clamps. The KSBB 90 shares the same flange/hose-connection geometry and material compatibility (galvanized steel, R = 1.5Ãd), so BC screw bridge clamps will provide a reliable, tight seal and mechanically secure the suction hose to the elbow when installed correctly. Ensure clamp size matches hose/outside diameter and follow recommended tightening torque to avoid hose damage and maintain vacuum integrity.

Are BC screw bridge clamps the recommended fastening method for 90Â° elbow KSBB 90, galvanized steel to ensure leak-free suction hose joints?

Yes. For 90Â° elbow KSBB 90, galvanized steel, BC screw bridge clamps are the recommended fastening method to ensure leak-free suction hose joints. The KSBB design (R = 1.5 Ã d) and galvanized steel construction are intended for quick, efficient installation with BC screw bridge clamps, which provide uniform compression and a secure seal on suction hoses, minimizing leaks when properly installed.

Can BC screw bridge clamps be used to quickly detach and reattach 90Â° elbow KSBB 90, galvanized steel (R = 1.5Ãd) during maintenance?

Yes. BC screw bridge clamps can be used to quickly detach and reattach 90Â° elbow KSBB 90, galvanized steel (R = 1.5Ãd) during maintenance, provided a few practical checks are observed: - Compatibility: The description for the similar 90Â° elbow KSBB 45 indicates the KSBB family is designed for quick installation of suction hoses using BC screw bridge clamps. That implies KSBB 90 shares the same interface and clamp-friendly geometry; confirm the clamp seating surface on the KSBB 90 matches the clamp width and profile. - Seal and fit: Ensure the clamp provides even compression around the mating flange or sleeve to maintain the required sealing (gasket or rubber sleeve if used). BC screw bridge clamps rely on uniform pressure; misalignment or an incorrect clamp size can cause leaks or deform the galvanized edge. - Clamp size and strength: Use the correct BC clamp size rated for the KSBB 90 pipe diameter (d) and for the operating pressure and load during use. Galvanized steel elbows are robust, but the clamp must be rated for the expected mechanical and pressure conditions. - Corrosion and surface condition: Verify the galvanized surface where the clamp bears is clean and undamaged. Corrosion, heavy paint, or burrs can reduce clamp effectiveness and complicate repeated quick reattachments. - Maintenance practice: For frequent maintenance cycles, choose clamps with easy screw operation and check torque consistently to avoid over- or under-tightening. Inspect gasket(s) and clamp threads regularly. Conclusion: If the KSBB 90 flange/profile matches the BC screw bridge clamp specifications and the correct clamp size and sealing components are used, BC screw bridge clamps are suitable for quick detachment and reattachment of 90Â° elbow KSBB 90, galvanized steel (R = 1.5Ãd) during maintenance.

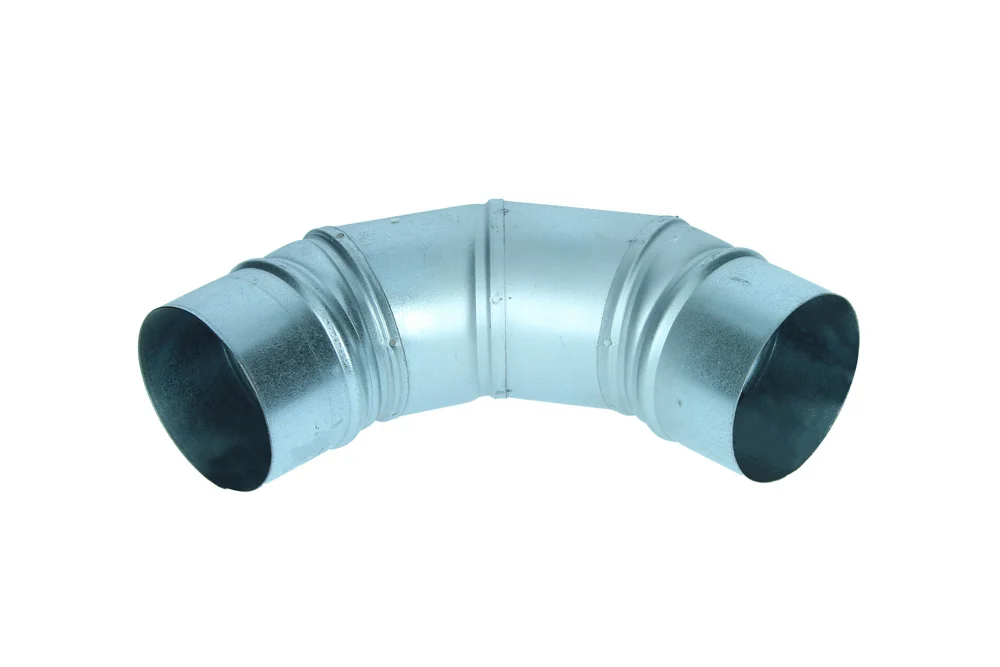

Elbow 90° KSBB 90, steel galvanized

All products, Ducting and ventilation hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	50

Elbow 90° (R = 1.5 x d) KSBB 45 intended for quick and efficient assembly of ducting hoses using BC worm-drive bridge clamps. Material: steel galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
KS-KSBB90-080-OC	Elbow 90° d = 77 mm, galvanized steel	80	-	In stock	Enquiry
KS-KSBB90-100-OC	Elbow 90° d = 97 mm, galvanized steel	100	-	In stock	Enquiry
KS-KSBB90-125-OC	Elbow 90° d = 122 mm, galvanized steel	125	-	In stock	Enquiry
KS-KSBB90-140-OC	Elbow 90° d = 137 mm, galvanized steel	140	-	In stock	Enquiry
KS-KSBB90-150-OC	Elbow 90° d = 147 mm, galvanized steel	150	-	In stock	Enquiry
KS-KSBB90-160-OC	Elbow 90° d = 157 mm, galvanized steel	160	-	In stock	Enquiry
KS-KSBB90-180-OC	Elbow 90° d = 177 mm, galvanized steel	180	-	In stock	Enquiry
KS-KSBB90-200-OC	Elbow 90° d = 197 mm, galvanized steel	200	-	In stock	Enquiry
KS-KSBB90-225-OC	Elbow 90° d = 222 mm, galvanized steel	225	-	In stock	Enquiry
KS-KSBB90-250-OC	Elbow 90° d = 247 mm, galvanized steel	250	-	In stock	Enquiry
KS-KSBB90-280-OC	Elbow 90° d = 277 mm, galvanized steel	275	-	In stock	Enquiry
KS-KSBB90-300-OC	Elbow 90° d = 297 mm, galvanized steel	300	-	In stock	Enquiry
KS-KSBB90-400-OC	Elbow 90° d = 397 mm, galvanized steel	400	-	In stock	Enquiry
KS-KSBB90-500-OC	Elbow 90° d = 497 mm, galvanized steel	500	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Elbow 90° (R = 1.5 x d) KSBB 45 intended for quick and efficient assembly of ducting hoses using BC worm-drive bridge clamps. Material: steel galvanized.
