Is the Elbow 90Â° with GW BSP, brass, type EW suitable for continuous use at pressures up to 63 bar and temperatures from -10Â°C to +90Â°C?

Yes. The Elbow 90Â° with GW BSP, brass, type EW is suitable for continuous use at pressures up to 63 bar and temperatures from -10Â°C to +90Â°C, as those values match the specified working pressure and operating temperature range for the 90Â° brass elbow with internal BSP thread. Ensure correct installation, compatible media, and regular inspection for wear or corrosion to maintain safe operation.

Can Elbow 90Â° with GW BSP, brass, type EW withstand intermittent pressure spikes above 63 bar or only steady pressures up to 63 bar?

Elbow 90Â° with GW BSP, brass, type EW Format: The specification states "Working pressure: up to 63 bar" without distinguishing between steady and intermittent spikes. In absence of explicit allowance for pressure spikes, you must assume the 63 bar rating is the maximum allowable working pressure; it is intended for continuous/operational use up to that value. Intermittent spikes above 63 bar could exceed material, thread or seal limits and risk failure. For use with pressure transients above 63 bar, consult the manufacturer for fatigue/spike ratings or select a fitting specified for higher impulse/peak pressures.

Does Elbow 90Â° with GW BSP, brass, type EW meet corrosion resistance requirements for saltwater exposure?

Elbow 90Â° with GW BSP, brass, type EW. based on the provided description (90Â° brass elbow with internal BSP thread. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10Â°C to +90Â°C), the component offers general corrosion resistance typical of brass in many environments but does not guarantee long-term resistance in saltwater exposure. Brass is susceptible to dezincification and stress corrosion in chloride-rich (saltwater) environments. Unless the brass alloy is a dezincification-resistant (DZR) grade or has a specific protective coating or surface treatment, prolonged contact with seawater will likely cause increased corrosion, material weakening, and possible leakage over time. The given data do not state DZR composition, protective plating (e.g., nickel, tin), or anti-corrosion certification for marine use. Conclusion: Elbow 90Â° with GW BSP, brass, type EW as described does not explicitly meet corrosion resistance requirements for saltwater exposure. For marine applications, request a DZR (dezincification-resistant) brass or suitable stainless steel alternative, or confirm protective treatments and relevant marine corrosion tests/certifications from the manufacturer.

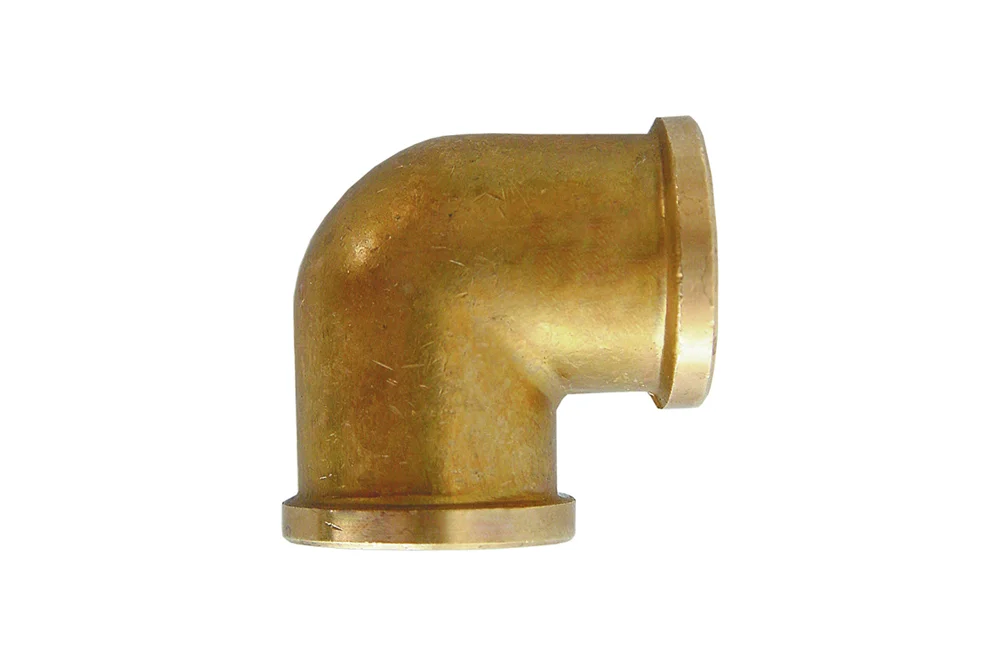

Elbow 90° with GW BSP, brass, type EW

Additional information

Material	B – brass (bronze)
Standard length [m]	10

90° brass elbow with internal BSP thread. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-MS-185182	90° elbow with 1/8" BSP female thread, brass	-	63	In stock	Enquiry
EW-MS-185183	90° elbow with 1/4" BSP female thread, brass	-	63	In stock	Enquiry
EW-MS-185185	90° elbow with 3/8" BSP female thread, brass	-	63	In stock	Enquiry
EW-MS-185187	90° elbow with 1/2" BSP female thread, brass	-	63	In stock	Enquiry
EW-MS-185188	90° elbow with 3/4" BSP female thread, brass	-	63	In stock	Enquiry
EW-MS-185189	90° elbow with 1" BSP female thread, brass	-	63	In stock	Enquiry
