Is the 90Â° hose end with GW BSP, PP plastic, PVDF, series 1A type EM compatible with silicone and TYGONÂ® hoses and reusable clamping rings?

Yes. The 90Â° hose end with GW BSP, PP plastic, PVDF, series 1A type EM is compatible with silicone and TYGONÂ® hoses. It is designed for flexible, smoothâwalled, unreinforced hoses including silicone and TYGONÂ® materials. The fitting features an integrated sleeve and a clamping ring located inside the knurled nut; the clamping ringâs flexibility allows it to be reused multiple times in the same connection. Materials: polypropylene, PVDF. Working pressure: 10 bar.

Can the 90Â° hose end with GW BSP, PP plastic, PVDF, series 1A type EM be sterilized for use in medical or pharmaceutical applications?

90Â° hose end with GW BSP, PP plastic, PVDF, series 1A type EM can be sterilized for many medical and pharmaceutical uses, but suitability depends on material and sterilization method. PVDF has excellent chemical resistance and tolerates common sterilization methods (autoclaving, ethylene oxide, gamma irradiation) better than polypropylene; PP is more limited (may warp or degrade under repeated autoclaving or high-dose irradiation). The productâs design (integrated sleeve, internal clamping ring) and compatibility with PTFE, silicone and other hygienic hoses support medical use, but reusability of the clamping ring and seals must be validated. For regulatory compliance, perform validated sterilization cycles, biocompatibility testing, and ensure the specific material grade and assembly meet applicable medical/pharmaceutical standards before clinical use.

Does the 90Â° hose end with GW BSP, PP plastic, PVDF, series 1A type EM resist common chemical sterilants used in labs?

90Â° hose end with GW BSP, PP plastic, PVDF, series 1A type EM: Yes. generally resistant to common chemical sterilants used in labs, with caveats. Powody: - Materials listed (PP and PVDF) are chemically resistant: PVDF shows excellent resistance to strong oxidizers and many solvents; PP is resistant to many acids, bases and alcohols. - Compatible hose materials include PTFE, FKM and silicone, which also tolerate many sterilants. - Working pressure 10 bar and design (integrated sleeve, reusable clamping ring) support repeated use under laboratory sterilization regimes. Ograniczenia / uwagi: - OdpornoÅÄ zaleÅ¼y od konkretnego Årodka sterylizacyjnego, jego stÄÅ¼enia, temperatury i czasu ekspozycji. PVDF toleruje np. H2O2, peroxyacetylic acid and chlorine under typical conditions better than PP; PP can be attacked by strong oxidizers at elevated temperature/concentration. - Sterilization methods like autoclaving (steam at 121â134 Â°C) may affect PP (softening) more than PVDF; repeated high-temperature cycles could degrade PP components or elastomer hoses. - Chlorinated disinfectants and high-concentration oxidizers can cause swelling or embrittlement in some hose materials (e.g., certain silicones, TYGONÂ® grades, FKM compatibility varies by formulation). - Mechanical seals (clamping ring, knurled nut) must be inspected after aggressive chemical exposure; repeated sterilization can reduce reusability. Rekomendacja: - Verify compatibility for each specific sterilant (type, concentration, temperature, exposure time) against PP, PVDF and the exact hose material grade. - For aggressive oxidizers or high-temperature sterilization prefer PVDF components and PTFE-compatible hoses; perform compatibility tests and periodic inspections.

90° hose fitting with a BSP female thread, of PP, PVDF plastic, 1A series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

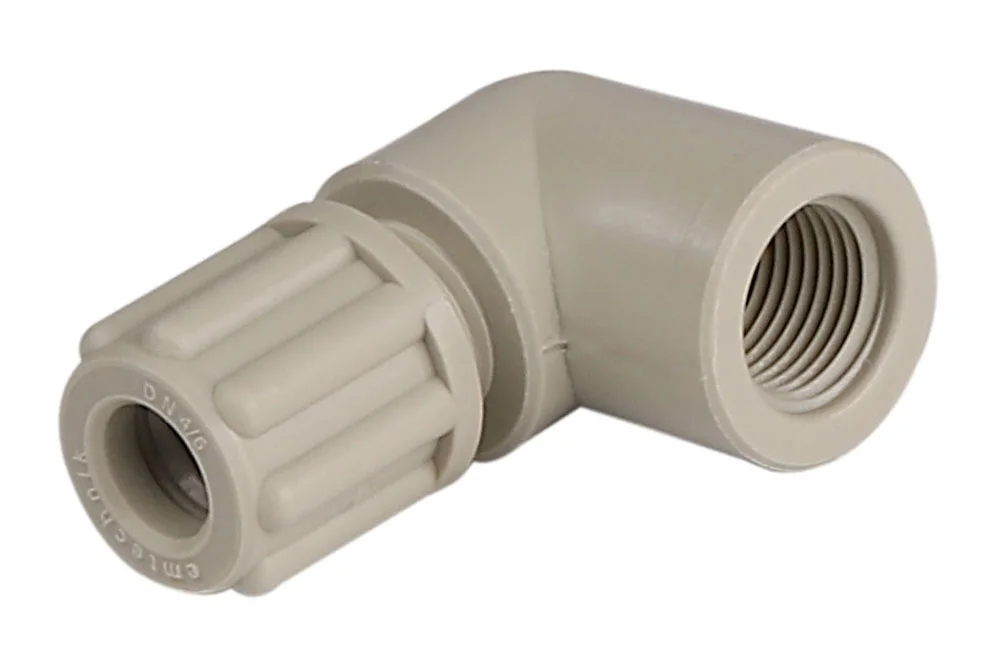

90° hose fitting with a BSP female thread type EM, is widely used in laboratories, medicine (e.g. dialysis devices), and the pharmaceutical, chemical and food industries. It has an integrated sleeve, which facilitates assembly, and the hose is locked by means of a clamping ring located inside the knurled nut. Thanks to its flexibility, the clamping ring can be used several times in the same joint. It is intended for flexible, smooth-walled, unreinforced hoses made of PVC, PA, PUR, PTFE, FKM, silicone and TYGON® hoses. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1A200FG4014PP	Fitting 90° (1A series) with 1/4" BSP female, hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1A200FG4014PV	Fitting 90° (1A series) with 1/4" BSP female, hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1A200FG4018PP	Fitting 90° (1A series) with 1/8" BSP female, hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1A200FG4018PV	Fitting 90° (1A series) with 1/8" BSP female, hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1A200FG4314PP	Fitting 90° (1A series) with 1/4" BSP female, hose 6x8 mm, polypropylene	6	10	In stock	Enquiry
EM-1A200FG4314PV	Fitting 90° (1A series) with 1/4" BSP female, hose 6x8 mm, PVDF	6	10	In stock	Enquiry
EM-1A200FG4538PP	Fitting 90° (1A series) with 3/8" BSP female, hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1A200FG4812PP	Fitting 90° (1A series) with 1/2" BSP female, hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1A200FG4812PV	Fitting 90° (1A series) with 1/2" BSP female, hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1A200FG4838PP	Fitting 90° (1A series) with 3/8" BSP female, hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1A200FG4838PV	Fitting 90° (1A series) with 3/8" BSP female, hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1A200FG5212PP	Fitting 90° (1A series) with 1/2" BSP female, hose 12x16 mm, polypropylene	12	10	In stock	Enquiry
EM-1A200FG5212PV	Fitting 90° (1A series) with 1/2" BSP female, hose 12x16 mm, PVDF	12	10	In stock	Enquiry
EM-1A200FG5612PP	Fitting 90° (1A series) with 1/2" BSP female, hose 16x20 mm, polypropylene	16	10	In stock	Enquiry
EM-1A200FG5612PV	Fitting 90° (1A series) with 1/2" BSP female, hose 16x20 mm, PVDF	16	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° hose fitting with a BSP female thread type EM, is widely used in laboratories, medicine (e.g. dialysis devices), and the pharmaceutical, chemical and food industries. It has an integrated sleeve, which facilitates assembly, and the hose is locked by means of a clamping ring located inside the knurled nut. Thanks to its flexibility, the clamping ring can be used several times in the same joint. It is intended for flexible, smooth-walled, unreinforced hoses made of PVC, PA, PUR, PTFE, FKM, silicone and TYGON® hoses. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.
