Is the BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type compatible with standard CNFH clamping sleeves for rubber and plastic industrial hoses?

Yes. The BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type is compatible with standard CNFH clamping sleeves for rubber and plastic industrial hoses. The product description explicitly states it is designed for rubber and plastic industrial hoses and is installed using the special CNFH type clamping sleeve. Made of galvanized carbon steel with an external tapered BSPT thread and a âtailâ for highâstrength hoses, it is intended to be used together with CNFH sleeves, so standard CNFH clamping sleeves are the correct match.

Can the BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type withstand pressure and temperature ranges typical for high-strength rubber and plastic hoses?

Yes. The BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type is designed specifically for rubber and plastic industrial hoses and, when installed correctly with the matching CNFH clamping sleeve, will handle the pressure and temperature ranges typical for highâstrength rubber and many plastic hoses used in industrial applications. Its carbon steel, galvanized construction provides robust mechanical strength and corrosion resistance suitable for heavyâduty service. Final suitability depends on the specific hose nominal pressure and temperature ratings-verify compatibility with the hose manufacturerâs limits and the systemâs operating conditions before use.

What inspection or maintenance is recommended for the BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type to ensure long-term performance?

Recommended inspection and maintenance for the BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type to ensure long-term performance: 1. Visual inspection frequency - Inspect before initial installation and then at regular intervals (monthly for heavy use, quarterly for moderate use) for corrosion, wear, cracks, thread damage, and deformation of the âtailâ and sealing surfaces. 2. Thread care - Check BSPT threads for burrs, galling, or thread form damage. Clean threads of debris and old sealant. Replace fitting if threads are scored or deformed to the point that a pressure-tight connection cannot be ensured. - Use appropriate thread sealant or tape compatible with the conveyed media and carbon steel. Avoid over-application that could introduce contaminants. 3. Corrosion protection - Although galvanized, inspect for loss of galvanizing, rust spots or pitting. Remove light rust with a wire brush and apply a compatible rust inhibitor or touch-up galvanizing compound. Replace fitting if corrosion is advanced or structural integrity is compromised. 4. Clamping and hose interface - Verify correct installation with the CNFH type clamping sleeve: ensure proper sleeve position, correct crimping/torque per manufacturer spec, and that the hose tail is fully engaged with no gaps. - Inspect the âtailâ for deformation or abrasion from hose movement. Ensure hose clamps are secure and there is no relative rotation or axial movement that could fatigue the joint. 5. Seal and leak checks - Perform pressure/leak tests after installation and periodically during service. Monitor for weeping or signs of leaks at the threaded joint and hose interface. Tighten connections to recommended torque; do not exceed to avoid thread damage. 6. Mechanical stress and alignment - Ensure fittings are not subjected to bending, torsion, or unsupported axial loads. Use supports, hangers, or flexible hose loops to minimize stress on the BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type. 7. Environmental and media considerations - If exposed to aggressive chemicals, salt spray, high humidity, or elevated temperatures, increase inspection frequency and consider additional corrosion protection or alternative materials. Verify compatibility of conveyed fluid with galvanized carbon steel. 8. Replacement criteria - Replace the BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type if threads are damaged, galvanizing is severely degraded, the tail is deformed, leaks persist after proper tightening, or if crimp/clamp integrity is compromised. 9. Documentation and records - Keep records of inspections, maintenance actions, leak tests, and replacements to track component life and plan proactive replacements. Following these steps will help maintain sealing integrity, mechanical reliability, and safe long-term performance of the BSPT male threaded end, carbon steel, CNPH HEAVY DUTY type.

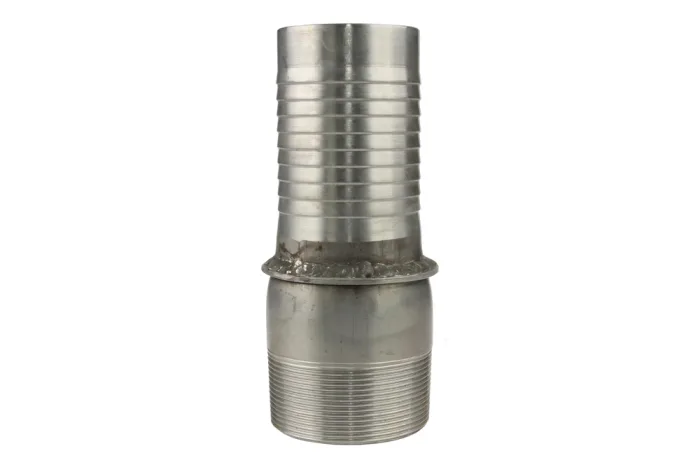

Fitting with a BSPT male thread, carbon steel, type CNPH HEAVY DUTY

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

Fitting type CNPH HEAVY DUTY terminated with a tapered BSPT male thread made of galvanized steel with a “tail” for a hose, of increased strength. Intended for rubber hoses and industrial plastic hoses. Assembly by means of special sheet-metal ferrules of the CNFH type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-CNPH-150	Fitting CNP HD with 1.1/2" BSPT male for hose 1.1/2", galvanized steel	40	50	In stock	Enquiry
AC-CNPH-200	Fitting CNP HD with 2" BSPT male for hose 2", galvanized steel	50	50	In stock	Enquiry
AC-CNPH-250	Fitting CNP HD with 2.1/2" BSPT male for hose 2.1/2", galvanized steel	65	50	In stock	Enquiry
AC-CNPH-300	Fitting CNP HD with 3" BSPT male for hose 3", galvanized steel	75	50	In stock	Enquiry
AC-CNPH-400	Fitting CNP HD with 4" BSPT male for hose 4", galvanized steel	100	30	In stock	Enquiry
AC-CNPH-500	Fitting CNP HD with 5" BSPT male for hose 5", galvanized steel	125	30	In stock	Enquiry
AC-CNPH-600	Fitting CNP HD with 6" BSPT male for hose 6", galvanized steel	150	30	In stock	Enquiry
AC-CNPH-800	Fitting CNP HD with 8" BSPT male for hose 8", galvanized steel	200	20	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting type CNPH HEAVY DUTY terminated with a tapered BSPT male thread made of galvanized steel with a “tail” for a hose, of increased strength. Intended for rubber hoses and industrial plastic hoses. Assembly by means of special sheet-metal ferrules of the CNFH type. Material: carbon steel, galvanized.
