Is the Hose end 90Â° to hose with BSP GZ of PP plastic, PVDF, 1C series type EM compatible with PTFE, PFA, FEP, PA and PE smooth-walled unreinforced hoses?

Yes. The Hose end 90Â° to hose with BSP GZ of PP plastic, PVDF, 1C series type EM is compatible with smooth-walled unreinforced hoses and tubes made from PTFE, PFA, FEP, PA and PE. It is specifically designed for such harder-material hoses: installation is by pushing the hose onto the integrated connecting sleeve, locking is via a PEEK locking ring and knurled nut, and sealing is provided by a PTFE sealing ring. Materials (PP, PVDF) and a working pressure rating of 10 bar further support suitability for these hose types.

Can the Hose end 90Â° to hose with BSP GZ of PP plastic, PVDF, 1C series type EM be autoclaved or sterilized for medical and pharmaceutical use?

Hose end 90Â° to hose with BSP GZ of PP plastic, PVDF, 1C series type EM can be sterilized, but suitability for autoclaving (steam sterilization) depends on material choice and component limits. PVDF parts tolerate autoclaving better than polypropylene; PEEK locking ring and PTFE sealing ring are autoclave-resistant. PP may deform at typical autoclave temperatures (121â134Â°C). Working pressure is 10 bar but not a validation of sterilization resistance. For medical/pharmaceutical use, validate the specific material combination (PP vs PVDF), process parameters (temperature, time, cycles) and hose substrate (PTFE, PFA, FEP, PA, PE) for compatibility. Perform manufacturer confirmation and qualification (biocompatibility, extractables/ leachables, repeated-cycle testing) before clinical or GMP use.

What is the recommended torque for tightening the knurled nut on the Hose end 90Â° to hose with BSP GZ of PP plastic, PVDF, 1C series type EM?

Hose end 90Â° to hose with BSP GZ of PP plastic, PVDF, 1C series type EM Format Recommended torque for tightening the knurled nut on the Hose end 90Â° to hose with BSP GZ of PP plastic, PVDF, 1C series type EM is typically low due to the plastic construction and PEEK locking ring. As a general guidance: - For polypropylene (PP) fittings: 2â4 Nm - For PVDF (Kynar) fittings: 3â5 Nm Tighten by hand until the knurled nut is snug, then apply the above additional torque using a torque screwdriver or torque wrench. Do not exceed these values to avoid thread or fitting damage. If sealing with PTFE ring and connecting to metal BSP male threads, use a backing wrench on the male thread and tighten the knurled nut only to the recommended torque. Always verify with manufacturer-specific data if available and perform a pressure test at the working pressure (10 bar) after assembly.

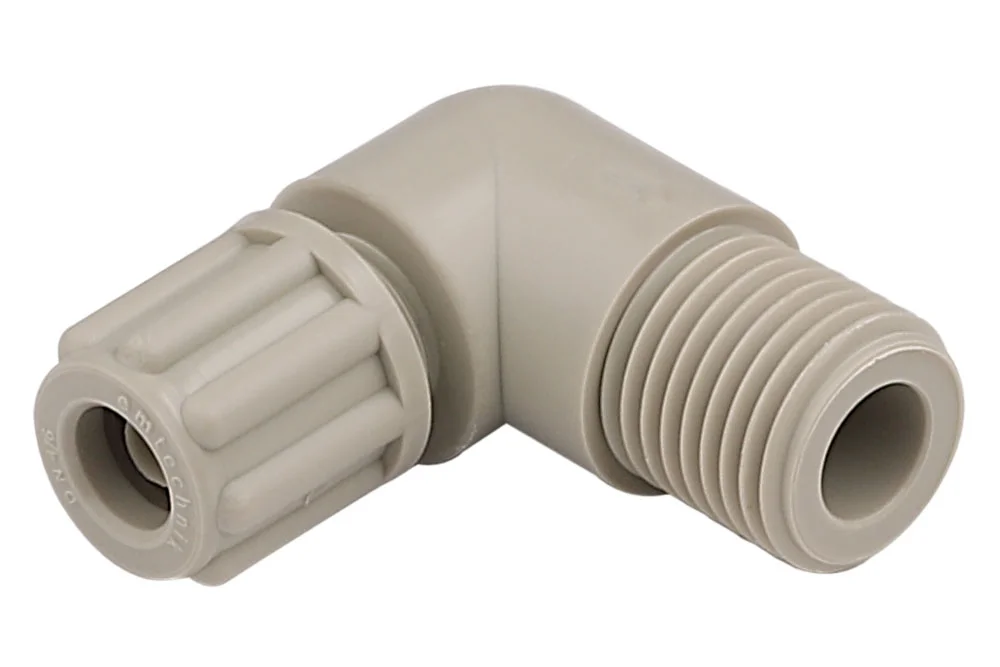

90° hose fitting with a BSP male thread of PP, PVDF plastic, 1C series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

90° hose fitting with a BSP male thread 1C series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Assembly is carried out by pushing the hose onto the integrated connecting sleeve. Locking is achieved by means of a cutting ring made of PEEK and a knurled nut. Sealing is provided by a sealing ring made of PTFE. It is intended for smooth-walled, unreinforced hoses and tubes made of harder plastics, e.g. PTFE, PFA, FEP, PA, PE. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1C200MG4018PP	Fitting 90° (1C series) with 1/8" BSP male, hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1C200MG4018PV	Fitting 90° (1C series) with 1/8" BSP male, hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1C200MG4214PP	Fitting 90° (1C series) with 1/4" BSP male, hose 5x8 mm, polypropylene	5	10	In stock	Enquiry
EM-1C200MG4214PV	Fitting 90° (1C series) with 1/4" BSP male, hose 5x8 mm, PVDF	5	10	In stock	Enquiry
EM-1C200MG4314PP	Fitting 90° (1C series) with 1/4" BSP male, hose 6x8 mm, polypropylene	6	10	In stock	Enquiry
EM-1C200MG4314PV	Fitting 90° (1C series) with 1/4" BSP male, hose 6x8 mm, PVDF	6	10	In stock	Enquiry
EM-1C200MG4512PP	Fitting 90° (1C series) with 1/2" BSP male, hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1C200MG4512PV	Fitting 90° (1C series) with 1/2" BSP male, hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1C200MG4538PP	Fitting 90° (1C series) with 3/8" BSP male, hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1C200MG4538PV	Fitting 90° (1C series) with 3/8" BSP male, hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1C200MG4812PP	Fitting 90° (1C series) with 1/2" BSP male, hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1C200MG4812PV	Fitting 90° (1C series) with 1/2" BSP male, hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1C200MG4838PP	Fitting 90° (1C series) with 3/8" BSP male, hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1C200MG4838PV	Fitting 90° (1C series) with 3/8" BSP male, hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1C200MG5112PP	Fitting 90° (1C series) with 1/2" BSP male, hose 12x14 mm, polypropylene	12	10	In stock	Enquiry
EM-1C200MG5112PV	Fitting 90° (1C series) with 1/2" BSP male, hose 12x14 mm, PVDF	12	10	In stock	Enquiry
EM-1C200MG5312PP	Fitting 90° (1C series) with 1/2" BSP male, hose 14x16 mm, polypropylene	14	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° hose fitting with a BSP male thread 1C series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Assembly is carried out by pushing the hose onto the integrated connecting sleeve. Locking is achieved by means of a cutting ring made of PEEK and a knurled nut. Sealing is provided by a sealing ring made of PTFE. It is intended for smooth-walled, unreinforced hoses and tubes made of harder plastics, e.g. PTFE, PFA, FEP, PA, PE. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.
