Is the 90Â° PUSH-IN connection with male thread, brass, type AI 58100 compatible with polyamide hoses and safe at 150 bar for lubrication fluids?

Yes. The 90Â° PUSH-IN connection with male thread, brass, type AI 58100 is specified for lubrication technology, recommends polyamide hoses, and its construction supports lubrication fluids: body is nickel-plated brass, sealing is HNBR oâring, operating temperature range â30Â°C to +150Â°C, and maximum working pressure for liquids is 150 bar. Therefore it is compatible with polyamide hoses and rated safe for lubrication fluids up to 150 bar within the stated temperature range. Ensure the hose and system fittings are rated for the same pressure and temperature, and verify chemical compatibility of the specific lubricant with HNBR.

Can the 90Â° PUSH-IN connection with male thread, brass, type AI 58100 withstand -30Â°C to +150Â°C in lubrication systems?

Yes. The 90Â° PUSH-IN connection with male thread, brass, type AI 58100 is specified for lubrication technology, uses a nickel-plated brass body and HNBR Oâring sealing, and lists an operating temperature range of -30Â°C to +150Â°C. It is therefore suitable to withstand temperatures within that range in lubrication systems, provided the connected hose is the recommended polyamide type and system pressures do not exceed the stated limits (maximum working pressure: 150 bar for liquids).

Does the 90Â° PUSH-IN connection with male thread, brass, type AI 58100 use HNBR O-rings suitable for oil-based lubricants?

Yes. The 90Â° PUSH-IN connection with male thread, brass, type AI 58100 uses an HNBR Oâring as the sealing material. HNBR (hydrogenated nitrile butadiene rubber) is commonly suitable for oil-based lubricantsâits good resistance to mineral oils, hydraulic fluids and lubricants across the stated operating temperature range (â30Â°C to +150Â°C) makes it appropriate for lubrication technology. Confirm compatibility with the specific lubricant formulation and operating conditions (temperature, pressure up to 150 bar for liquids) before final use.

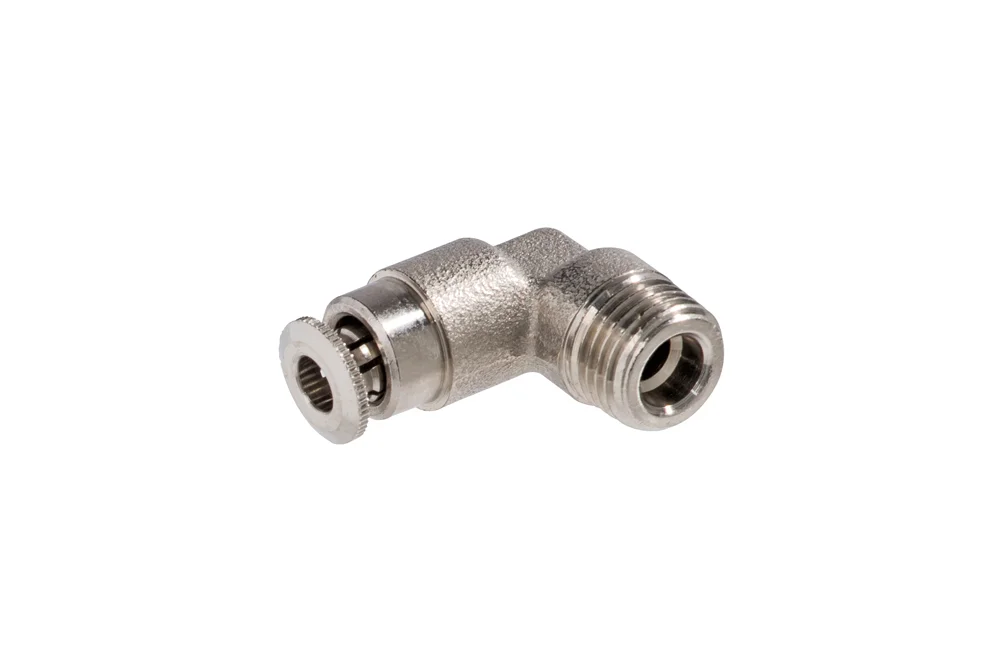

90° PUSH-IN connection with male thread, brass, type AI 58100

Additional information

Material	B – brass (bronze)

90° PUSH-IN connector for hose with external BSPT or metric thread. For use in lubrication technology. The recommended material for connected hoses is polyamide. Body material: nickel-plated brass. Sealing material: o-ring (HNBR). Operating temperature: from -30°C to +150°C. Maximum working pressure: 150 bar (for liquids), 30 bar (for air).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-58100-04-02	Push-in angle connector hose 4 mm, GZ BSPT 1/8"	-	150	In stock	Enquiry
AI-58100-04-M10	Push-in angle connector hose 4 mm, GZ M10x1 tapered	-	150	In stock	Enquiry
AI-58100-04-M6	Push-in angle connector hose 4 mm, GZ M6x1 tapered	-	150	In stock	Enquiry
AI-58100-04-M8	Push-in angle connector hose 4 mm, GZ M8x1 tapered	-	150	In stock	Enquiry
AI-58100-06-02	Angle connector PUSH-IN hose 6 mm, GZ BSPT 1/8"	-	150	In stock	Enquiry
AI-58100-06-M10	Push-in angle connector hose 6 mm, GZ M10x1 tapered	-	150	In stock	Enquiry
AI-58100-06-M6	Push-in angle connector hose 6 mm, GZ M6x1 tapered	-	150	In stock	Enquiry
AI-58100-06-M8	Push-in angle connector hose 6 mm, GZ M8x1 tapered	-	150	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° PUSH-IN connector for hose with external BSPT or metric thread. For use in lubrication technology. The recommended material for connected hoses is polyamide. Body material: nickel-plated brass. Sealing material: o-ring (HNBR). Operating temperature: from -30°C to +150°C. Maximum working pressure: 150 bar (for liquids), 30 bar (for air).
