Can the 90Â° quick connect plug for injection molds with hose end without valve, EATON J70000 series, be used with both water and oil at 15 bar and up to 200Â°C?

Yes . the 90Â° quick connect plug for injection molds with hose end without valve, EATON J70000 series, is specified for cooling and thermostating injection molds with both water and oil. Its construction (nickel-plated brass body with Viton sealing) and listed working pressure of 15 bar support use at that pressure. The operating temperature rating is -15Â°C to +200Â°C, so use with fluids up to 200Â°C is within the stated limit. Note one caveat in the product data: when sockets are fitted with identifying rings, the allowable operating temperature for the assembly is limited to +110Â°C. If your application involves sockets with such rings, do not exceed +110Â°C; otherwise the plug itself is rated to +200Â°C.

Does the 90Â° quick connect plug for injection molds with hose end without valve, EATON J70000 series, require special maintenance for use with water vs oil?

The 90Â° quick connect plug for injection molds with hose end without valve, EATON J70000 series, does not require different routine maintenance for water versus oil beyond standard practices. Because it is nickelâplated brass with Viton seals and rated to 15 bar and â15Â°C to +200Â°C (note: when used with identifying rings for sockets the max operating temperature is +110Â°C), you should: - Rinse/flush and drain after switching fluids to avoid crossâcontamination (especially when changing between oil and water). - Inspect and replace Viton seals if you see swelling, hardening, cuts or leakage-Viton is compatible with many oils and water but can degrade with certain chemicals. - Check nickelâplated surfaces for corrosion or deposits and clean as needed. - Verify connections and pressure rating before use and ensure operating temperature limits are respected. No special separate maintenance regime is mandated specifically for water vs oil beyond these precautions.

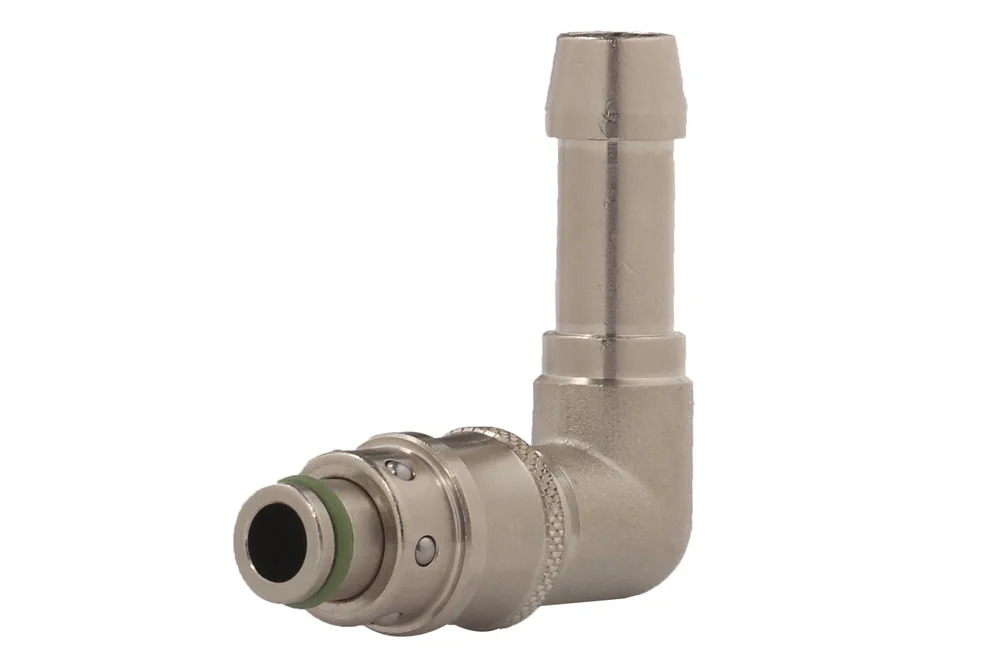

90° quick connect plug for injection molds with hose end without valve, EATON J70000 series

Q: Is the 90Â° quick connect plug for injection molds with hose end without valve, EATON J70000 series, compatible with seals at temperatures up to 200Â°C?

Yes. The 90Â° quick connect plug for injection molds with hose end without valve, EATON J70000 series uses Viton (FKM) seals and has an operating temperature range up to +200Â°C, so the seals are compatible with temperatures up to 200Â°C. Note: if identifying rings for sockets are used, the specified operating temperature is limited to +110Â°C.

90° quick connect plug for injection molds with hose end without valve, EATON J70000 series

Additional information

Material	B – brass (bronze)

90° quick coupling plug EATON series J70000 with hose end without valve. Designed for cooling and thermostating injection molds, for water and oil. Material: nickel-plated brass. Sealing: viton. Working pressure: 15 bar. Operating temperature: -15°C to +200°C (when using identifying rings for sockets, operating temperature up to +110°C).

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TH-JL7088201	90° plug DN 8 with end for 10 mm hose, without valve	10	15
TH-JL7088212	90° plug DN 8 with end for 12 mm hose, without valve	12	15
TH-JL7088289	90° plug DN 8 with end for 8 mm hose, without valve	8	15

90° quick coupling plug EATON series J70000 with hose end without valve. Designed for cooling and thermostating injection molds, for water and oil. Material: nickel-plated brass. Sealing: viton. Working pressure: 15 bar. Operating temperature: -15°C to +200°C (when using identifying rings for sockets, operating temperature up to +110°C).
