Is Socket 90Â° DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass suitable for use with steam at 200Â°C and 25 bar?

Yes. Socket 90Â° DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass is suitable for steam at 200Â°C and 25 bar. The product spec explicitly lists steam among compatible media, a working pressure of 25 bar, and an operating temperature range up to +200Â°C (with Viton), and materials (brass body, stainless steel spring/balls) appropriate for such service. Ensure the hose, fittings downstream, seals, and system safety measures are also rated for 200Â°C steam and 25 bar before installation.

Can Socket 90Â° DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass be used for hot oil at 200Â°C and 25 bar?

Yes. Socket 90Â° DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass is rated for working pressure up to 25 bar and an operating temperature range up to +200Â°C (with Viton seals). The product description explicitly states it can be used for hot oil and steam. Ensure your specific hot oil media and continuous operating conditions are compatible with Viton and brass (chemistry, oxidation) and verify hose and system components are rated for 200Â°C and 25 bar. If exposure exceeds 200Â°C, involves aggressive fluids incompatible with Viton/brass, or requires additional safety margins, consult the manufacturer for confirmation or select a higher-specification coupling.

Can Socket 90Â° DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass be used for high-pressure water cleaning at 25 bar?

Yes. Socket 90Â° DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass can be used for high-pressure water cleaning at 25 bar. The product specification lists a working pressure of 25 bar and explicitly states suitability for water (including cleaning machines). Materials (brass body and connection, stainless steel spring/balls, Viton option for seals) and an operating temperature range of -20Â°C to +200Â°C support use with hot water as well. Ensure correct hose assembly for the PUSH-ON tail, verify fittings and clamps are secure, and confirm compatibility of the entire system (hoses, pumps, and accessories) with 25 bar operating pressure and intended temperatures before use.

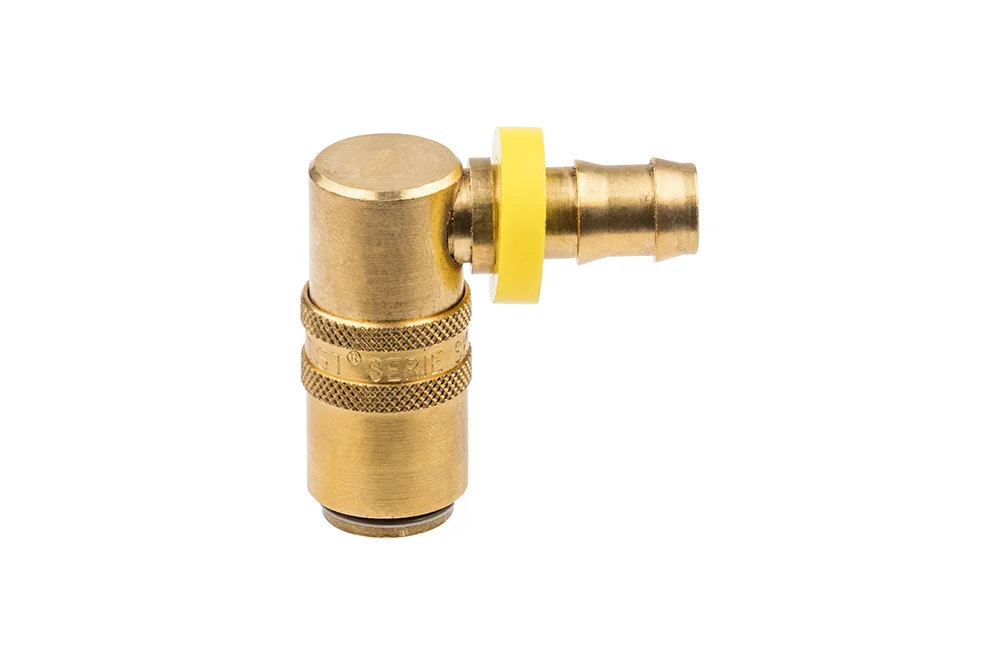

Socket 90° DN 9 quick coupling with PUSH-ON hose end, TST 090 series, brass

Additional information

Material	B – brass (bronze)

90° socket DN 9 quick coupling with “tail” for PUSH-ON hose, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 9 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK090-FG10-90	90° socket DN 9 with end for PUSH-ON hose 10 mm, with valve	10	25	In stock	Enquiry
FW-CSK090-FG13-90	90° socket DN 9 with end for PUSH-ON hose 12.7 mm, with valve	12	25	In stock	Enquiry
FW-SK090-FG10-90	90° socket DN 9 with end for PUSH-ON hose 10 mm, without valve	10	25	In stock	Enquiry
FW-SK090-FG13-90	90° socket DN 9 with end for PUSH-ON hose 12.7 mm, without valve	12	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° socket DN 9 quick coupling with “tail” for PUSH-ON hose, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. It can be used for water in cleaning machines, hot oil, and steam. Flow diameter: 9 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (socket body, connection, valve sleeve), stainless steel (spring, ring, balls).
