Is the Adaptor - cap with GW BSP, carbon steel, type A112 compatible with standard BSP internal threads and 60Â° cone sealed rotating nuts?

Yes. The Adaptor - cap with GW BSP, carbon steel, type A112 is compatible with standard BSP internal threads and 60Â° cone sealed rotating nuts. The product description states it is a high-pressure plug type A112 with internal BSP thread and a rotating nut featuring a 60Â° cone seal, made of galvanized carbon steel . which matches the standard BSP internal thread profile and the 60Â° cone sealing geometry used on rotating nuts.

Does the Adaptor - cap with GW BSP, carbon steel, type A112 include a rotating nut and 60Â° cone sealing for high-pressure applications?

Yes. Adaptor - cap with GW BSP, carbon steel, type A112 includes a rotating nut and a 60Â° cone seal for high-pressure applications, as described for the high-pressure plug type A112 with internal BSP thread, rotating nut (60Â° cone seal). Material: carbon steel, galvanized.

Does the Adaptor - cap with GW BSP, carbon steel, type A112 require specific torque for its rotating nut to ensure a 60Â° cone seal?

Adaptor - cap with GW BSP, carbon steel, type A112 Format: Yes. the rotating nut on the Adaptor - cap with GW BSP, carbon steel, type A112 Format requires controlled tightening to form a reliable 60Â° cone seal, but the product description alone (carbon steel, galvanized, rotating nut, 60Â° cone seal) does not specify a numeric torque value. Why: the 60Â° cone seal depends on proper axial compression and seating of the cone surfaces; insufficient torque can leak, excessive torque can deform threads or cone, damage plating, or make future removal difficult. The correct torque depends on variables not given in the description: thread size and class, surface finish, lubrication/galvanizing condition, mating fitting geometry, and pressure/temperature service. Recommended actions: - Consult the manufacturerâs technical datasheet or installation instructions for the exact torque specification for the specific thread size and material batch. - If manufacturer data unavailable, use standard torque guidelines for BSP threads of the same diameter and material, adjusted for galvanized surface (typically reduce torque or use appropriate lubrication factors), and verify seal by pressure testing. - During installation, tighten to recommended torque incrementally and perform a leak test at working pressure; if a torque spec cannot be obtained, tighten until positive cone engagement is achieved and confirm with pressure/leak test rather than relying on feel alone. In short: controlled torque is required for a proper 60Â° cone seal, but the exact torque value is not provided in the given description and must be obtained from the manufacturer or derived from standard BSP torque tables and verified by testing.

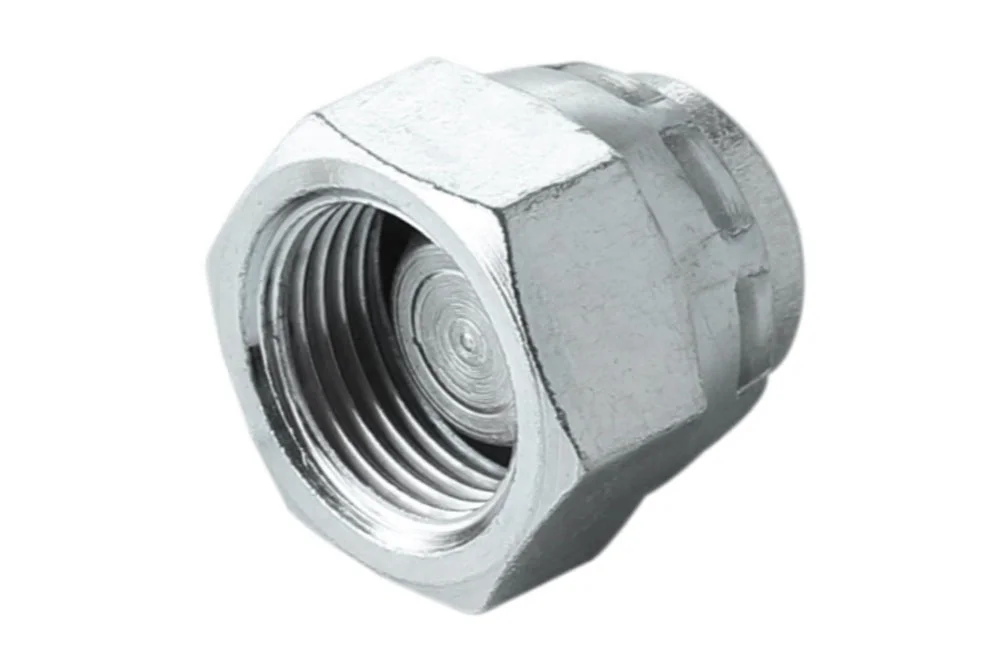

Adaptor – cap with GW BSP, carbon steel, type A112

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adaptor – high-pressure plug type A112 with internal BSP thread, with a rotating nut (60° cone seal). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A112-02	Blind plug G1/8 BSP	-	400	In stock	Enquiry
TI-A112-04	Blind plug G 1/4"	-	400	In stock	Enquiry
TI-A112-06	Blind plug G 3/8"	-	400	In stock	Enquiry
TI-A112-08	Blind plug G1/2"	-	350	In stock	Enquiry
TI-A112-10	Blind plug G1/2 BSP 5/8"	-	350	In stock	Enquiry
TI-A112-12	Blind plug G 3/4 BSP	-	315	In stock	Enquiry
TI-A112-16	Blind plug G1 BSP 1	-	250	In stock	Enquiry
TI-A112-20	Blind plug G1/4 BSP 1.1/4	-	200	In stock	Enquiry
TI-A112-24	Blind plug G1/2 BSP 1.1/2	-	160	In stock	Enquiry
TI-A112-32	Blind plug G1 BSP 2	-	125	In stock	Enquiry
TI-A112-40	Blind plug GW BSP 2.1/2"	-		In stock	Enquiry
