Is the Adaptor - reduction from GZ BSPT x GW BSP, carbon steel, type A103T suitable for high-pressure applications and compatible with standard BSPT/BSP fittings?

Adaptor - reduction from GZ BSPT x GW BSP, carbon steel, type A103T is designed as a high-pressure adaptor with an external BSPT thread (seal on the thread) and an internal BSP thread. The carbon steel construction with galvanised finish provides good mechanical strength and corrosion resistance for many industrial environments. Because the external BSPT thread seals on the taper, it is suitable for pressure-tight joints when properly assembled with appropriate thread sealant (PTFE tape or joint compound) and tightened to recommended torque. Compatibility: It mates an external BSPT (tapered, male) to an internal BSP (parallel, female) thread, so it is compatible with standard BSPT and BSP fittings of matching sizes and thread standards. Ensure thread size and class match the mating components. Limitations: âHigh-pressureâ capability depends on specific pressure ratings not provided in the description. Carbon steel A103T will handle higher pressures than many non-metal alternatives, but you must verify the adaptorâs maximum allowable working pressure (MAWP), temperature limits, and the pressure rating of the mating fittings and sealant for your application. For critical or extreme-pressure systems, consult the manufacturerâs datasheet or pressure specifications and follow applicable installation and safety standards.

Does the Adaptor - reduction from GZ BSPT x GW BSP, carbon steel, type A103T require thread sealant despite having a seal on the BSPT thread?

Adaptor - reduction from GZ BSPT x GW BSP, carbon steel, type A103T Format already has a seal on the external BSPT thread. In most cases this integrated seal is sufficient and additional thread sealant is not required. However, if the fitting will be used under extreme pressure, vibration, aggressive media, or regulatory/installation-specific requirements demand extra assurance against leakage, a compatible thread sealant (PTFE tape or pipe dope suitable for BSPT and the media) can be applied carefully to the male threads without disturbing the factory seal. Always follow system pressure ratings and manufacturer or site installation guidelines.

Can the Adaptor - reduction from GZ BSPT x GW BSP, carbon steel, type A103T be used with potable water systems?

Adaptor - reduction from GZ BSPT x GW BSP, carbon steel, type A103T is described as a high-pressure adaptor with external BSPT thread (seal on the thread) and internal BSP thread, made of carbon steel, galvanized. This construction and coating do not guarantee suitability for potable (drinking) water systems. Carbon steel can corrode and leach iron and other contaminants over time; galvanization (zinc coating) may also release zinc or harbor lead impurities depending on plating quality. Additionally, the thread seal on BSPT fittings typically relies on thread deformation or sealants (PTFE tape, pipe dope) rather than a dedicated potable-water-approved sealing material. For potable water use you must confirm compliance with relevant drinking-water standards (e.g., NSF/ANSI 61, EN 1483, local regulations) and manufacturer certification stating the specific part is approved for drinking water. Without explicit certification or use of materials explicitly rated for potable water (e.g., stainless steel grades or approved lead-free brass), do not assume the Adaptor - reduction from GZ BSPT x GW BSP, carbon steel, type A103T is safe for potable water systems.

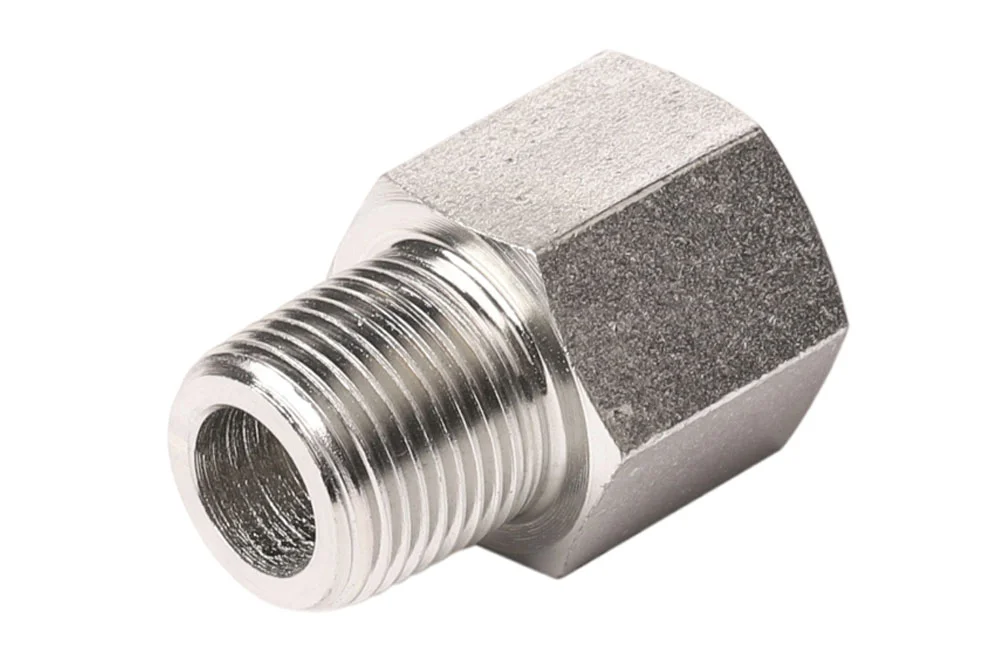

Adapter – reducer BSPT male x BSP female, carbon steel, type A103T

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure adapter type A103T with BSPT male thread (thread sealing) and with BSP female thread. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A103T-04-04	Adapter 1/4" BSPT male / 1/4" BSP female	-	350	In stock	Enquiry
TI-A103T-04-06	Adapter 1/4" BSPT male / 3/8" BSP female	-	250	In stock	Enquiry
TI-A103T-06-06	Adapter 3/8" BSPT male / 3/8" BSP female	-	250	In stock	Enquiry
TI-A103T-06-08	Adapter 3/8" BSPT male / 1/2" BSP female	-	225	In stock	Enquiry
TI-A103T-08-08	Adapter 1/2" BSPT male / 1/2" BSP female	-	225	In stock	Enquiry
TI-A103T-08-12	Adapter 1/2" BSPT male / 3/4" BSP female	-	200	In stock	Enquiry
TI-A103T-12-12	Adapter 3/4" BSPT male / 3/4" BSP female	-	200	In stock	Enquiry
TI-A103T-12-16	Adapter 3/4" BSPT male / 1" BSP female	-	160	In stock	Enquiry
TI-A103T-16-16	Adapter 1" BSPT male / 1" BSP female	-	160	In stock	Enquiry
