Is the Adaptor for UHP with GZ, black galvanized steel, type 199501601 compatible with standard UHP quick couplings and hoses at 3000 bar?

Yes. The Adaptor for UHP with GZ, black galvanized steel, type 199501601 is compatible with standard UHP quick couplings and UHP hoses rated for 3000 bar. The description states it has external BSP threads with 120Â° external cone sealing designed to allow connection of quick couplings and UHP hoses to each other and to UHP connection blocks, is made of black galvanized steel, and is rated for a working pressure of 3000 bar.matching standard UHP components at that pressure.

Can Adaptor for UHP with GZ, black galvanized steel, type 199501601 be used to join two UHP hoses directly at 3000 bar?

Yes. Adaptor for UHP with GZ, black galvanized steel, type 199501601 is described as having external BSP threads with 120Â° cone sealing on both ends and a working pressure of 3000 bar, allowing connection of quick couplings and UHP hoses to each other as well as to UHP connection blocks. Based on that description, it can be used to join two UHP hoses directly at 3000 bar provided the hoses and their fittings are compatible with BSP threads, 120Â° cone sealing, and rated for 3000 bar. Ensure proper assembly, correct torque, thread sealant if required, and inspect for certification/compatibility with your system before use.

Does Adaptor for UHP with GZ, black galvanized steel, type 199501601 support connecting to UHP connection blocks at 3000 bar?

Yes. Adaptor for UHP with GZ, black galvanized steel, type 199501601 supports connecting to UHP connection blocks at 3000 bar. The description specifies external BSP threads with 120Â° cone sealing designed to allow connection of quick couplings and UHP hoses to each other and to UHP connection blocks, is made of black galvanized steel, and lists a working pressure of 3000 bar.

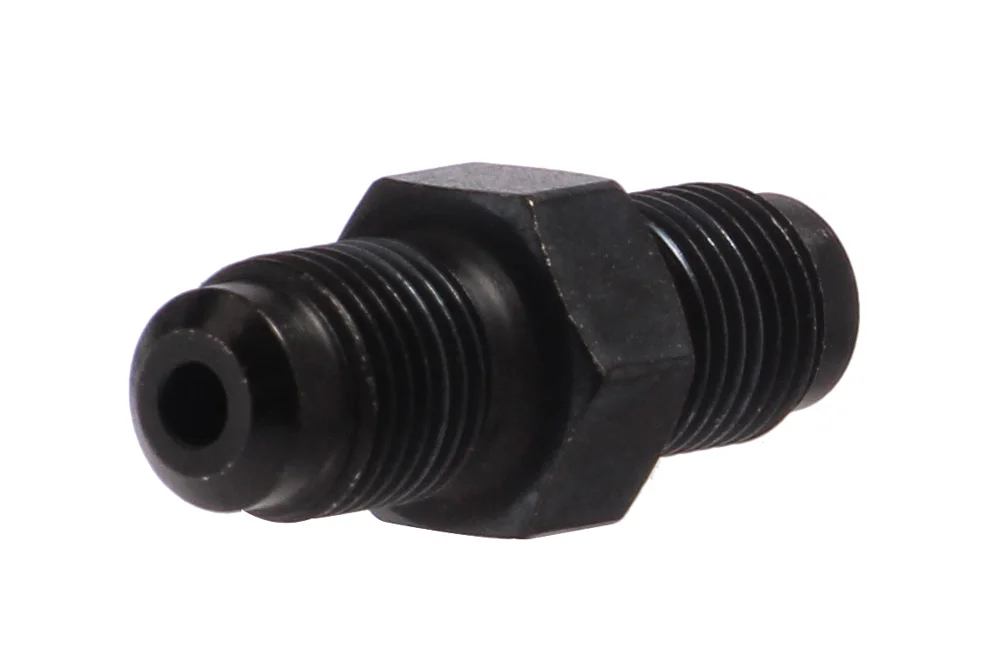

Adaptor for UHP with GZ, black galvanized steel, type 199501601

All products, UHP adapters and accessories/

Additional information

Material	CS – steel (cast iron)

Adapter with external BSP thread (sealing on external cone 120°) and external BSP thread (sealing on external cone 120°) allowing the connection of quick couplings and UHP hoses to each other, as well as connecting them to UHP connection blocks. Material: black galvanized steel. Working pressure: 3000 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-HP-199501601	Adaptor GZ 1/4" st.120° / GZ 1/4" st. 120°, 3000 bar	-	3000	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter with external BSP thread (sealing on external cone 120°) and external BSP thread (sealing on external cone 120°) allowing the connection of quick couplings and UHP hoses to each other, as well as connecting them to UHP connection blocks. Material: black galvanized steel. Working pressure: 3000 bar.
