Can Adaptor for UHP with GZ, black galvanized steel, type 199501604 be used interchangeably with other UHP adapters rated 1500 bar for quick couplings and connection blocks?

Adaptor for UHP with GZ, black galvanized steel, type 199501604 can be used interchangeably with other UHP adapters rated 1500 bar only if the mating threads, sealing faces and coupling types match exactly. This adaptor has an external BSP thread sealing on an internal 60Â° cone and an external BSPT thread sealing on the thread. Therefore it is compatible with quick couplings, UHP hoses and connection blocks that accept BSP cone seals and BSPT thread seals and are rated for 1500 bar. It is not directly interchangeable with adapters that use different thread standards (e.g., NPT, metric BSPP/BSPT mixtures without the cone), different sealing methods, or different coupling geometries even if they share the 1500 bar rating. Always verify thread type, seal form, and mechanical fit and follow manufacturer pressure and safety guidelines before substitution.

Does Adaptor for UHP with GZ, black galvanized steel, type 199501604 require specific quick coupler types for reliable 1500 bar sealing?

Adaptor for UHP with GZ, black galvanized steel, type 199501604 does require compatible quick coupler types for reliable 1500 bar sealing. The adapter provides an external BSP thread sealing on an internal 60Â° cone and an external BSPT thread sealing on the thread; therefore quick couplers must match these sealing interfaces (60Â° cone for BSP-cone connections or BSPT thread form where seal is on the thread) and be rated for 1500 bar. Use only couplers specified for UHP service and matching thread/seal geometry and pressure rating to ensure leak-free, safe operation.

Is Adaptor for UHP with GZ, black galvanized steel, type 199501604 compatible with BSPT-threaded UHP hoses?

Yes. Adaptor for UHP with GZ, black galvanized steel, type 199501604 is compatible with BSPT-threaded UHP hoses. The product description states it has an external BSP thread (seal on internal 60Â° cone) and an external BSPT thread (seal on thread), specifically enabling the connection of quick couplings and UHP hoses to each other and to UHP connection blocks. Material and working pressure (black galvanized steel, 1500 bar) confirm suitability for UHP applications.

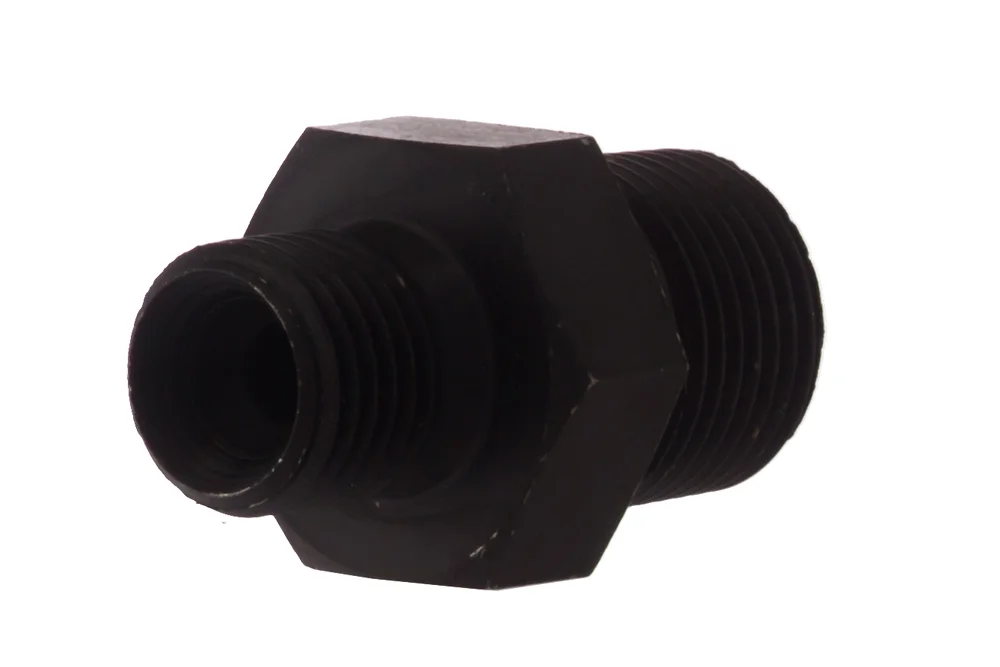

Adapter for UHP with male, black-zinc-plated steel, type 199501604

All products, UHP adapters and accessories/

Additional information

Material	CS – steel (cast iron)

Adapter with a BSP male thread (sealing on the internal 60° cone) and BSPT male thread (sealing on the thread) allowing UHP quick couplings and hoses to be joined together, as well as connected to UHP connection blocks. Material: black-zinc-plated steel. Working pressure: 1500 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-HP-199501604	Adapter 1/4" male 60° cone / 3/8" BSPT male, 1500 bar	-	1500	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter with a BSP male thread (sealing on the internal 60° cone) and BSPT male thread (sealing on the thread) allowing UHP quick couplings and hoses to be joined together, as well as connected to UHP connection blocks. Material: black-zinc-plated steel. Working pressure: 1500 bar.
