Does the Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 support both 60Â° cone seal BSP and metric external threads under high pressure?

Yes. The Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 is designed with external BSP threads and external metric threads, both featuring 60Â° cone seals, and is specified as a high-pressure adaptor made of galvanized carbon steel. Therefore it supports both 60Â° cone seal BSP and 60Â° cone seal metric external threads under high-pressure conditions.

Is the Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 suitable for high-pressure systems using 60Â° cone seal BSP and metric external threads?

Yes. Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 is suitable for high-pressure systems that use 60Â° cone seal BSP and metric external threads. It features external BSP (60Â° cone) and external metric (60Â° cone) threads and is made of galvanized carbon steel, which provides the strength and corrosion resistance required for high-pressure applications. Ensure thread sizes, pressure ratings, and compatibility with system media and temperature are matched to your specific system specifications before installation.

Can the Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 be used with 60Â° cone seal fittings in corrosive environments?

Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 is designed for 60Â° cone seal fittings (both BSP and metric external threads). However, its materialâcarbon steel, galvanizedâlimits suitability in corrosive environments. Zinc galvanizing provides some corrosion resistance for mild conditions, but it is generally inadequate for aggressive chemical, marine, or high-humidity environments where pitting, galvanic corrosion, or rapid coating breakdown can occur. Additionally, the effectiveness of the 60Â° cone seal depends on precise surface integrity; corrosion can compromise sealing surfaces and lead to leaks. Recommendation: - For mildly corrosive atmospheres and intermittent exposure, it may be acceptable with regular inspection and maintenance. - For persistent, aggressive, or marine corrosive environments, choose corrosion-resistant materials (stainless steel grades like 316/316L, duplex, or specially coated options) rated for the specific media and conditions. - Verify compatibility with the fluid, temperature, pressure, and any regulatory requirements; perform corrosion allowance calculations or consult manufacturer datasheets for long-term use. In summary, Adaptor - nipple GZ BSP x GZ METRIC, carbon steel, type A601 can be used with 60Â° cone seal fittings but is not recommended for corrosive environments without additional protective measures or alternative materials.

Adaptor – nipple GZ BSP x GZ METRIC, carbon steel, type A601

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 2

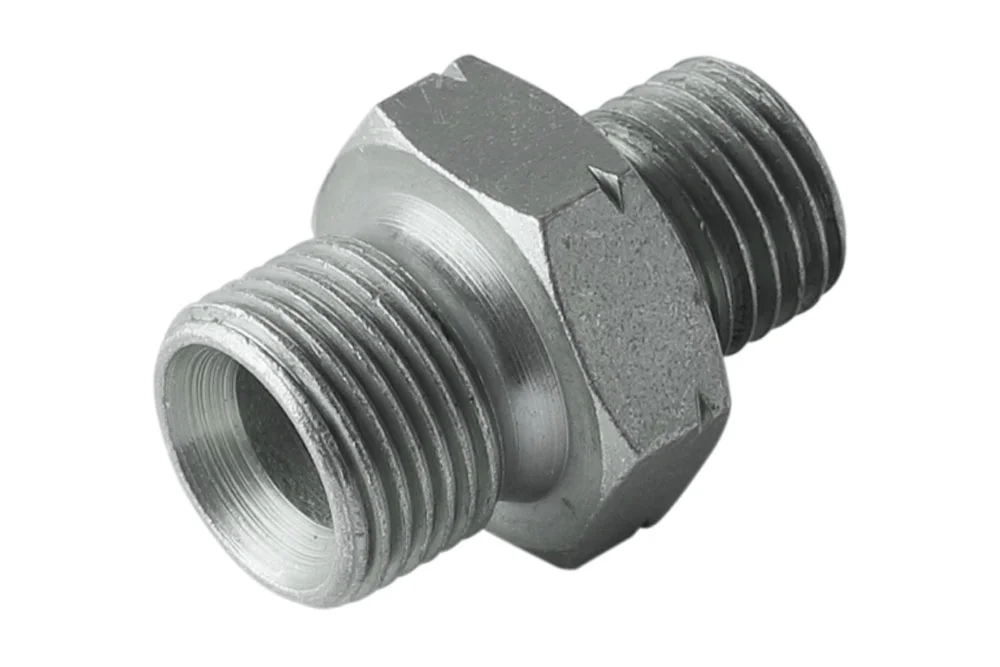

High-pressure adaptor type A601 with external BSP threads (60° cone seal) and external metric threads (60° cone seal). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A601-04-12	Adaptor GZ BSP 1/4" / GZ M12x1.5	-	400	In stock	Enquiry
TI-A601-04-14	Adapter GZ BSP 1/4" / GZ M14x1.5	-	400	In stock	Enquiry
TI-A601-06-14	Adapter GZ BSP 3/8" / GZ M14x1.5	-	400	In stock	Enquiry
TI-A601-06-16	Adapter GZ BSP 3/8" / GZ M16x1.5	-	400	In stock	Enquiry
TI-A601-06-18	Adapter GZ BSP 3/8" / GZ M18x1.5	-	400	In stock	Enquiry
TI-A601-08-18	Adapter GZ BSP 1/2" / GZ M18x1.5	-	350	In stock	Enquiry
TI-A601-08-20	Adaptor GZ BSP 1/2" / GZ M20x1.5	-	350	In stock	Enquiry
TI-A601-08-22	Adapter GZ BSP 1/2" / GZ M22x1.5	-	350	In stock	Enquiry
TI-A601-12-22	Adapter GZ BSP 3/4" / GZ M22x1.5	-	315	In stock	Enquiry
TI-A601-12-24	Adapter GZ BSP 3/4" / GZ M24x1.5	-	315	In stock	Enquiry
TI-A601-12-26	Adapter GZ BSP 3/4" / GZ M26x1.5	-	315	In stock	Enquiry
TI-A601-16-30	Adapter GZ BSP 1" / GZ M30x1.5	-	250	In stock	Enquiry
TI-A601-16-38	Adapter GZ BSP 1" / GZ M38x1.5	-	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adaptor type A601 with external BSP threads (60° cone seal) and external metric threads (60° cone seal). Material: carbon steel, galvanized.
