Is the Adaptor - hydraulic tee with GW BSP/2 x GZ BSP, carbon steel, type A127 suitable for high-pressure hydraulic systems with 60Â° cone BSP connections?

Yes. The Adaptor - hydraulic tee with GW BSP/2 x GZ BSP, carbon steel, type A127 described as "high-pressure tee, type A127 with internal BSP thread (60Â° cone seal) and 2 x external BSP threads (60Â° cone seal). Material: carbon steel, galvanized" is suitable for high-pressure hydraulic systems that use BSP connections with 60Â° cone seals. Reasoning: all three ports use BSP 60Â° cone sealing (internal female and two external male), ensuring compatible metal-to-metal cone seals; carbon steel construction with galvanization provides the strength and corrosion resistance typical for highâpressure hydraulic fittings. Ensure that the specific pressure rating of the type A127 tee matches your systemâs working and peak pressures, and verify thread size, torque and any applicable standards (e.g., ISO/BS) before installation.

Does the Adaptor - hydraulic tee with GW BSP/2 x GZ BSP, carbon steel, type A127 support 60Â° cone BSP seals for high-pressure applications?

Yes. Adaptor - hydraulic tee with GW BSP/2 x GZ BSP, carbon steel, type A127 supports 60Â° cone BSP seals for highâpressure applications. The product description specifies an internal BSP thread with 60Â° cone seal and two external BSP threads with 60Â° cone seals, and it is made of carbon steel (galvanized), suitable for highâpressure use when installed per specifications.

Can the Adaptor - hydraulic tee with GW BSP/2 x GZ BSP, carbon steel, type A127 be used with 60Â° cone BSP fittings in corrosive environments?

Yesâwith important limitations. The Adaptor - hydraulic tee with GW BSP/2 x GZ BSP, carbon steel, type A127 is designed with 60Â° cone BSP seals on both the internal and external threads and is therefore mechanically compatible with other BSP fittings that use a 60Â° cone sealing face. However, suitability for use in corrosive environments depends on more than sealing geometry: - Material: The adaptor is carbon steel, galvanized. Zinc galvanizing offers limited corrosion protection but is not suitable for aggressive or long-term exposure to many corrosive media (chlorides, acids, marine atmospheres, alkaline solutions). In such environments the galvanic layer can degrade, exposing base steel to corrosion. - Application conditions: Temperature, pressure, fluid chemistry, exposure duration, and presence of solids or stray electrical currents all affect corrosion performance. High pressures and dynamic conditions increase the risk if protective coating fails. - Compatibility with mating fittings: Even if mating fittings are 60Â° cone BSP, if they are of dissimilar metals (e.g., stainless steel) galvanic corrosion may occur at the contact points. Sealing integrity can be compromised as coatings wear. Recommendations: - For mildly corrosive, short-term, or indoor applications the adaptor may be acceptable if periodic inspection/maintenance is possible. - For aggressive, marine, chemical, high-humidity, or long-term installations, choose a corrosion-resistant material (e.g., stainless steel) or a suitably coated/treated part rated for the specific environment. - Verify compatibility with the exact fluid and operating conditions, and consider cathodic/gasket measures or isolation fittings to prevent galvanic attack. Conclusion: Mechanically compatible with 60Â° cone BSP fittings, but carbon steel galvanised construction limits corrosion resistanceâuse only in less aggressive environments or replace with a corrosion-resistant variant for corrosive service.

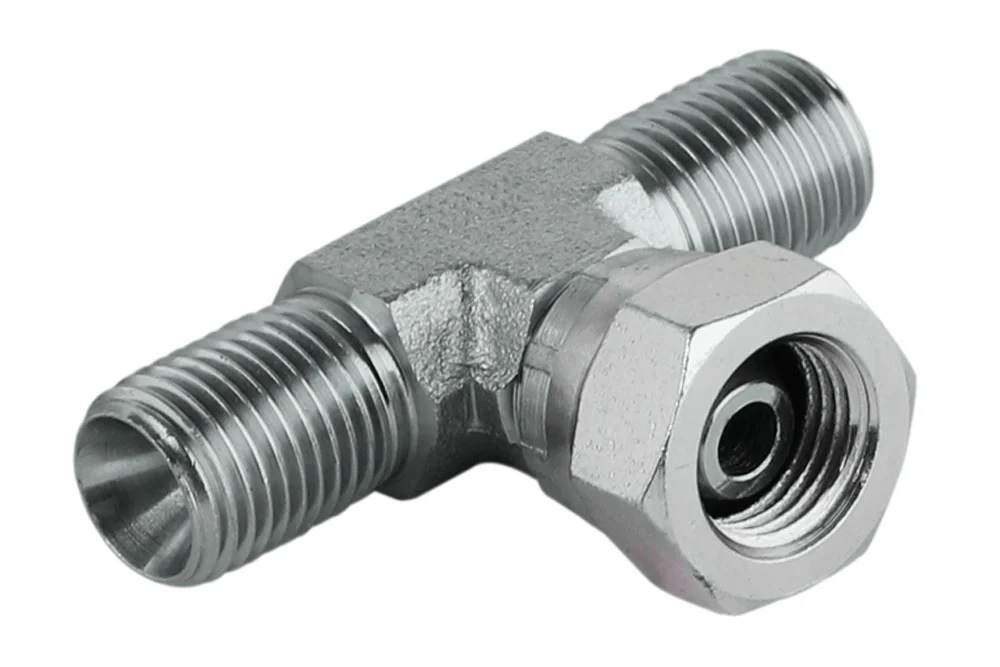

Adapter – tee hydraulic with BSP female/2 x BSP male, carbon steel, type A127

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	60

Adapter – tee high-pressure, type A127 with BSP female thread (60° cone sealing) and with 2 x BSP male thread (60° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A127-02	Tee "T" 1/8" BSP female / 2 x 1/8" BSP male	-	400	In stock	Enquiry
TI-A127-04	Tee "T" 1/4" BSP female / 2 x 1/4" BSP male	-	400	In stock	Enquiry
TI-A127-06	Tee "T" 3/8" BSP female / 2 x 3/8" BSP male	-	400	In stock	Enquiry
TI-A127-08	Tee "T" 1/2" BSP female / 2 x 1/2" BSP male	-	350	In stock	Enquiry
TI-A127-12	Tee "T" 3/4" BSP female / 2 x 3/4" BSP male	-	315	In stock	Enquiry
TI-A127-16	Tee "T" 1" BSP female / 2 x 1" BSP male	-	250	In stock	Enquiry
TI-A127-20	Tee "T" 1.1/4" BSP female / 2 x 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A127-24	Tee "T" 1.1/2" BSP female / 2 x 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A127-32	Tee "T" 2" BSP female / 2 x 2" BSP male	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter – tee high-pressure, type A127 with BSP female thread (60° cone sealing) and with 2 x BSP male thread (60° cone sealing). Material: carbon steel, galvanized.
