Can the Adaptor with external thread BSP, BSPT, galvanized steel, type ADN be used with Teflon tape on BSPT threads and flat-face sealing on BSP connections at 25 bar?

Yes. The Adaptor with external thread BSP, BSPT, galvanized steel, type ADN can be used with Teflon tape on BSPT threads and flat-face sealing on BSP BSP connections at 25 bar, provided standard installation practices and compatibility checks are observed. The product description explicitly states sealing: flat (face) for BSP and thread sealing (Teflon tape) for BSPT, and a working pressure of 25 bar. Ensure threads are clean, tape is applied correctly on BSPT male threads (wrap in the thread direction, avoid overwrapping), and the flat-face mating surface is undamaged and matched to a compatible BSP flat-face port or gasket to achieve proper sealing at the specified pressure. Verify material compatibility (galvanized steel) with the media and environment and follow supplier torque recommendations to avoid overstressing threads or deforming the flat face.

Is the Adaptor with external thread BSP, BSPT, galvanized steel, type ADN suitable for mixed sealing methods (flat face BSP and tape on BSPT) at 25 bar?

Yes. Adaptor with external thread BSP, BSPT, galvanized steel, type ADN is suitable for mixed sealing methods at 25 bar. Description specifies BSP connections use flat-face sealing and BSPT connections use thread sealing (Teflon tape), and the working pressure is rated 25 bar, so using flat face on BSP and tape on BSPT is appropriate provided threads and faces are in good condition and installation torque follows manufacturer guidelines.

Does the Adaptor with external thread BSP, BSPT, galvanized steel, type ADN support flat-face BSP and tape-sealed BSPT at 25 bar?

Yes. Adaptor with external thread BSP, BSPT, galvanized steel, type ADN supports both flat-face BSP sealing and tape-sealed BSPT up to a working pressure of 25 bar. The product description specifies sealing: flat (face) for BSP and thread sealing (Teflon tape) for BSPT, with a listed working pressure of 25 bar.

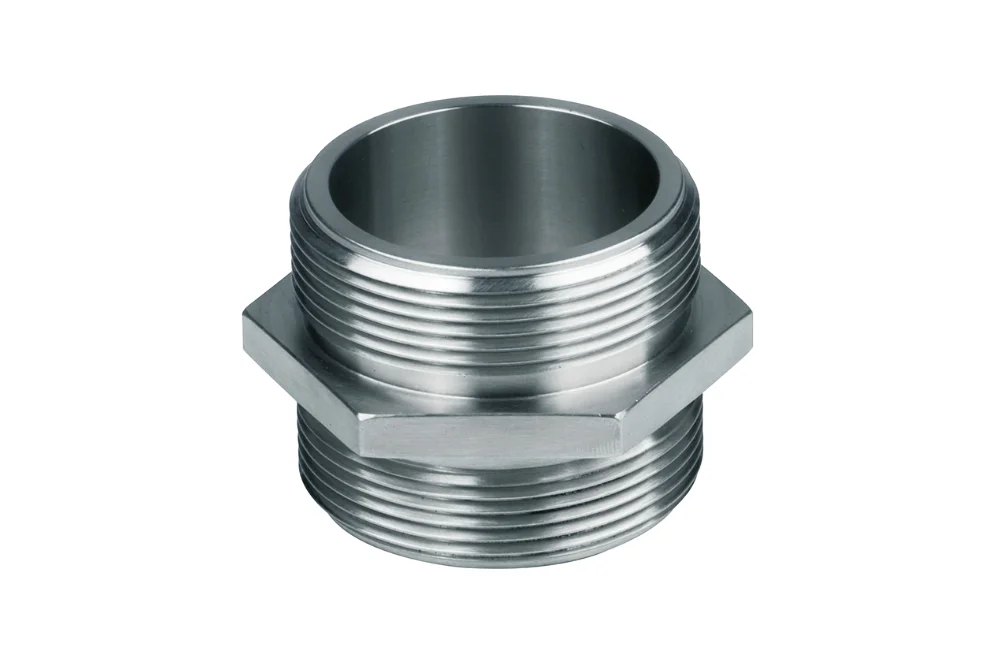

Adapter with BSP, BSPT male thread, galvanized steel, type ADN

All products, Threaded couplings and adapters/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	20, 25

Hexagonal adapter ADN with BSP, BSPT male threads on both sides is designed for connecting lines (hoses with fittings) and components of industrial installations. Depending on the size and manufacturer, the couplings have various shapes of wrench flats. Material: galvanized steel. Sealing: flat (face) – BSP; on the thread (PTFE tape) – BSPT. Working pressure: 25 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ADN-01-050-050	Adapter 1/2" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-01-075-075	Adapter 3/4" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-01-100-100	Adapter 1" BSP male, A10X	-	25	In stock	Enquiry
TI-ADN-01-125-125	Adapter 1.1/4" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-01-150-150	Adapter 1.1/2" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-01-200-200	Adapter 2" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-01-250-250	Adapter 2.1/2" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-01-300-300	Adapter 3" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-01-400-400	Adapter 4" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-050-050	Adapter 1/2" BSPT male / 1/2" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-075-075	Adapter 3/4" BSPT male / 3/4" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-100-100	Adapter 1" BSPT male / 1" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-125-125	Adapter 1.1/4" BSPT male / 1.1/4" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-150-150	Adapter 1.1/2" BSPT male / 1.1/2" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-200-200	Adapter 2" BSPT male / 2" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-250-250	Adapter 2.1/2" BSPT male / 2.1/2" BSP male, S355 galvanized	-	25	In stock	Enquiry
TI-ADN-02-300-300	Adapter 3" BSPT male / 3" BSP male, galvanized steel	-	25	In stock	Enquiry
TI-ADN-02-400-400	Adapter 4" BSPT male / 4" BSP male, galvanized steel	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Hexagonal adapter ADN with BSP, BSPT male threads on both sides is designed for connecting lines (hoses with fittings) and components of industrial installations. Depending on the size and manufacturer, the couplings have various shapes of wrench flats. Material: galvanized steel. Sealing: flat (face) – BSP; on the thread (PTFE tape) – BSPT. Working pressure: 25 bar.
