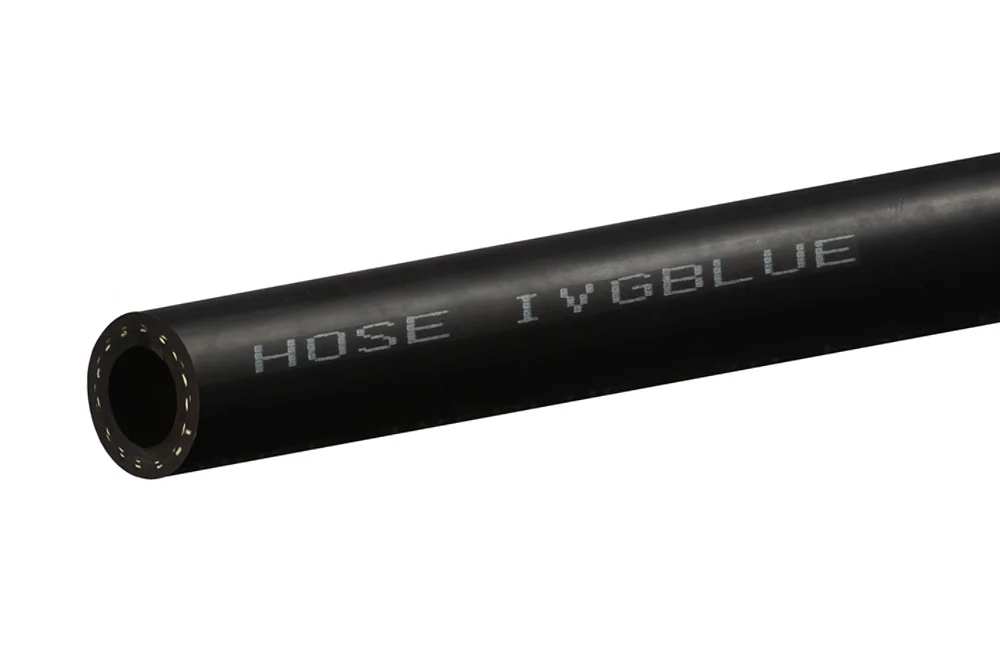

Discharge hose for AdBlue® (urea) BLUE

Additional information

Material

EPDM – ethylene-propylene-diene rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

100, 30, 40, 60

Reinforcement

synthetic braid

Hose designed specifically for the transfer of AdBlue® (AUS32, DEF) – 32.5% aqueous urea solution. The inner layer of the hose consists of black, smooth, antistatic (R‹10^6 Ω/m) EPDM rubber vulcanized without sulfur. The inner layer of the hose is free from contaminants such as aluminum, calcium, chlorine, copper, iron, potassium, magnesium, sodium, nickel, and zinc, ensuring the highest purity of the medium in accordance with ISO 22241-2. This is particularly important in the automotive industry, where AdBlue® acts as a reductant to decompose harmful nitrogen oxides in the SCR catalyst. Its use allows compliance with European emission standards EURO 4, 5, and 6. For AdBlue® to be effective, it must be very pure, necessitating the use of specialized hoses, tanks, and fittings that are resistant to AdBlue® and do not contaminate it. Ends and fittings for AdBlue® should be made of stainless steel or suitable plastic. Besides automotive applications, the hose is also used in the chemical industry, for example, in the production of nitrogen fertilizers. Inner layer: black EPDM rubber. Reinforcement: synthetic braid. Outer layer: black EPDM rubber. Working pressure: 10 bar or 20 bar. Operating temperature: from -40°C to +100°C (temporarily up to +120°C).

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
IV-BLUE10-16Hose BLUE/10, 16x23 mm1610
IV-BLUE10-19Hose BLUE/10, 19x27 mm2010
IV-BLUE10-25Hose BLUE/10, 25x36 mm2510
IV-BLUE20-08Hose BLUE/20, 8x15 mm820
IV-BLUE20-10Hose BLUE/20, 10x17 mm1020
IV-BLUE20-13Hose BLUE/20, 13x20 mm1220
IV-BLUE20-16Hose BLUE/20, 16x26 mm1620
IV-BLUE20-19Hose BLUE/20, 19x30 mm2020
IV-BLUE20-25Hose BLUE/20, 25x37 mm2520

Hose designed specifically for the transfer of AdBlue® (AUS32, DEF) – 32.5% aqueous urea solution. The inner layer of the hose consists of black, smooth, antistatic (R‹10^6 Ω/m) EPDM rubber vulcanized without sulfur. The inner layer of the hose is free from contaminants such as aluminum, calcium, chlorine, copper, iron, potassium, magnesium, sodium, nickel, and zinc, ensuring the highest purity of the medium in accordance with ISO 22241-2. This is particularly important in the automotive industry, where AdBlue® acts as a reductant to decompose harmful nitrogen oxides in the SCR catalyst. Its use allows compliance with European emission standards EURO 4, 5, and 6. For AdBlue® to be effective, it must be very pure, necessitating the use of specialized hoses, tanks, and fittings that are resistant to AdBlue® and do not contaminate it. Ends and fittings for AdBlue® should be made of stainless steel or suitable plastic. Besides automotive applications, the hose is also used in the chemical industry, for example, in the production of nitrogen fertilizers. Inner layer: black EPDM rubber. Reinforcement: synthetic braid. Outer layer: black EPDM rubber. Working pressure: 10 bar or 20 bar. Operating temperature: from -40°C to +100°C (temporarily up to +120°C).

Additional information

Material

EPDM – ethylene-propylene-diene rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

100, 30, 40, 60

Reinforcement

synthetic braid
