Can the PUSH-IN 90Â° adjustable adapter with male thread, brass, type AI 58111 be used with air applications up to 30 bar and temperatures down to -30Â°C?

Yes. The PUSH-IN 90Â° adjustable adapter with male thread, brass, type AI 58111 can be used for air applications up to 30 bar and for temperatures down to â30Â°C. Its specifications list an operating temperature range of â30Â°C to +150Â°C and a maximum working pressure of 30 bar for air. Note that it is intended for lubrication technology and is recommended for use with polyamide hoses; body material is nickel-plated brass and sealing is HNBR o-ring.

Is the PUSH-IN 90Â° adjustable adapter with male thread, brass, type AI 58111 compatible with hoses made of polyamide?

Yes. The PUSH-IN 90Â° adjustable adapter with male thread, brass, type AI 58111 is compatible with hoses made of polyamide - polyamide is the recommended hose material in the product description. The adapter body is nickelâplated brass with an HNBR Oâring, and it is specified for lubrication technology with an operating range of â30Â°C to +150Â°C and maximum working pressures of 150 bar (liquids) and 30 bar (air).

Does the PUSH-IN 90Â° adjustable adapter with male thread, brass, type AI 58111 support sealing with HNBR o-rings at temperatures up to 150Â°C?

Yes. The PUSH-IN 90Â° adjustable adapter with male thread, brass, type AI 58111 uses an HNBR oâring as the sealing material and its specified operating temperature range is â30Â°C to +150Â°C, so it supports sealing with HNBR oârings at temperatures up to 150Â°C.

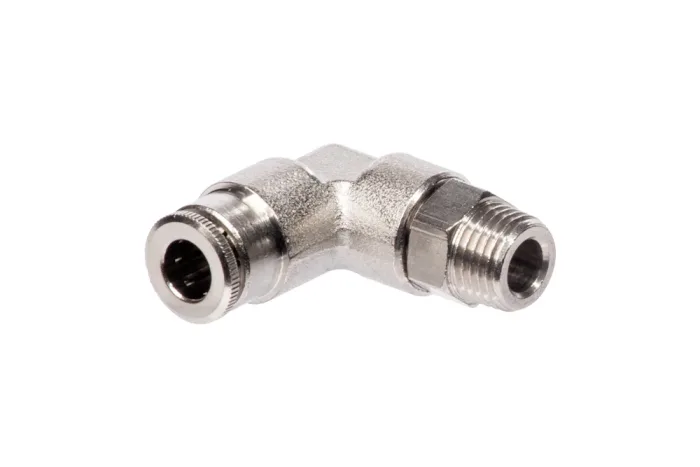

PUSH-IN 90° adjustable adapter with male thread, brass, type AI 58111

Additional information

Material	B – brass (bronze)
Standard length [m]	2

Adjustable 90° push-in connector for hose with external BSPT or metric thread. For use in lubrication technology. Recommended material for connected hoses is polyamide. Body material: nickel-plated brass. Sealing material: o-ring (HNBR). Operating temperature: from -30°C to +150°C. Maximum working pressure: 150 bar (for liquids), 30 bar (for air).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-58111-04-02	Adjustable angle connector PUSH-IN hose 4 mm, GZ BSPT 1/8"	-	150	In stock	Enquiry
AI-58111-04-M10	Adjustable angle fitting PUSH-IN hose 4 mm, GZ M10x1 tapered	-	150	In stock	Enquiry
AI-58111-04-M6	Adjustable angle connector PUSH-IN hose 4 mm, GZ M6x1 tapered	-	150	In stock	Enquiry
AI-58111-04-M8	Adjustable angle connector PUSH-IN hose 4 mm, GZ M8x1 conical	-	150	In stock	Enquiry
AI-58111-06-02	Adjustable angle connector PUSH-IN hose 6 mm, GZ BSPT 1/8"	-	150	In stock	Enquiry
AI-58111-06-M10	Adjustable angle fitting PUSH-IN hose 6 mm, GZ M10x1 tapered	-	150	In stock	Enquiry
AI-58111-06-M6	Adjustable angle fitting PUSH-IN hose 6 mm, GZ M6x1 conical	-	150	In stock	Enquiry
AI-58111-06-M8	Adjustable angle connector PUSH-IN hose 6 mm, GZ M8x1 tapered	-	150	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adjustable 90° push-in connector for hose with external BSPT or metric thread. For use in lubrication technology. Recommended material for connected hoses is polyamide. Body material: nickel-plated brass. Sealing material: o-ring (HNBR). Operating temperature: from -30°C to +150°C. Maximum working pressure: 150 bar (for liquids), 30 bar (for air).
