Is the 130GREASING high-pressure grease hose compatible with standard grease fittings and pumps for DIN 1283 systems?

Yes. The 130GREASING high-pressure grease hose is designed for DIN 1283 systems, so it is compatible with standard grease fittings and pumps that comply with that standard. Its construction.polyester inner layer, single synthetic braid reinforcement, and durable polyurethane outer layer.supports high-pressure grease lubrication while remaining flexible. Operating temperature range of â40Â°C to +60Â°C further ensures reliable performance with typical grease fittings and pumps used in DIN 1283 applications.

Can the 130GREASING high-pressure grease hose be used with automated lubrication systems and timed greasing units?

Yes. The 130GREASING high-pressure grease hose is suitable for use with automated lubrication systems and timed greasing units. Its lightweight, flexible construction and DIN 1283 compliance make it compatible with standard high-pressure grease delivery setups. The polyester inner layer and single synthetic braid reinforcement provide sufficient pressure handling and durability for cyclic automated operation, while the polyurethane (130A) or microâperforated polyurethane (130C) outer layer offers good abrasion and environmental resistance. Its operating temperature range (â40Â°C to +60Â°C) supports a wide variety of automated system environments. Ensure hose size, pressure rating and fittings match your specific system requirements.

What is the maximum recommended working pressure for the 130GREASING high-pressure grease hose?

The provided description for the 130GREASING high-pressure grease hose does not state a specific maximum recommended working pressure. It lists construction (polyester inner layer, single synthetic braid reinforcement, polyurethane outer layer), standard (DIN 1283) and operating temperature range (-40Â°C to +60Â°C), but no pressure rating. For the exact maximum recommended working pressure of the 130GREASING high-pressure grease hose, please consult the manufacturerâs technical data sheet or contact the supplier.

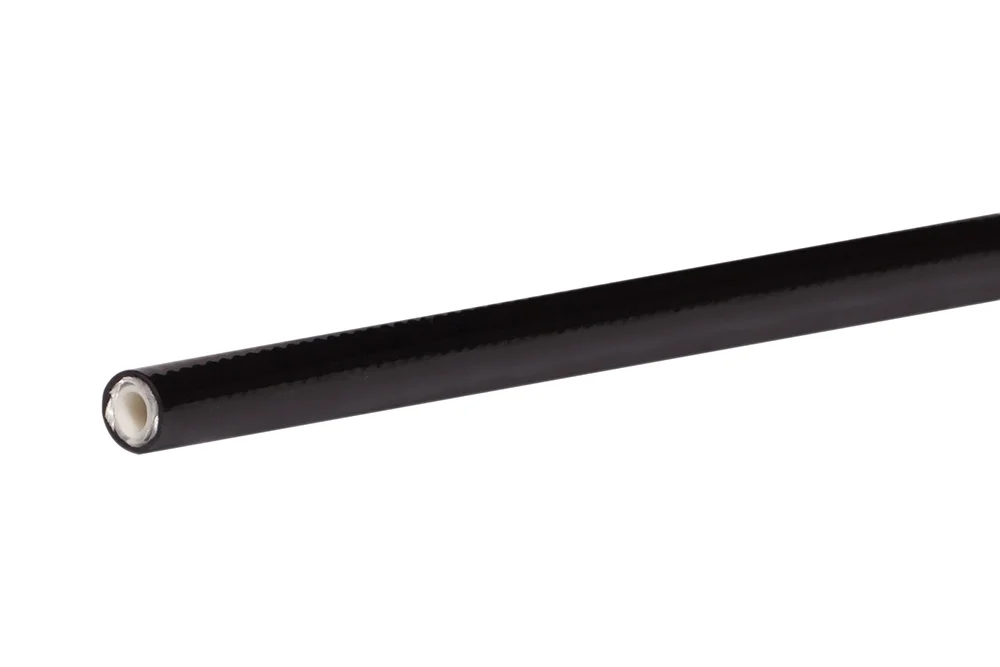

130GREASING high-pressure grease hose

Additional information

Material	PEE – polyester
Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-40
Vacuum resistance	no

Lightweight, flexible hose designed for high-pressure grease lubrication systems. Standard: DIN 1283. Inner layer: polyester. Reinforcement: single synthetic braid. Outer layer: polyurethane (130A), micro-perforated polyurethane (130C). Operating temperature: from -40°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TO-130A-04	Thermoplastic hose 130 GREASING 5/32" (4x9.7 mm)	4	400	In stock	0 zł		Enquiry
TO-130C-04	Thermoplastic hose 130 GREASING 5/32" (4x8.3 mm)	4	400	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Lightweight, flexible hose designed for high-pressure grease lubrication systems. Standard: DIN 1283. Inner layer: polyester. Reinforcement: single synthetic braid. Outer layer: polyurethane (130A), micro-perforated polyurethane (130C). Operating temperature: from -40°C to +60°C.
