Is the VEO adjustable angle fitting, carbon steel compatible with both L (light) and S (heavy) series mounting standards?

Yes. The VEO adjustable angle fitting, carbon steel is compatible with both L (light) and S (heavy) series mounting standards. The product description explicitly states itâs available as L (light series) and S (heavy series), meaning the same VEO fitting design is offered in versions that match each seriesâ mounting and load requirements.

Does the VEO adjustable angle fitting, carbon steel require special O-ring materials for use with different hydraulic fluids?

Yes. The VEO adjustable angle fitting, carbon steel uses an O-ring seal (internal metric thread), so O-ring material must be compatible with the specific hydraulic fluid in use. Different fluids (mineral oils, synthetic esters, phosphate esters, water-glycol, etc.) have varying chemical and temperature effects; selecting O-ring elastomers (e.g., NBR, FKM/Viton, EPDM, HNBR, PTFE) appropriate for fluid type, temperature range and pressure is required to ensure sealing performance and longevity. Verify fluid compatibility charts and, when in doubt, consult the fluid and O-ring supplier or the fitting manufacturer for recommended materials.

Can the VEO adjustable angle fitting, carbon steel be used in corrosive environments after galvanization?

Yes. but with important limitations. The VEO adjustable angle fitting, carbon steel is galvanized, which provides a zinc coating that offers sacrificial corrosion protection and is effective against mild to moderate atmospheric corrosion, moisture, and some industrial environments. For many typical indoor or sheltered outdoor applications (non-aggressive atmospheres, occasional wetting), galvanizing will extend service life and make use in corrosive conditions feasible. However, galvanized carbon steel has reduced performance in strongly corrosive environments: - It is not suitable for continuous immersion in seawater or highly chloride-rich atmospheres, where rapid zinc and steel corrosion can occur. - It fares poorly in acidic or strongly alkaline chemical exposures, and in environments with aggressive solvents or caustics. - Mechanical wear, abrasion, or damage to the coating (installation, flexing at the adjustable angle) can expose base steel and accelerate localized corrosion, especially at threads, seals and joints. Practical guidance: - Use VEO adjustable angle fitting, carbon steel galvanized for mild to moderate corrosion environments only. - For marine, high-chloride, acidic/alkaline, or continuous wet/chemical exposures, choose a corrosion-resistant alternative (stainless steel fittings or special coatings/plating) or additional protective measures (Cathodic protection, sealing compounds, regular maintenance). - Inspect threaded and adjustable areas regularly and ensure O-ring sealing materials are compatible with the environment. In short: galvanization helps, but do not rely on it for severe corrosive conditions. select a more resistant material or protection if the environment is aggressive.

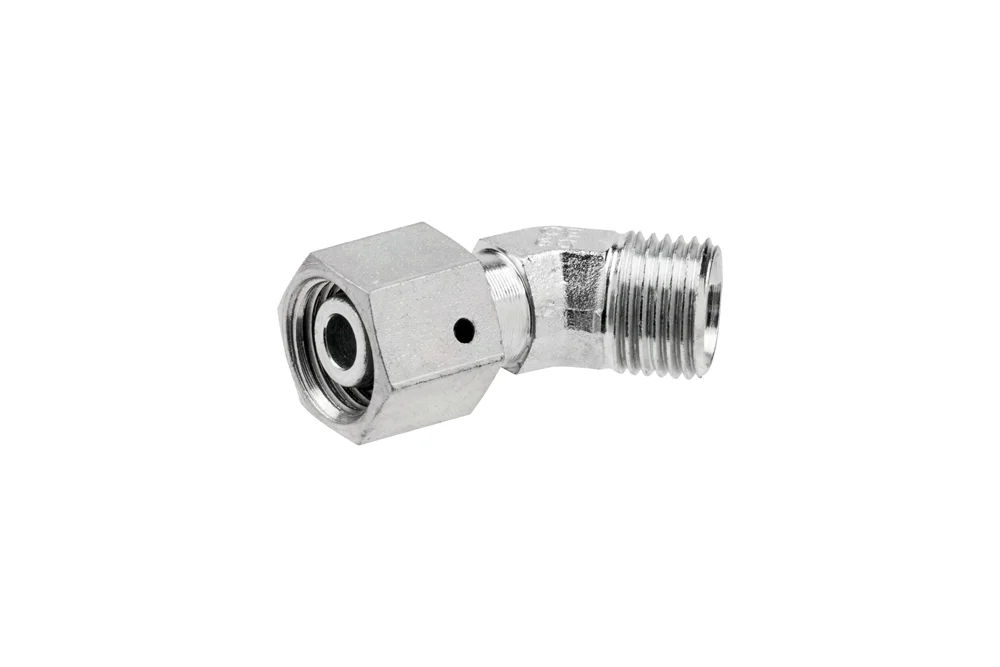

VEO adjustable angle fitting, carbon steel

Additional information

Material	CS – steel (cast iron)
Standard length [m]	15

Adjustable angled fitting DIN 2353, type VEO: 24° DIN 2353 socket with external thread and internal metric thread (O-ring seal). Available as: L (light series), S (heavy series). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-VEO-06L	DIN 2353 VEO 45° 6L fitting	-	315	In stock	Enquiry
HD-VEO-06S	DIN 2353 VEO 45° 6S fitting	-	630	In stock	Enquiry
HD-VEO-08L	DIN 2353 fitting VEO 45° 8L	-	315	In stock	Enquiry
HD-VEO-08S	DIN 2353 VEO 45° 8S fitting	-	630	In stock	Enquiry
HD-VEO-10L	DIN 2353 VEO 45° 10L fitting	-	315	In stock	Enquiry
HD-VEO-10S	DIN 2353 VEO 45° 10S fitting	-	630	In stock	Enquiry
HD-VEO-12L	DIN 2353 fitting VEO 45° 12L	-	315	In stock	Enquiry
HD-VEO-12S	DIN 2353 VEO 45° 12S fitting	-	630	In stock	Enquiry
HD-VEO-14S	DIN 2353 fitting VEO 45° 14S	-	630	In stock	Enquiry
HD-VEO-15L	DIN 2353 fitting VEO 45° 15L	-	315	In stock	Enquiry
HD-VEO-16S	DIN 2353 fitting VEO 45° 16S	-	400	In stock	Enquiry
HD-VEO-18L	DIN 2353 fitting VEO 45° 18L	-	315	In stock	Enquiry
HD-VEO-20S	DIN 2353 fitting VEO 45° 20S	-	400	In stock	Enquiry
HD-VEO-22L	DIN 2353 VEO 45° 22L fitting	-	160	In stock	Enquiry
HD-VEO-25S	DIN 2353 VEO 45° 25S fitting	-	400	In stock	Enquiry
HD-VEO-28L	DIN 2353 VEO 45° 28L fitting	-	160	In stock	Enquiry
HD-VEO-30S	DIN 2353 VEO 45° 30S fitting	-	400	In stock	Enquiry
HD-VEO-35L	DIN 2353 VEO 45° 35L fitting	-	160	In stock	Enquiry
HD-VEO-38S	DIN 2353 VEO 45° 38S fitting	-	315	In stock	Enquiry
HD-VEO-42L	DIN 2353 VEO 45° 42L fitting	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adjustable angled fitting DIN 2353, type VEO: 24° DIN 2353 socket with external thread and internal metric thread (O-ring seal). Available as: L (light series), S (heavy series). Material: carbon steel, galvanized.
