Is the Angle fitting W, carbon steel compatible with standard 24Â° DIN 2353 female connectors across LL, L, and S series?

Yes. The Angle fitting W, carbon steel Format (24Â° DIN 2353 socket with external metric thread on both sides) is compatible with standard 24Â° DIN 2353 female connectors across the LL, L and S series. All three series (LL . very light, L . light, S . heavy) use the same 24Â° sealing cone and standard DIN 2353 dimensions, so the W type sockets will mate correctly provided the thread sizes and series ratings match. Ensure you match the exact metric thread size (and pressure/strength requirements appropriate to LL, L or S) and use properly prepared tube ends and fittings per DIN 2353 assembly instructions for reliable sealing and mechanical performance.

Can Angle fitting W, carbon steel be used in high-pressure applications across LL, L, and S series?

Yes - Angle fitting W, carbon steel (24Â° DIN 2353 socket with external metric thread on both sides) is available in LL, L and S series, but suitability for highâpressure applications depends on the series: LL (very light) is intended for lowâpressure/lowâstress use and is generally not recommended for high pressures; L (light) can handle moderate pressures depending on size and application; S (heavy) is designed for highâpressure service and is the appropriate choice where elevated working pressures are required. Always verify the specific pressure ratings for the chosen series and fitting size per manufacturer data and DIN 2353, and consider temperature, corrosion, dynamic loads and appropriate assembly/torque.

Are installation torque values for Angle fitting W, carbon steel different between LL, L, and S series?

Yes. installation torque values for Angle fitting W, carbon steel differ between LL, L, and S series. Explanation: The LL (very light), L (light) and S (heavy) series represent different wall thicknesses and mechanical strength of the same 24Â° DIN 2353 socket with external metric thread on both sides (Angle fitting W, carbon steel). Because torque required for proper assembly depends on thread size, sealing method, material strength and required preload, fittings with thicker walls and higher material robustness (S series) will generally tolerate and often require higher tightening torque than lighter variants (L and LL). Conversely, LL series components need lower torque limits to avoid yielding or thread damage. Practical note: Use the manufacturerâs specific torque tables or DIN 2353 installation instructions for exact values per thread size and series. If such tables are unavailable, apply a conservative approach: start at the torque recommended for the lightest series and increase only to the manufacturerâs advised value for L or S, monitoring for proper seal and without exceeding material/thread strength limits.

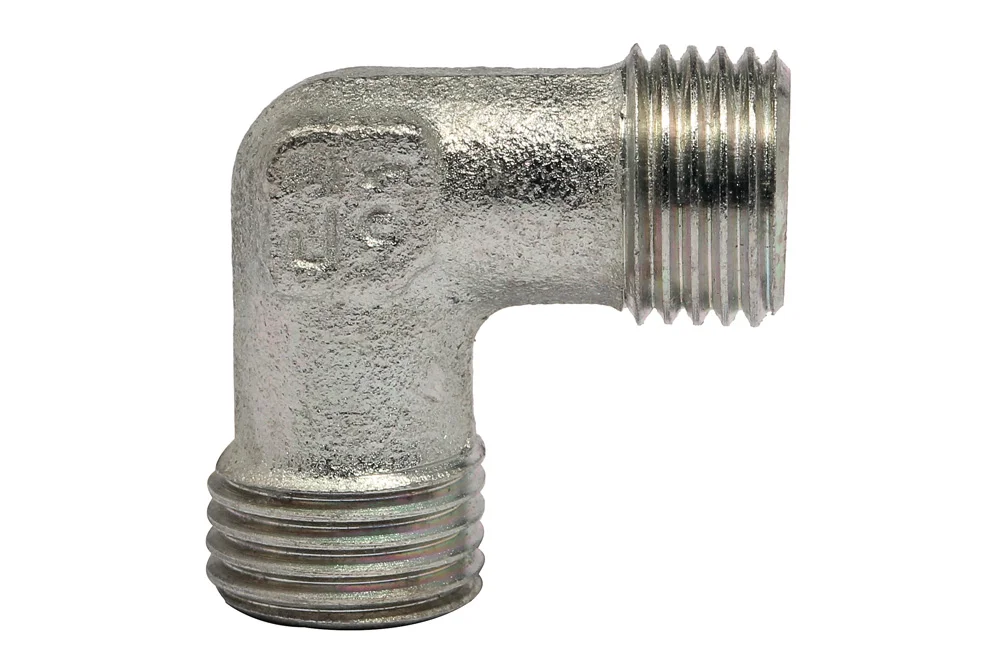

Fitting angled W, carbon steel

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 angled, type W: 24° DIN 2353 socket on both sides with metric male thread. Available as: LL (extra-light series), L (series light), S (series heavy). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-W-04LL	Fitting DIN 2353 W 4LL	-	100	In stock	Enquiry
HD-W-06L	Fitting DIN 2353 W 6L	-	315	In stock	Enquiry
HD-W-06LL	Fitting DIN 2353 W 6LL	-	100	In stock	Enquiry
HD-W-06S	Fitting DIN 2353 W 6S	-	630	In stock	Enquiry
HD-W-08L	Fitting DIN 2353 W 8L	-	315	In stock	Enquiry
HD-W-08LL	Fitting DIN 2353 W 8LL	-	100	In stock	Enquiry
HD-W-08S	Fitting DIN 2353 W 8S	-	630	In stock	Enquiry
HD-W-10L	Fitting DIN 2353 W 10L	-	315	In stock	Enquiry
HD-W-10S	Fitting DIN 2353 W 10S	-	630	In stock	Enquiry
HD-W-12L	Fitting DIN 2353 W 12L	-	315	In stock	Enquiry
HD-W-12S	Fitting DIN 2353 W 12S	-	630	In stock	Enquiry
HD-W-14S	Fitting DIN 2353 W 14S	-	630	In stock	Enquiry
HD-W-15L	Fitting DIN 2353 W 15L	-	315	In stock	Enquiry
HD-W-16S	Fitting DIN 2353 W 16S	-	400	In stock	Enquiry
HD-W-18L	Fitting DIN 2353 W 18L	-	315	In stock	Enquiry
HD-W-20S	Fitting DIN 2353 W 20S	-	400	In stock	Enquiry
HD-W-22L	Fitting DIN 2353 W 22L	-	160	In stock	Enquiry
HD-W-25S	Fitting DIN 2353 W 25S	-	400	In stock	Enquiry
HD-W-28L	Fitting DIN 2353 W 28L	-	160	In stock	Enquiry
HD-W-30S	Fitting DIN 2353 W 30S	-	400	In stock	Enquiry
HD-W-35L	Fitting DIN 2353 W 35L	-	160	In stock	Enquiry
HD-W-38S	Fitting DIN 2353 W 38S	-	315	In stock	Enquiry
HD-W-42L	Fitting DIN 2353 W 42L	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 angled, type W: 24° DIN 2353 socket on both sides with metric male thread. Available as: LL (extra-light series), L (series light), S (series heavy). Material: carbon steel, galvanized.
