Is the EVWO adjustable angle fitting, stainless steel, compatible with both L (light) and S (heavy) series installations and their pressure ratings?

Yes. The EVWO adjustable angle fitting, stainless steel is offered in both L (light) and S (heavy) series, so it is compatible with installations designed for either series. Each series version is manufactured to the corresponding DIN 2353 pressure/strength category: the L-series (light) variant meets the lighter-duty pressure ratings, while the S-series (heavy) variant meets the higher-duty pressure ratings. In other words, choose the EVWO adjustable angle fitting, stainless steel in the series (L or S) that matches the pressure requirements of your system.

Does the EVWO adjustable angle fitting, stainless steel, include an O-ring suitable for metric internal threads?

Yes. The EVWO adjustable angle fitting, stainless steel, includes an O-ring suitable for metric internal threads. The product description specifies it is a 24Â° DIN 2353 socket with external thread and internal metric thread with O-ring, made of AISI 316 steel, available in L (light) and S (heavy) series.

Can the EVWO adjustable angle fitting, stainless steel, be used with both external DIN 2353 sockets and internal metric threaded ports?

Yes. The EVWO adjustable angle fitting, stainless steel is designed to accommodate both connection types: it includes a 24Â° DIN 2353 socket with external thread for use with external DIN 2353 fittings, and it also features an internal metric thread with an Oâring, allowing it to be used with internal metric threaded ports. Available in L (light) and S (heavy) series and manufactured from AISI 316 stainless steel, it provides versatile compatibility for systems requiring either external DIN 2353 connections or sealed internal metric threads.

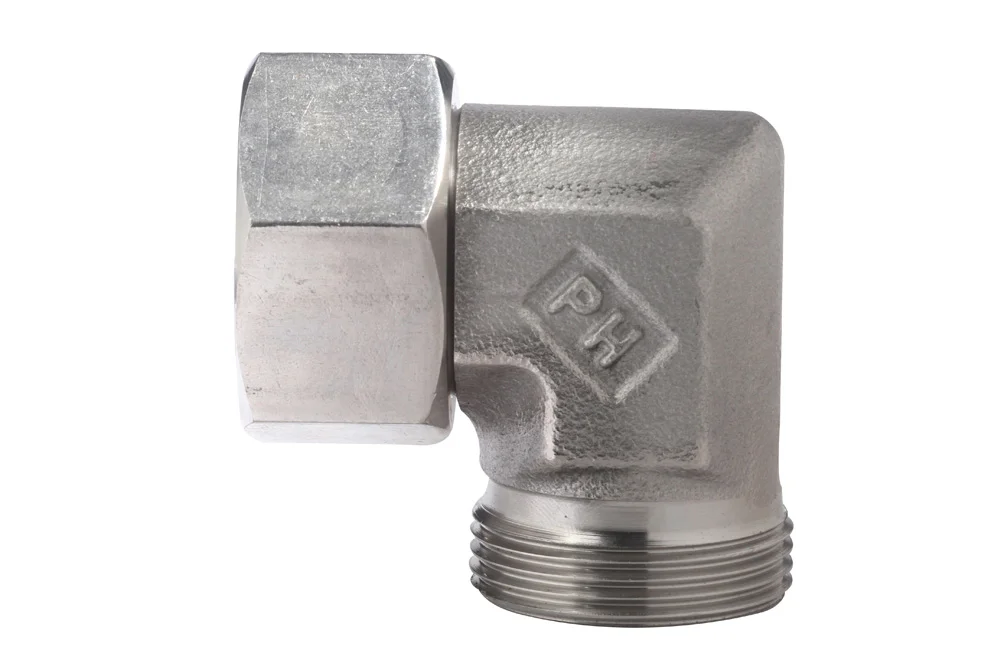

Fitting angled adjustable EVWO, stainless steel

Additional information

Material	SS – stainless steel

Fitting DIN 2353 angled adjustable, type EVWO: 24° DIN 2353 socket with male thread and with metric female thread with an O-ring. Available as: L (series light), S (series heavy). Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-EVWO-06L-SS	Fitting DIN 2353 EVWO 6L, AISI 316	-	500	In stock	Enquiry
HD-EVWO-06S-SS	Fitting DIN 2353 EVWO 6S, AISI 316	-	800	In stock	Enquiry
HD-EVWO-08L-SS	Fitting DIN 2353 EVWO 8L, AISI 316	-	500	In stock	Enquiry
HD-EVWO-08S-SS	Fitting DIN 2353 EVWO 8S, AISI 316	-	800	In stock	Enquiry
HD-EVWO-10L-SS	Fitting DIN 2353 EVWO 10L, AISI 316	-	500	In stock	Enquiry
HD-EVWO-10S-SS	Fitting DIN 2353 EVWO 10S, AISI 316	-	800	In stock	Enquiry
HD-EVWO-12L-SS	Fitting DIN 2353 EVWO 12L, AISI 316	-	400	In stock	Enquiry
HD-EVWO-12S-SS	Fitting DIN 2353 EVWO 12S, AISI 316	-	630	In stock	Enquiry
HD-EVWO-14S-SS	Fitting DIN 2353 EVWO 14S, AISI 316	-	630	In stock	Enquiry
HD-EVWO-15L-SS	Fitting DIN 2353 EVWO 15L, AISI 316	-	400	In stock	Enquiry
HD-EVWO-16S-SS	Fitting DIN 2353 EVWO 16S, AISI 316	-	630	In stock	Enquiry
HD-EVWO-18L-SS	Fitting DIN 2353 EVWO 18L, AISI 316	-	400	In stock	Enquiry
HD-EVWO-20S-SS	Fitting DIN 2353 EVWO 20S, AISI 316	-	420	In stock	Enquiry
HD-EVWO-22L-SS	Fitting DIN 2353 EVWO 22L, AISI 316	-	250	In stock	Enquiry
HD-EVWO-25S-SS	Fitting DIN 2353 EVWO 25S, AISI 316	-	420	In stock	Enquiry
HD-EVWO-28L-SS	Fitting DIN 2353 EVWO 28L, AISI 316	-	250	In stock	Enquiry
HD-EVWO-30S-SS	Fitting DIN 2353 EVWO 30S, AISI 316	-	420	In stock	Enquiry
HD-EVWO-35L-SS	Fitting DIN 2353 EVWO 35L, AISI 316	-	250	In stock	Enquiry
HD-EVWO-38S-SS	Fitting DIN 2353 EVWO 38S, AISI 316	-	420	In stock	Enquiry
HD-EVWO-42L-SS	Fitting DIN 2353 EVWO 42L, AISI 316	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 angled adjustable, type EVWO: 24° DIN 2353 socket with male thread and with metric female thread with an O-ring. Available as: L (series light), S (series heavy). Material: AISI 316.
