Is the BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel, compatible with both metric and BSP external threads while using a DIN 3852 type E elastomer gasket?

Yes. The BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel is compatible with both external metric threads and external BSP threads while using a DIN 3852 type E elastomer gasket. The product description explicitly states a 24Â° DIN 2353 socket with external metric thread and external BSP thread, and specifies sealing with DIN 3852 type E (elastomer gasket with rectangular cross-section), so the gasket type is appropriate for sealing both thread variants.

Can the BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel, withstand 4:1 safety factor loads in LL, L, and S series?

Yes. The BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel is specified with a 4:1 safety factor and is available in LL (very light), L (light) and S (heavy) series. Therefore, when used within the rated working pressures and proper installation for each series (LL, L, S), it is designed to withstand loads with a 4:1 safety factor. Ensure selection of the correct series for your application and follow DIN 2353/DIN 3852 installation and pressure ratings.

Does the BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel, meet DIN 2353 dimensional tolerances?

Yes. The BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel is specified as a 24Â° DIN 2353 screw-in angular adjustable BANJO connector and, by that designation and description, is intended to conform to the DIN 2353 dimensional and sealing requirements. The description cites the 24Â° DIN 2353 socket, metric and BSP external threads (with DIN 3852 type E elastomer gasket sealing), the DIN-based safety factor (4:1), and the LL/L/S series classificationâthese are the dimensional, sealing and performance attributes defined by DIN 2353. The material and zinc-nickel coating details do not affect compliance with DIN 2353 tolerances. Therefore, the BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel meets DIN 2353 dimensional tolerances as specified.

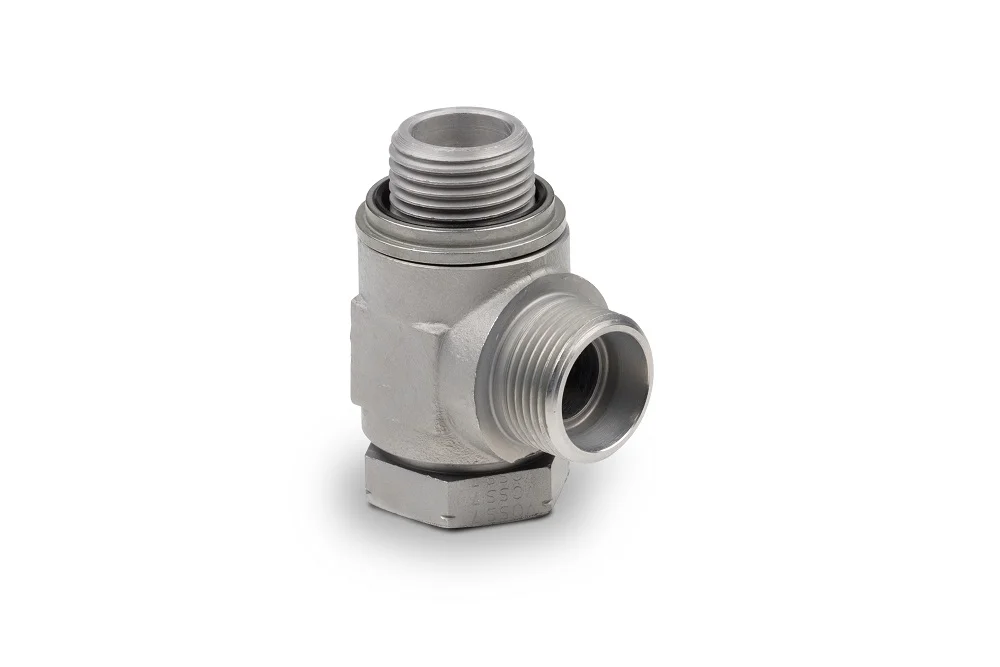

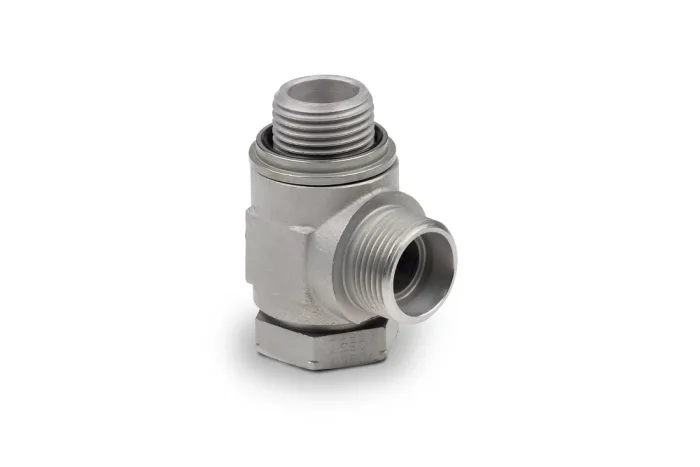

BANJO WH-BE adjustable angle screw connection, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2

DIN 2353 screw-in angular adjustable BANJO connector, type WH-BE: 24° DIN 2353 socket with external metric thread and external BSP thread (sealing DIN 3852 type E – elastomer gasket with rectangular cross-section). Safety factor 4:1. Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WH-04LL-BE-02-CN	DIN 2353 fitting WH 4LL 1/8" BSP, Zn-Ni	-	100	In stock	Enquiry
HD-WH-06L-BE-02-CN	DIN 2353 fitting WH 6L 1/8" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WH-06LL-BE-02-CN	DIN 2353 fitting WH 6LL 1/8" BSP, Zn-Ni	-	100	In stock	Enquiry
HD-WH-06S-BE-04-CN	DIN 2353 fitting WH 6S 1/4" BSP, Zn-Ni	-	400	In stock	Enquiry
HD-WH-08L-BE-04-CN	DIN 2353 fitting WH 8L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WH-08LL-BE-02-CN	DIN 2353 fitting WH 8LL 1/8" BSP, Zn-Ni	-	100	In stock	Enquiry
HD-WH-08S-BE-04-CN	DIN 2353 fitting WH 8S 1/4" BSP, Zn-Ni	-	400	In stock	Enquiry
HD-WH-10L-BE-04-CN	DIN 2353 fitting WH 10L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WH-10S-BE-06-CN	DIN 2353 fitting WH 10S 3/8" BSP, Zn-Ni	-	400	In stock	Enquiry
HD-WH-12L-BE-04-CN	DIN 2353 fitting WH 12L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WH-12L-BE-06-CN	DIN 2353 fitting WH 12L 3/8" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WH-12S-BE-06-CN	DIN 2353 fitting WH 12S 3/8" BSP, Zn-Ni	-	400	In stock	Enquiry
HD-WH-14S-BE-08-CN	DIN 2353 fitting WH 14S 1/2" BSP, Zn-Ni	-	400	In stock	Enquiry
HD-WH-15L-BE-08-CN	DIN 2353 fitting WH 15L 1/2" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WH-16S-BE-08-CN	DIN 2353 fitting WH 16S 1/2" BSP, Zn-Ni	-	316	In stock	Enquiry
HD-WH-18L-BE-08-CN	DIN 2353 fitting WH 18L 1/2" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-WH-20S-BE-12-CN	DIN 2353 fitting WH 20S 3/4" BSP, Zn-Ni	-	316	In stock	Enquiry
HD-WH-22L-BE-12-CN	DIN 2353 fitting WH 22L 3/4" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WH-25S-BE-16-CN	DIN 2353 fitting WH 25S 1" BSP, Zn-Ni	-	250	In stock	Enquiry
HD-WH-28L-BE-16-CN	DIN 2353 fitting WH 28L 1" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WH-30S-BE-20-CN	DIN 2353 fitting WH 30S 1.1/4" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WH-35L-BE-20-CN	DIN 2353 fitting WH 35L 1.1/4" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WH-38S-BE-24-CN	DIN 2353 fitting WH 38S 1.1/2" BSP, Zn-Ni	-	160	In stock	Enquiry
HD-WH-42L-BE-24-CN	DIN 2353 fitting WH 42L 1.1/2" BSP, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 screw-in angular adjustable BANJO connector, type WH-BE: 24° DIN 2353 socket with external metric thread and external BSP thread (sealing DIN 3852 type E – elastomer gasket with rectangular cross-section). Safety factor 4:1. Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in salt spray chamber). Material: carbon steel, zinc-nickel.
