Is the Jamming ring D, carbon steel compatible with 24Â° socket DIN 2353 couplings in both LL and L/S series, and does galvanization affect fit or torque requirements?

Yes. The Jamming ring D, carbon steel is compatible with 24Â° socket DIN 2353 couplings in both LL (very light) and L/S (light/heavy) series . the product description explicitly lists availability for these series. Because the item is made of carbon steel and supplied galvanized, the coating should not prevent proper fit. However, galvanization adds a thin zinc layer that can slightly increase diameter or alter thread engagement tolerance in very tight fits; in standard DIN 2353 24Â° applications this is normally accounted for and does not require changes to specified tightening torque. Best practice: assemble with the parts as supplied and follow the coupling manufacturerâs recommended torque values; if assemblies are close-tolerance or you observe interference after galvanization, deburr or remove excess coating at mating surfaces and verify torque on a sample assembly.

Does the Jamming ring D, carbon steel fit 24Â° socket DIN 2353 couplings in LL and L/S series without additional sealing or adapters?

Yes. The Jamming ring D, carbon steel is specifically a locking ring for 24Â° socket DIN 2353 couplings and is offered for LL (very light) and L/S (light/heavy) series. Made of galvanized carbon steel and listed without additional designation, it is intended to fit those 24Â° socket DIN 2353 couplings directly, so no extra sealing or adapters are required when used with the matching LL or L/S series sockets.

Can Jamming ring D, carbon steel be used with 24Â° socket DIN 2353 couplings in LL and L/S series under high-pressure conditions?

Based on the provided description, Jamming ring D, carbon steel (galvanized) is listed for 24Â° socket DIN 2353 couplings available in LL (very light) and L/S (light/heavy) series but without a specific designation in the index. This indicates the part is intended for use with those series. However, two key considerations for high-pressure applications are material strength and design certification: carbon steel (galvanized) has suitable basic strength for many hydraulic fittings, but suitability at high pressures depends on the coupling seriesâ rated working pressure and any manufacturer guidance or certification for using a jamming/locking ring under those conditions. Since the description does not state pressure ratings or explicit approval for high-pressure service, you cannot assume compliance with high-pressure requirements solely from the listing. Recommended action: confirm the rated working pressure and compatibility with Jamming ring D, carbon steel for the specific LL or L/S coupling variant with the coupling manufacturer or technical datasheet before using in high-pressure applications.

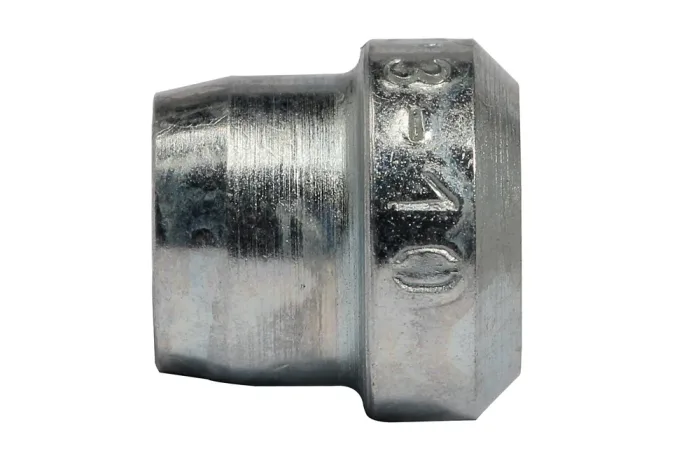

Jamming ring D, carbon steel

Additional information

Locking ring for 24° socket DIN 2353 couplings. Available as: LL (very light series) and L/S (light/heavy series), without designation in the index. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-D-04LL	4 mm locking ring	-	-	In stock	Enquiry
HD-D-06	6 mm locking ring	-	-	In stock	Enquiry
HD-D-06LL	6 mm locking ring	-	-	In stock	Enquiry
HD-D-08	8 mm locking ring	-	-	In stock	Enquiry
HD-D-08LL	8 mm locking ring	-	-	In stock	Enquiry
HD-D-10	10 mm locking ring	-	-	In stock	Enquiry
HD-D-12	12 mm locking ring	-	-	In stock	Enquiry
HD-D-14	14 mm locking ring	-	-	In stock	Enquiry
HD-D-15	15 mm locking ring	-	-	In stock	Enquiry
HD-D-16	16 mm locking ring	-	-	In stock	Enquiry
HD-D-18	18 mm locking ring	-	-	In stock	Enquiry
HD-D-20	20 mm locking ring	-	-	In stock	Enquiry
HD-D-22	22 mm locking ring	-	-	In stock	Enquiry
HD-D-25	25 mm locking ring	-	-	In stock	Enquiry
HD-D-28	28 mm locking ring	-	-	In stock	Enquiry
HD-D-30	30 mm locking ring	-	-	In stock	Enquiry
HD-D-35	35 mm locking ring	-	-	In stock	Enquiry
HD-D-38	38 mm locking ring	-	-	In stock	Enquiry
HD-D-42	42 mm locking ring	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Locking ring for 24° socket DIN 2353 couplings. Available as: LL (very light series) and L/S (light/heavy series), without designation in the index. Material: carbon steel, galvanized.
