Is the WE-BG adjustable angle screw connection, stainless steel rated for a 4:1 safety factor in both L (light) and S (heavy) series?

Yes. The WE-BG adjustable angle screw connection, stainless steel is specified with a safety factor of 4:1 and is available in both L (light) and S (heavy) series, so the 4:1 safety factor applies to both series.

Does the WE-BG adjustable angle screw connection, stainless steel, provide both BSP and metric thread sealing per ISO-1179 (G O-ring) in L and S series?

Yes. The WE-BG adjustable angle screw connection, stainless steel provides sealing for both BSP and metric external threads per ISO-1179 (type G O-ring with retaining ring) in both L (light) and S (heavy) series. The connection uses a 24Â° DIN 2353 socket with external metric and external BSP threads, sealed by the ISO-1179 G O-ring, and is available in L and S series with a 4:1 safety factor.

Can the WE-BG adjustable angle screw connection, stainless steel, be ordered with BSP or metric external threads separately for L and S series?

Yes. The WE-BG adjustable angle screw connection, stainless steel can be ordered with either external BSP or external metric threads, and you can specify different thread types for the L (light) and S (heavy) series independently. The product features a 24Â° DIN 2353 socket with external metric thread and external BSP thread (sealing ISOâ1179 type G. Oâring with retaining ring), is available in both L and S series, and is made of stainless steel with a 4:1 safety factor.

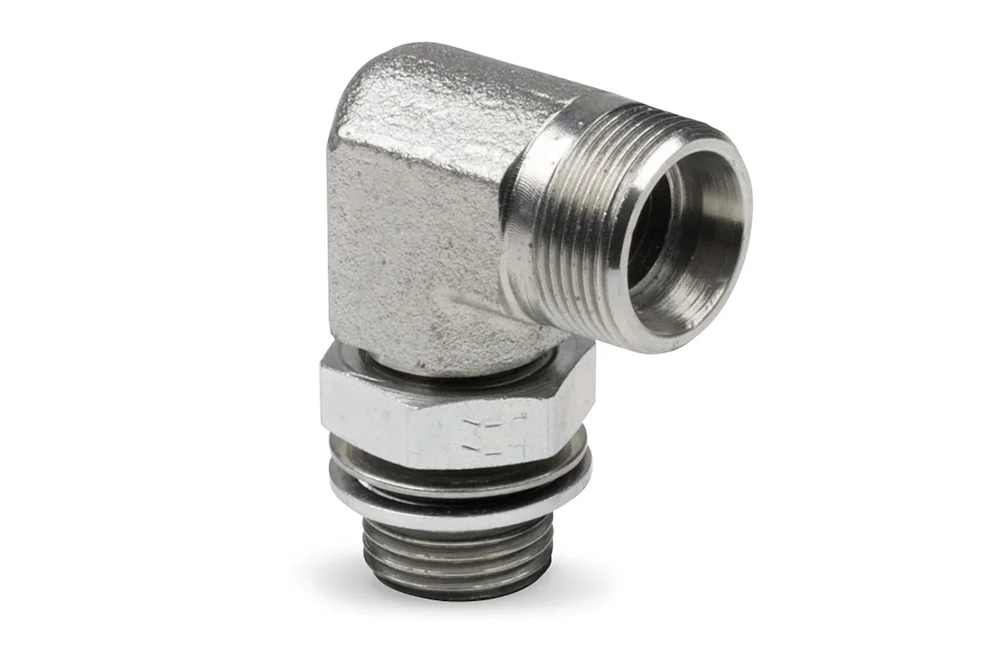

WE-BG adjustable angle screw connection, stainless steel

Additional information

Material	SS – stainless steel
Standard length [m]	10

Adjustable angled screw connection DIN 2353, type WE-BG: 24° DIN 2353 socket with external metric thread and external BSP thread (sealing ISO-1179 type G – O-ring with retaining ring). Safety factor 4:1. Available as: L (light series), S (heavy series). Material: stainless steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WE-06L-BG-02-SS	DIN 2353 fitting WE 6L 1/8" BSP, AISI 316	-	315	In stock	Enquiry
HD-WE-06S-BG-04-SS	DIN 2353 fitting WE 6S 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-WE-08L-BG-04-SS	DIN 2353 connector type WE 8L 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-WE-08S-BG-04-SS	DIN 2353 fitting WE 8S 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-WE-10L-BG-04-SS	DIN 2353 fitting WE 10L 1/4" BSP, AISI 316	-	315	In stock	Enquiry
HD-WE-10S-BG-06-SS	DIN 2353 fitting WE 10S 3/8" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-12L-BG-06-SS	DIN 2353 fitting WE 12L 3/8" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-12S-BG-06-SS	DIN 2353 fitting WE 12S 3/8" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-15L-BG-08-SS	DIN 2353 fitting WE 15L 1/2" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-16S-BG-08-SS	DIN 2353 fitting WE 16S 1/2" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-18L-BG-08-SS	DIN 2353 fitting WE 18L 1/2" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-20S-BG-12-SS	DIN 2353 fitting WE 20S 3/4" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-22L-BG-12-SS	DIN 2353 fitting WE 22L 3/4" BSP, AISI 316	-	160	In stock	Enquiry
HD-WE-25S-BG-16-SS	DIN 2353 fitting WE 25S 1" BSP, AISI 316	-	250	In stock	Enquiry
HD-WE-28L-BG-16-SS	DIN 2353 fitting WE 28L 1" BSP, AISI 316	-	160	In stock	Enquiry
HD-WE-30S-BG-20-SS	DIN 2353 fitting WE 30S 1.1/4" BSP, AISI 316	-	160	In stock	Enquiry
HD-WE-35L-BG-20-SS	DIN 2353 fitting WE 35L 1.1/4" BSP, AISI 316	-	160	In stock	Enquiry
HD-WE-38S-BG-24-SS	DIN 2353 fitting WE 38S 1.1/2" BSP, AISI 316	-	160	In stock	Enquiry
HD-WE-42L-BG-24-SS	DIN 2353 fitting WE 42L 1.1/2" BSP, AISI 316	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adjustable angled screw connection DIN 2353, type WE-BG: 24° DIN 2353 socket with external metric thread and external BSP thread (sealing ISO-1179 type G – O-ring with retaining ring). Safety factor 4:1. Available as: L (light series), S (heavy series). Material: stainless steel.
