What is the maximum working pressure for the EVLO asymmetrical adjustable tee fitting, stainless steel (AISI 316) in L and S series?

The maximum working pressure for the EVLO asymmetrical adjustable tee fitting, stainless steel (AISI 316) depends on the series: - L series (light): maximum working pressure up to 250 bar (depending on size). - S series (heavy): maximum working pressure up to 420 bar (depending on size). Actual allowable pressure varies with thread/size per DIN 2353 specifications and should be confirmed from the manufacturerâs size-specific pressure ratings and application conditions (temperature, medium, installation).

Are there specific installation torque values for the EVLO asymmetrical adjustable tee fitting, stainless steel (AISI 316) in L and S series?

No specific installation torque values are provided in the given DIN 2353 description for the EVLO asymmetrical adjustable tee fitting, stainless steel (AISI 316) in L and S series. DIN 2353 fittings are generally assembled by tightening the nut to create a metal-to-metal seal (24Â° cone) and compress the ferrule(s); however, exact torque depends on thread size, material, lubrication, and assembly practice. For safe and reliable installation of EVLO asymmetrical adjustable tee fitting, stainless steel (L or S), consult the manufacturerâs assembly instructions or use standard DIN 2353 installation procedures and recommended torque charts for the specific thread sizes and material. If unavailable, contact the supplier for precise torque values.

Can the EVLO asymmetrical adjustable tee fitting, stainless steel, be used with pneumatic systems or only hydraulic fluids?

The EVLO asymmetrical adjustable tee fitting, stainless steel (24Â° DIN 2353 socket with external thread and internal metric thread with O-ring, AISI 316, available in L and S series) is primarily designed for metal-tube connections per DIN 2353. Though its construction and materials (AISI 316 stainless steel and O-ring sealing) make it compatible with a wide range of media, its intended application is hydraulic systems. Use with pneumatic systems is possible in principle if operating pressures, temperatures and seal compatibility are respected: pneumatic systems typically operate at much lower pressures than hydraulics, so mechanically the fitting will be adequate. However, factors to verify before using the EVLO asymmetrical adjustable tee fitting, stainless steel in pneumatics include: - O-ring material compatibility with the gas (air, compressed gases, humidity, contaminants). Some O-ring compounds optimized for hydraulic oils may degrade with certain gases or drying air. - Sealing performance at the lower pressures and potential for leakage with gases (gases are less forgiving than liquids). Threaded DIN 2353 connections rely on metal-to-metal seating plus O-ring; ensure correct assembly and torque. - Operating pressure and temperature ratings of the selected series (L or S) and the O-ringâconfirm they meet the pneumatic systemâs maximum pressure and temperature. - Cleanliness and particulate requirements for pneumatics and any regulatory or breathing-air standards if used for breathing or instrument air. Conclusion: The EVLO asymmetrical adjustable tee fitting, stainless steel can be used with pneumatic systems provided the O-ring material and pressure/temperature ratings are compatible and proper assembly practices are followed. For critical or high-purity pneumatic applications, consult the manufacturerâs specifications and recommend a suitable O-ring compound or pneumatic-specific fitting if necessary.

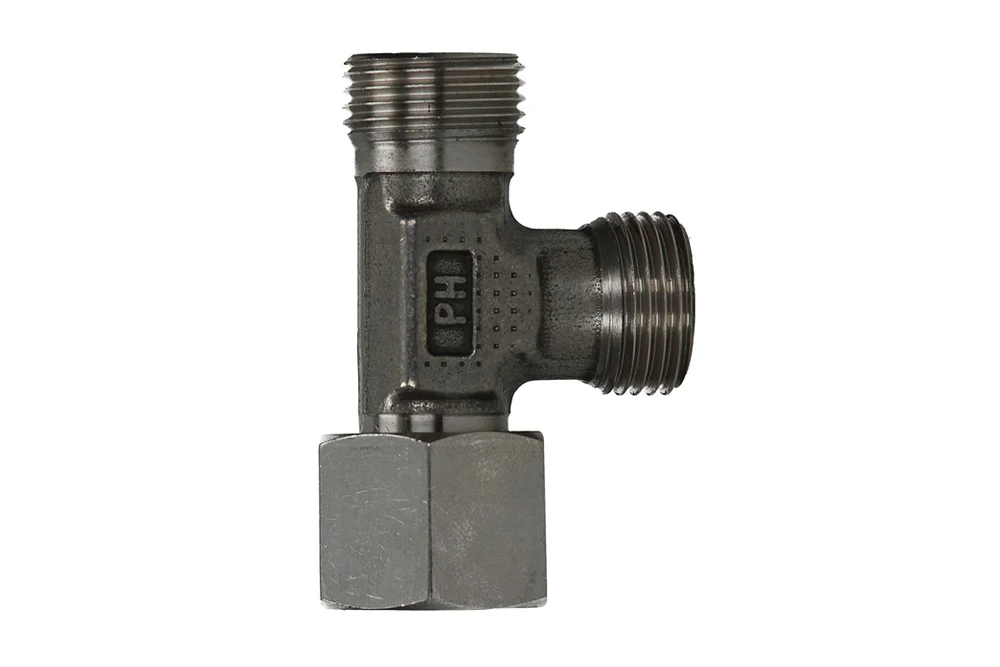

EVLO asymmetrical adjustable tee fitting, stainless steel

Additional information

Material	SS – stainless steel

DIN 2353 adjustable tee fitting, type EVLO asymmetrical: 24° DIN 2353 socket with external thread and internal metric thread with O-ring. Available as: L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-EVLO-06L-SS	DIN 2353 EVLO 6L fitting, AISI 316	-	500	In stock	Enquiry
HD-EVLO-06S-SS	DIN 2353 EVLO 6S fitting, AISI 316	-	800	In stock	Enquiry
HD-EVLO-08L-SS	DIN 2353 EVLO 8L fitting, AISI 316	-	500	In stock	Enquiry
HD-EVLO-08S-SS	DIN 2353 EVLO 8S fitting, AISI 316	-	800	In stock	Enquiry
HD-EVLO-10L-SS	DIN 2353 EVLO 10L fitting, AISI 316	-	500	In stock	Enquiry
HD-EVLO-10S-SS	DIN 2353 EVLO 10S fitting, AISI 316	-	800	In stock	Enquiry
HD-EVLO-12L-SS	DIN 2353 EVLO 12L fitting, AISI 316	-	400	In stock	Enquiry
HD-EVLO-12S-SS	DIN 2353 EVLO 12S fitting, AISI 316	-	630	In stock	Enquiry
HD-EVLO-14S-SS	DIN 2353 EVLO 14S fitting, AISI 316	-	630	In stock	Enquiry
HD-EVLO-15L-SS	DIN 2353 EVLO 15L fitting, AISI 316	-	400	In stock	Enquiry
HD-EVLO-16S-SS	DIN 2353 EVLO 16S fitting, AISI 316	-	630	In stock	Enquiry
HD-EVLO-18L-SS	DIN 2353 EVLO 18L fitting, AISI 316	-	400	In stock	Enquiry
HD-EVLO-20S-SS	DIN 2353 EVLO 20S fitting, AISI 316	-	420	In stock	Enquiry
HD-EVLO-22L-SS	DIN 2353 EVLO 22L fitting, AISI 316	-	250	In stock	Enquiry
HD-EVLO-25S-SS	DIN 2353 EVLO 25S fitting, AISI 316	-	420	In stock	Enquiry
HD-EVLO-28L-SS	DIN 2353 EVLO 28L fitting, AISI 316	-	250	In stock	Enquiry
HD-EVLO-30S-SS	DIN 2353 EVLO 30S fitting, AISI 316	-	420	In stock	Enquiry
HD-EVLO-35L-SS	DIN 2353 fitting EVLO 35L, AISI 316	-	250	In stock	Enquiry
HD-EVLO-38S-SS	DIN 2353 EVLO 38S fitting, AISI 316	-	420	In stock	Enquiry
HD-EVLO-42L-SS	DIN 2353 EVLO 42L fitting, AISI 316	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 adjustable tee fitting, type EVLO asymmetrical: 24° DIN 2353 socket with external thread and internal metric thread with O-ring. Available as: L (light series), S (heavy series). Material: AISI 316 steel.
