Is the EVWO adjustable angle fitting, carbon steel, compatible with standard 24Â° DIN 2353 hoses and O-rings for both L (light) and S (heavy) series?

Yes. The EVWO adjustable angle fitting, carbon steel is compatible with standard 24Â° DIN 2353 hoses and Oârings for both L (light) and S (heavy) series. It is a 24Â° DIN 2353 socket with external thread and internal metric thread with Oâring, and is supplied specifically in L (light series) and S (heavy series) versions, ensuring proper fit and sealing with the corresponding seriesâ hoses and Oârings.

Can the EVWO adjustable angle fitting, carbon steel, accept different metric internal thread sizes while maintaining seal with the 24Â° DIN 2353 O-ring?

Yes. The EVWO adjustable angle fitting, carbon steel can accept different metric internal thread sizes while maintaining a seal with the 24Â° DIN 2353 O-ring, provided the mating thread and seal groove are compatible with DIN 2353 dimensions and the correct O-ring size is used. The design-24Â° DIN 2353 socket with external thread and internal metric thread with O-ring-allows variation in internal metric thread sizes within the productâs specified range (L light series or S heavy series) as long as thread class, depths, and O-ring cross-section match the sealing requirements. For reliable sealing and safety, confirm the specific metric thread size, torque, and O-ring specification against the manufacturerâs technical data for the chosen series.

Does the EVWO adjustable angle fitting, carbon steel, require different installation torque for L vs S series to ensure O-ring sealing?

No. the EVWO adjustable angle fitting, carbon steel does not require different installation torque between the L (light) and S (heavy) series specifically to achieve Oâring sealing. Both series use the same 24Â° DIN 2353 socket geometry and the identical Oâring sealing principle; proper sealing depends primarily on correct Oâring condition, correct seating of the fitting, and applying sufficient torque to compress the Oâring evenly without damaging it. However, practical notes: - Follow the manufacturerâs recommended torque or tightening procedure for the specific fitting size and thread engagement; if no seriesâspecific values are given, use the standard torque for the thread size and material. - Do not overtighten: excessive torque can damage the Oâring or deform threads, compromising the seal. - Consider that the S (heavy) series may be designed for higher mechanical loads, but that does not change the Oâring compression requirementâif heavier clamping is needed for mechanical reasons, ensure the Oâring remains within its compression limits. - Use proper assembly practices: clean threads, correct lubrication if specified, and replace damaged Oârings. If exact torque values are required, consult the manufacturerâs torque tables for the specific thread size and carbon steel material.

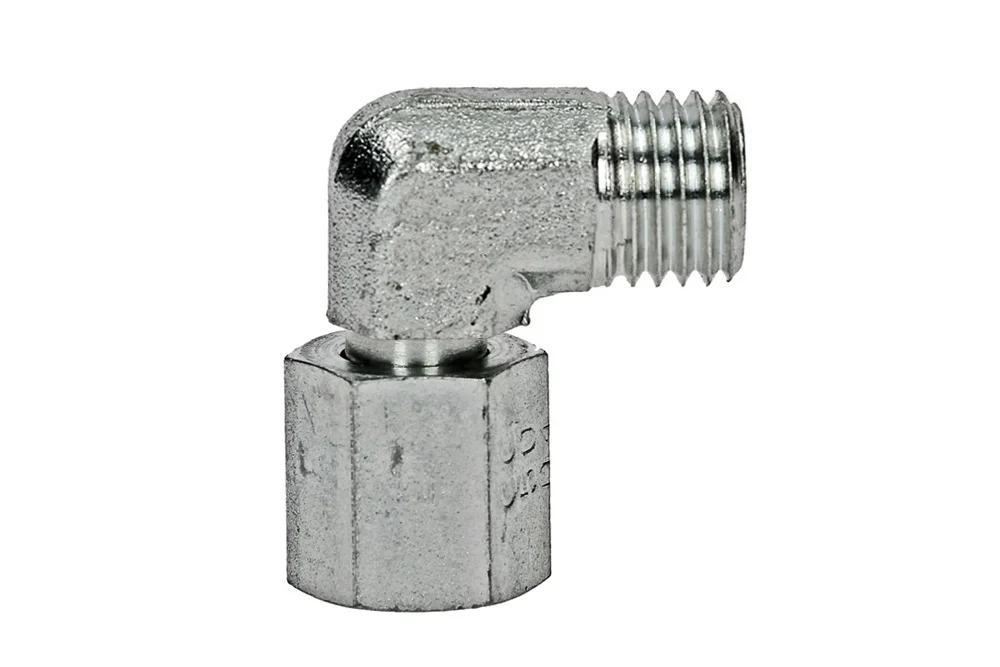

Fitting angled adjustable EVWO, carbon steel

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 angled adjustable, type EVWO: 24° DIN 2353 socket with male thread and with metric female thread with an O-ring. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-EVWO-06L	Fitting DIN 2353 EVWO 6L	-	315	In stock	Enquiry
HD-EVWO-06S	Fitting DIN 2353 EVWO 6S	-	630	In stock	Enquiry
HD-EVWO-08L	Fitting DIN 2353 EVWO 8L	-	315	In stock	Enquiry
HD-EVWO-08S	Fitting DIN 2353 EVWO 8S	-	630	In stock	Enquiry
HD-EVWO-10L	Fitting DIN 2353 EVWO 10L	-	315	In stock	Enquiry
HD-EVWO-10S	Fitting DIN 2353 EVWO 10S	-	630	In stock	Enquiry
HD-EVWO-12L	Fitting DIN 2353 EVWO 12L	-	315	In stock	Enquiry
HD-EVWO-12S	Fitting DIN 2353 EVWO 12S	-	630	In stock	Enquiry
HD-EVWO-14S	Fitting DIN 2353 EVWO 14S	-	630	In stock	Enquiry
HD-EVWO-15L	Fitting DIN 2353 EVWO 15L	-	315	In stock	Enquiry
HD-EVWO-16S	Fitting DIN 2353 EVWO 16S	-	400	In stock	Enquiry
HD-EVWO-18L	Fitting DIN 2353 EVWO 18L	-	315	In stock	Enquiry
HD-EVWO-20S	Fitting DIN 2353 EVWO 20S	-	400	In stock	Enquiry
HD-EVWO-22L	Fitting DIN 2353 EVWO 22L	-	160	In stock	Enquiry
HD-EVWO-25S	Fitting DIN 2353 EVWO 25S	-	400	In stock	Enquiry
HD-EVWO-28L	Fitting DIN 2353 EVWO 28L	-	160	In stock	Enquiry
HD-EVWO-30S	Fitting DIN 2353 EVWO 30S	-	400	In stock	Enquiry
HD-EVWO-35L	Fitting DIN 2353 EVWO 35L	-	160	In stock	Enquiry
HD-EVWO-38S	Fitting DIN 2353 EVWO 38S	-	315	In stock	Enquiry
HD-EVWO-42L	Fitting DIN 2353 EVWO 42L	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 angled adjustable, type EVWO: 24° DIN 2353 socket with male thread and with metric female thread with an O-ring. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.
