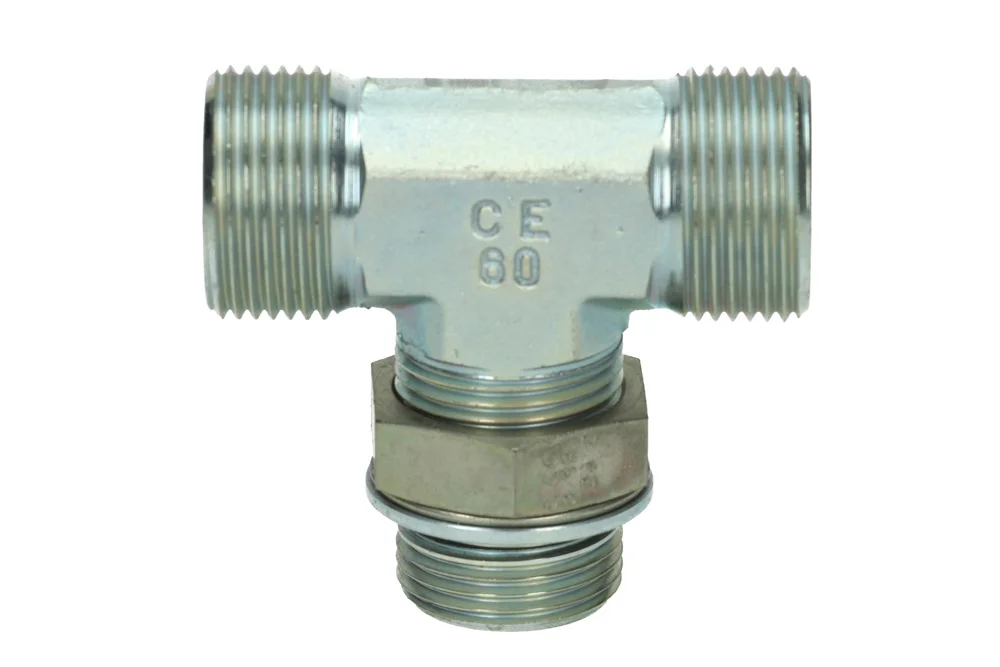

TE-MG adjustable screw connection tee, carbon steel

Additional information

Material	CS – steel (cast iron)

DIN 2353 screw-in adjustable tee fitting, type TE-MG: 24° DIN 2353 socket with external metric thread and external metric thread (sealing ISO-6149 type G – O-ring with retaining ring). Safety factor 4:1. Available as: L (light series), S (heavy series). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-TE-06L-MG-10	DIN 2353 fitting TE 6L M10x1	-	315	In stock	Enquiry
HD-TE-06S-MG-12	DIN 2353 fitting TE 6S M12x1.5	-	315	In stock	Enquiry
HD-TE-08L-MG-12	DIN 2353 fitting TE 8L M12x1.5	-	315	In stock	Enquiry
HD-TE-08S-MG-14	DIN 2353 fitting TE 8S M14x1.5	-	315	In stock	Enquiry
HD-TE-10L-MG-14	DIN 2353 fitting TE 10L M14x1.5	-	315	In stock	Enquiry
HD-TE-10S-MG-16	DIN 2353 fitting TE 10S M16x1.5	-	315	In stock	Enquiry
HD-TE-12L-MG-16	DIN 2353 fitting TE 12L M16x1.5	-	315	In stock	Enquiry
HD-TE-12S-MG-18	DIN 2353 fitting TE 12S M18x1.5	-	315	In stock	Enquiry
HD-TE-14S-MG-20	DIN 2353 fitting TE 14S M20x1.5	-	250	In stock	Enquiry
HD-TE-15L-MG-18	DIN 2353 fitting TE 15L M18x1.5	-	315	In stock	Enquiry
HD-TE-16S-MG-22	DIN 2353 fitting TE 16S M22x1.5	-	250	In stock	Enquiry
HD-TE-18L-MG-22	DIN 2353 fitting TE 18L M22x1.5	-	250	In stock	Enquiry
HD-TE-20S-MG-27	DIN 2353 fitting TE 20S M27x2	-	250	In stock	Enquiry
HD-TE-22L-MG-27	DIN 2353 fitting TE 22L M27x2	-	160	In stock	Enquiry
HD-TE-25S-MG-33	DIN 2353 fitting TE 25S M33x2	-	160	In stock	Enquiry
HD-TE-28L-MG-33	DIN 2353 fitting TE 28L M33x2	-	160	In stock	Enquiry
HD-TE-30S-MG-42	DIN 2353 fitting TE 30S M42x2	-	160	In stock	Enquiry
HD-TE-35L-MG-42	DIN 2353 fitting TE 35L M42x2	-	160	In stock	Enquiry
HD-TE-38S-MG-48	DIN 2353 fitting TE 38S M48x2	-	160	In stock	Enquiry
HD-TE-42L-MG-48	DIN 2353 fitting TE 42L M48x2	-	160	In stock	Enquiry
