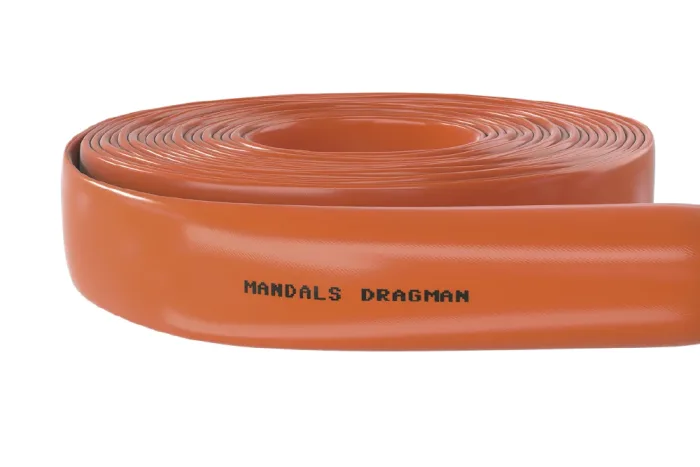

Agricultural flat hose for field fertilization DRAGMAN

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

65

Minimum operating temperature [°C]

-50

Vacuum resistance

no

Standard length [m]

200

Reinforcement

polyester braid

Strong, specialized drag hose for farmers designed for natural fertilization in crop production (manure and slurry fertilization). Used in comprehensive slurry spreading systems, including spreaders. In these solutions, the slurry is pumped using a hose from the tank to dispensers/tanks mounted on the tractor and then spread directly onto the soil surface. Extremely durable and long-lasting due to high-quality materials and construction. Reinforced with a circumferentially woven high-strength polyester braid bonded and surrounded by polyurethane in the original hot thermoplastic polyurethane extrusion process through braiding. Due to its high resistance to tensile stress, abrasion, punctures, weather conditions, UV radiation, and small bend radius, it is widely used for field fertilization. Also available in other versions: DRAGMAN EXTRA (with increased breaking strength), DRAGMAN PREMIUM (with increased abrasion resistance), and in longer lengths. Maximum working pressure for temporary use established according to a safety factor of 2:1 approved by the manufacturer (only for water and safe, non-flammable liquids). For maximum longevity, it is not recommended to exceed 1/3 of the bursting pressure and the specified breaking strength. Standard roll length: 200 m. Hose material: orange polyurethane (PU) pressed into high-strength polyester braid during hose extrusion. Working pressure: from 15 bar to 22.5 bar – depending on hose diameter and temperature. Operating temperature: from -50°C to +65°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MR-DRAGMAN-090DRAGMAN hose 90 mm9022.5In stock
Enquiry
MR-DRAGMAN-102DRAGMAN hose 102 mm10021In stock
Enquiry
MR-DRAGMAN-114DRAGMAN hose 114 mm11018In stock
Enquiry
MR-DRAGMAN-127DRAGMAN hose 127 mm12516In stock
Enquiry
MR-DRAGMAN-140DRAGMAN hose 140 mm14015In stock
Enquiry
MR-DRAGMAN-152DRAGMAN hose 152 mm15014In stock
Enquiry
MR-DRAGMAN-203DRAGMAN hose 203 mm20015In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Strong, specialized drag hose for farmers designed for natural fertilization in crop production (manure and slurry fertilization). Used in comprehensive slurry spreading systems, including spreaders. In these solutions, the slurry is pumped using a hose from the tank to dispensers/tanks mounted on the tractor and then spread directly onto the soil surface. Extremely durable and long-lasting due to high-quality materials and construction. Reinforced with a circumferentially woven high-strength polyester braid bonded and surrounded by polyurethane in the original hot thermoplastic polyurethane extrusion process through braiding. Due to its high resistance to tensile stress, abrasion, punctures, weather conditions, UV radiation, and small bend radius, it is widely used for field fertilization. Also available in other versions: DRAGMAN EXTRA (with increased breaking strength), DRAGMAN PREMIUM (with increased abrasion resistance), and in longer lengths. Maximum working pressure for temporary use established according to a safety factor of 2:1 approved by the manufacturer (only for water and safe, non-flammable liquids). For maximum longevity, it is not recommended to exceed 1/3 of the bursting pressure and the specified breaking strength. Standard roll length: 200 m. Hose material: orange polyurethane (PU) pressed into high-strength polyester braid during hose extrusion. Working pressure: from 15 bar to 22.5 bar – depending on hose diameter and temperature. Operating temperature: from -50°C to +65°C.

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

65

Minimum operating temperature [°C]

-50

Vacuum resistance

no

Standard length [m]

200

Reinforcement

polyester braid
