How do I adjust the Aluminium pneumatic throttling valve RFL B to regulate airflow equally in both directions?

To adjust the Aluminium pneumatic throttling valve RFL B so it regulates airflow equally in both directions, follow these steps: 1. Identify the bidirectional throttling mechanism: Aluminium pneumatic throttling valve RFL B is designed to regulate flow in both directions; each port incorporates a throttling spindle or needle that affects flow symmetrically. 2. Install correctly: Fit the valve in the line according to flow direction markings (if any). For bidirectional equal regulation, mount the valve in-line with the actuator so both supply and return lines pass through the valveâs body sections intended for throttling. 3. Set initial position: With system depressurized, turn the adjustment knob/spindle to a mid-position (approx. 50% closed) to provide room for fine tuning. 4. Balance adjustment procedure: - Pressurize the system to normal working pressure (up to 10 bar). - Operate the actuator slowly in one direction and adjust the valve until the desired speed is achieved. - Reverse the actuator and observe speed. If speed differs, make small equal incremental turns of the adjustment spindle while cycling the actuator back and forth, checking both directions after each adjustment. - Repeat until actuator speed is matched in both directions. 5. Fine-tuning tips: - Make very small adjustments; needle-type throttles are sensitive. - If available, use flow or speed measurement tools for precise matching. - Ensure no external leaks or pressure drops in supply lines; unequal supply pressure causes imbalance. - Consider temperature (up to +70Â°C) and working pressure variations (up to 10 bar) when finalizing settings. 6. Locking: Once balanced, secure the adjustment (locknut or cap) to prevent drift. 7. Maintenance: Periodically recheck settings and clean if contamination affects regulation. Material notes: body aluminum, housing brass. This procedure provides equal airflow regulation in both directions for the Aluminium pneumatic throttling valve RFL B across sizes M5â1/2".

Can Aluminium pneumatic throttling valve RFL B be used at full 10 bar pressure continuously without reduced lifespan?

Aluminium pneumatic throttling valve RFL B: based on the provided specifications (working pressure up to 10 bar, body aluminum, brass housing, operating temperature up to +70Â°C), the valve is rated for continuous use at 10 bar. However, continuous operation at the maximum rated pressure can accelerate wear-especially on internal sealing and moving parts-and may increase risk from pressure spikes, contaminants, or thermal cycles. To avoid reduced lifespan, follow manufacturer recommendations: use clean, dry air; maintain proper filtration and lubrication; avoid frequent full-range cycling or pressure surges; ensure operating temperature stays within limits. If long-term continuous service at 10 bar is critical, consult the manufacturer for duty-cycle limits, material compatibility, and maintenance intervals or consider a valve with an explicit continuous-duty rating above 10 bar.

Does Aluminium pneumatic throttling valve RFL B require specific maintenance intervals to ensure reliable bidirectional flow control?

Aluminium pneumatic throttling valve RFL B does benefit from periodic maintenance to ensure reliable bidirectional flow control. Recommended practices: - Inspection interval: visually check every 3â6 months for external damage, corrosion on aluminum body or brass housing, and secure fittings; adjust frequency based on operating environment (more often in dirty, humid, or corrosive conditions). - Functional check: every 6â12 months verify smooth bidirectional regulationâoperate through full range and confirm consistent, repeatable actuator speed control without sticking or drift. - Cleaning: if contamination or particulate ingress is likely, clean ports and orifices during inspections; use dry, oil-free compressed air or appropriate solvent compatible with aluminum and brass. - Seals and internal parts: inspect and replace wear items (O-rings, seats) annually or sooner if leaks or degraded performance appear. - Lubrication: follow system lubrication practiceâif using lubricated air, ensure oil quality and amount are controlled; avoid incompatible lubricants that may attack seals or housing. - Pressure and temperature limits: ensure operation remains within specified limits (up to 10 bar, up to +70Â°C); excursions can accelerate wear and require more frequent checks. - Connections and mounting: tighten fittings and check for vibration or misalignment at each inspection to prevent leaks or mechanical stress. Following these intervals and checks will help maintain stable bidirectional flow control and extend service life of the Aluminium pneumatic throttling valve RFL B.

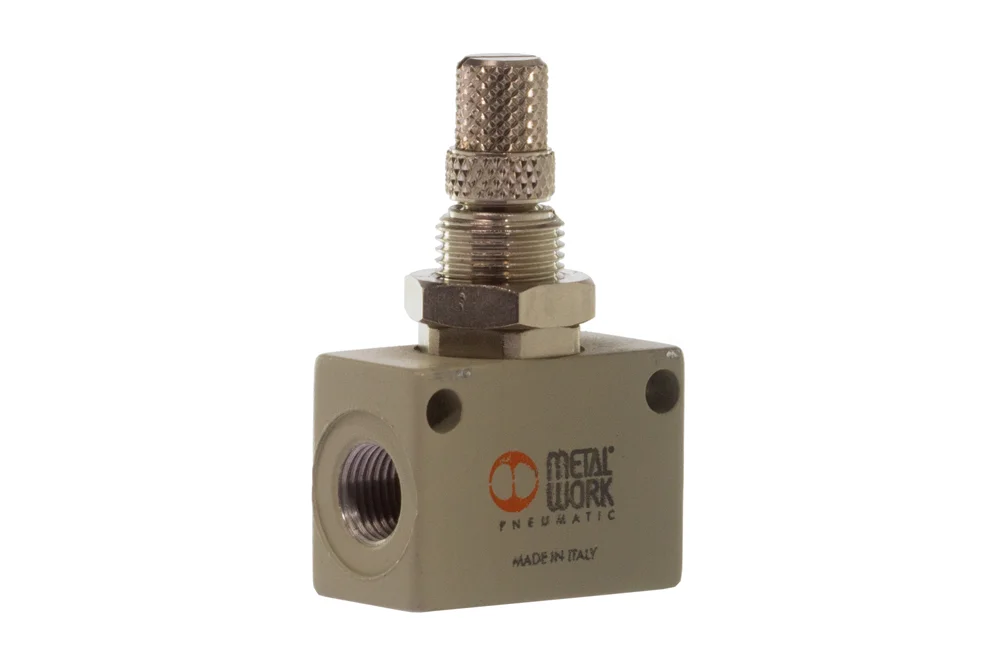

Valve throttle pneumatic aluminum RFL B

All products, Pneumatic valves/

Additional information

Material	AL – aluminum

Valve throttle series RFL type B, regulating value flow air in obu directions. is used to adjustment speed working devices actuator in systems pneumatic. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. pressure working: up to 10 bar. Operating temperature: up to +70°C. Material the body: aluminum. Material housing: brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9041201	Throttle valve RFL B, M5 female	-	10	In stock	Enquiry
MW-9041202	Throttle valve RFL B, 1/8" BSP female	-	10	In stock	Enquiry
MW-9041203	Throttle valve RFL B, 1/4" BSP female	-	10	In stock	Enquiry
MW-9041204	Throttle valve RFL B, 3/8" BSP female	-	10	In stock	Enquiry
MW-9041205	Throttle valve RFL B, 1/2" BSP female	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Valve throttle series RFL type B, regulating value flow air in obu directions. is used to adjustment speed working devices actuator in systems pneumatic. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. pressure working: up to 10 bar. Operating temperature: up to +70°C. Material the body: aluminum. Material housing: brass.
