How does the Pneumatic shut-off valve brass VCS 3/2 operate to switch between pressurizing and venting the system at up to 10 bar?

Pneumatic shut-off valve brass VCS 3/2 operates as a 3/2-way switching and venting valve for pneumatic systems up to 10 bar. Its main parts include a control sleeve (actuator), inlet and outlet ports, and an exhaust port. - When the control sleeve is moved forward, the internal passage aligns to connect the pressure inlet to the system outlet, allowing compressed air to pressurize the pneumatic circuit (pressurizing position). - When the control sleeve is pulled back, the internal connection to the pressure inlet closes and the system outlet is opened to the exhaust port, allowing the system to vent to atmosphere (venting position). Constructed from chrome-plated brass, the VCS 3/2 is rated for working pressures up to 10 bar and designed to function across temperatures from â10 Â°C to +80 Â°C, ensuring reliable switching between pressurization and venting in typical industrial environments.

Can Pneumatic shut-off valve brass VCS 3/2 be used continuously at 10 bar and -10Â°C to +80Â°C without reducing performance?

Yes. The Pneumatic shut-off valve brass VCS 3/2 is specified for a working pressure of 10 bar and an operating temperature range of -10Â°C to +80Â°C, so it can be used continuously at those conditions without reducing performance, provided installation and maintenance follow manufacturer recommendations and the media, duty cycle and surrounding environment do not introduce factors (corrosion, abrasion, chemical attack, extreme cycling, or temperatures beyond the stated range) that could impair operation.

Is Pneumatic shut-off valve brass VCS 3/2 compatible with common pneumatic fittings and threads?

Pneumatic shut-off valve brass VCS 3/2 is built with a chromeâplated brass body and rated for typical pneumatic conditions (working pressure up to 10 bar, temperature range â10Â°C to +80Â°C). To determine compatibility with common pneumatic fittings and threads, consider these points: - Thread type and size: The description does not specify port thread standards (e.g., BSP, BSPT, NPT, metric, or pushâin fitting sizes). Compatibility depends directly on the valveâs actual port thread specification. - Material compatibility: The chromeâplated brass body is generally compatible with standard brass, nylon, polyurethane, and PTFE fittings; it resists corrosion and suits typical pneumatic media (compressed air). - Pressure and temperature: 10 bar and â10â¦+80Â°C are within the range of common pneumatic fittings, so standard fittings rated for industrial compressed air should be acceptable. - Sealing method: Whether the ports require thread sealant (PTFE tape, Oârings) depends on the thread type; tapered threads (NPT) need tape/sealant, parallel threads (BSPP, metric) may use Oârings or gasket. - Actuation and installation: The manual control sleeve and valve orientation should allow fitting of common connectors if physical clearance and port locations match your fittings. Conclusion: Pneumatic shut-off valve brass VCS 3/2 is likely compatible with common pneumatic fittings and threads in terms of material, pressure, and temperature, but final compatibility requires confirming the valveâs exact port thread type and size. Verify the valveâs datasheet or supplier for thread standard (BSP/NPT/metric) and recommended sealing method before selecting fittings.

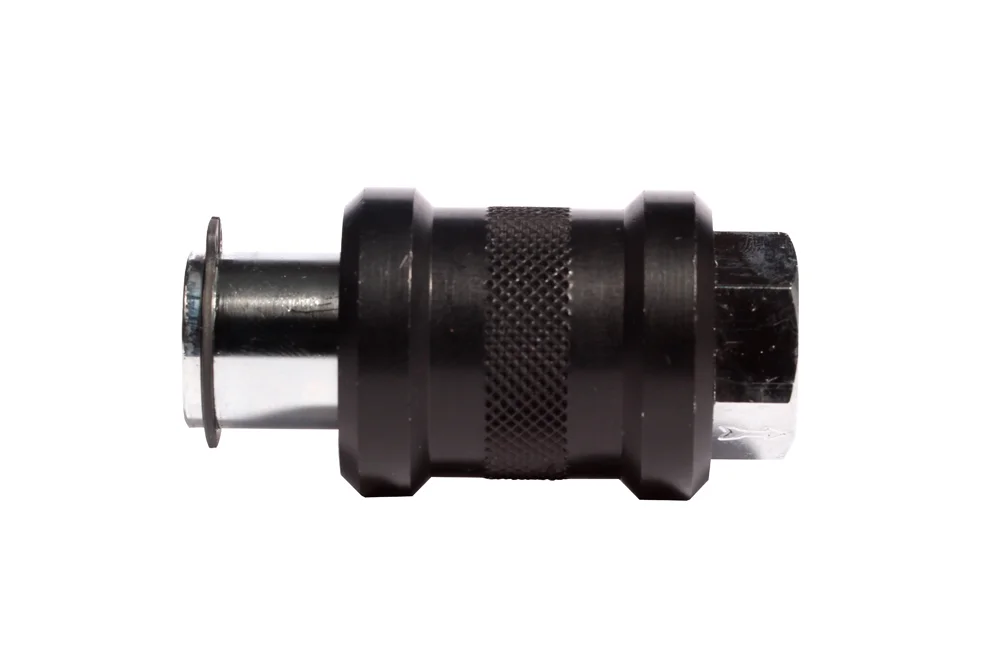

Pneumatic shut-off valve brass VCS 3/2

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

3/2 shut-off valve used as a switching and venting valve for the pneumatic system. When the control sleeve is moved back, the pneumatic system is vented, and when the sleeve is moved forward, the pneumatic system is pressurized. Working pressure: 10 bar. Operating temperature: from -10°C to +80°C. Body material: chrome-plated brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0970050001	VCS 3/2 sliding shut-off valve, BSP thread 1/8	-	10	In stock	Enquiry
MW-W0970050002	VCS 3/2 sliding shut-off valve, BSP thread 1/4	-	10	In stock	Enquiry
MW-W0970050003	VCS 3/2 sliding shut-off valve, BSP thread 3/8	-	10	In stock	Enquiry
MW-W0970050004	VCS 3/2 sliding shut-off valve, BSP thread 1/2	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

3/2 shut-off valve used as a switching and venting valve for the pneumatic system. When the control sleeve is moved back, the pneumatic system is vented, and when the sleeve is moved forward, the pneumatic system is pressurized. Working pressure: 10 bar. Operating temperature: from -10°C to +80°C. Body material: chrome-plated brass.
