Can Angle connector for pipes, brass, type AI 13260 be used with both metal and plastic pipes (e.g., polyamide) within the 4â22 mm diameter range while meeting EN 1254-2 standards?

Yes. Angle connector for pipes, brass, type AI 13260 is specified for connecting copper, brass, steel, aluminum and plastic pipes and hoses (e.g., polyamide) with external diameters from 4 to 22 mm. The connection achieves tightness by compressing a ring onto the pipe and pressing the pipe with the ring into the socket using a nut. The product description lists Standard: EN 1254-2, so when installed according to manufacturer instructions and using compatible pipes and fittings, Angle connector for pipes, brass, type AI 13260 can be used with both metal and plastic pipes (including polyamide) in the 4â22 mm range while meeting EN 1254-2 requirements.

Is the Angle connector for pipes, brass, type AI 13260 compatible with hoses and polyamide tubing within 4â22 mm while ensuring leakproof connections?

Yes. Angle connector for pipes, brass, type AI 13260 is compatible with hoses and polyamide tubing with external diameters from 4 to 22 mm. It provides leakproof connections by compressing a ring onto the connected pipe/hose and pressing the assembly into the socket with a nut (compression fitting). Made of brass and manufactured to EN 1254-2, it is suitable for copper, brass, steel, aluminum pipes, as well as plastic pipes and hoses (including polyamide).

Does Angle connector for pipes, brass, type AI 13260 require specific sealing rings for different pipe materials (4â22 mm)?

Angle connector for pipes, brass, type AI 13260 does not require different sealing rings for different pipe materials within the specified diameter range (4â22 mm). Its tightness is achieved by a compressible ring that is clamped onto the pipe and simultaneously pressed into the socket by the nut, providing a metal-to-metal/compression seal suitable for copper, brass, steel, aluminum and many plastics (e.g., polyamide). Because the design relies on compression of the ring onto the pipe OD rather than a material-specific profile, the same type of ring is intended to work across the listed materials and diameters, provided the ring size matches the pipe outer diameter and installation follows EN 1254-2. For plastic pipes, ensure the pipe OD is within the supported range and follow any manufacturer guidance (e.g., support sleeves or insertion depth) to avoid deformation; use the correct ring size for the exact pipe OD.

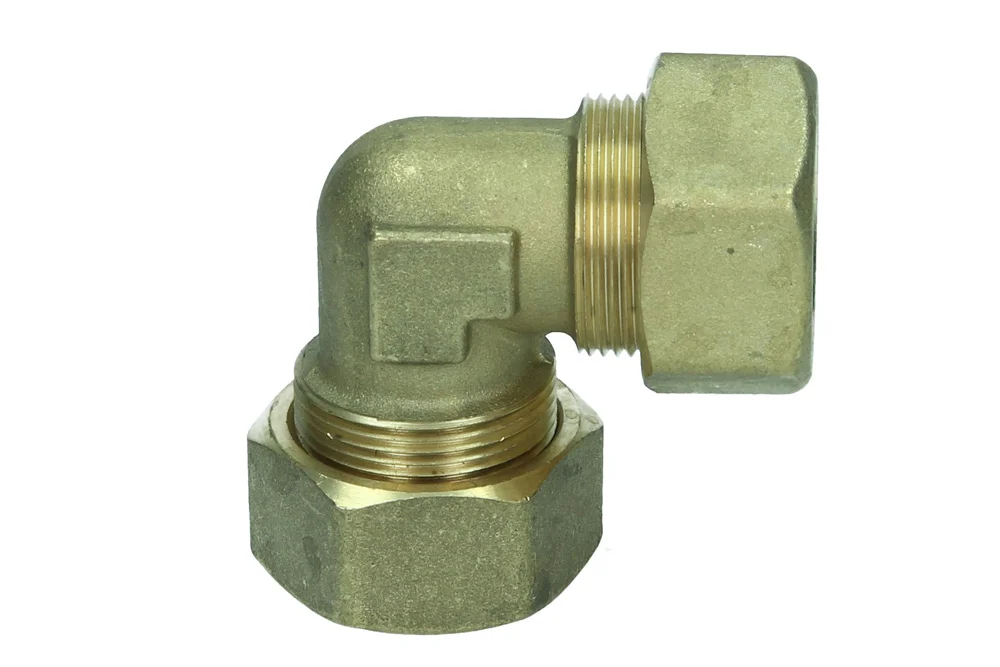

Angled connector for pipes, brass, type AI 13260

All products, Low-pressure fittings and adapters/

Additional information

Material	B – brass (bronze)

Brass Angled connector type AI 13260 intended for joining copper, brass, steel, aluminum, etc. pipes as well as plastic pipes and hoses (e.g. polyamide). Range of external diameters of the joined pipes from 4 to 22 mm. The tightness of the connection is achieved by clamping the ring onto the joined pipe and simultaneously pressing the pipe with the ring into the socket by means of a nut. Standard: EN 1254-2. Material: brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-13260-04	Fitting angled 90°, tube 4 mm	-	150	In stock	Enquiry
AI-13260-06	Fitting angled 90°, tube 6 mm	-	150	In stock	Enquiry
AI-13260-08	Fitting angled 90°, tube 8 mm	-	135	In stock	Enquiry
AI-13260-10	Fitting angled 90°, tube 10 mm	-	95	In stock	Enquiry
AI-13260-12	Fitting angled 90°, tube 12 mm	-	75	In stock	Enquiry
AI-13260-14	Fitting angled 90°, tube 14 mm	-	100	In stock	Enquiry
AI-13260-15	Fitting angled 90°, tube 15 mm	-	95	In stock	Enquiry
AI-13260-16	Fitting angled 90°, tube 16 mm	-	95	In stock	Enquiry
AI-13260-18	Fitting angled 90°, tube 18 mm	-	70	In stock	Enquiry
AI-13260-22	Fitting angled 90°, tube 22 mm	-	70	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Brass Angled connector type AI 13260 intended for joining copper, brass, steel, aluminum, etc. pipes as well as plastic pipes and hoses (e.g. polyamide). Range of external diameters of the joined pipes from 4 to 22 mm. The tightness of the connection is achieved by clamping the ring onto the joined pipe and simultaneously pressing the pipe with the ring into the socket by means of a nut. Standard: EN 1254-2. Material: brass.
