Is the Angle fitting W, stainless steel (AISI 316) available in LL, L, and S series with 24Â° DIN 2353 socket and external metric threads on both sides?

Yes. Angle fitting W, stainless steel is available in LL, L, and S series with a 24Â° DIN 2353 socket and external metric threads on both sides; material: AISI 316 steel.

Does the Angle fitting W, stainless steel (AISI 316) with 24Â° DIN 2353 sockets and external metric threads on both sides meet pressure ratings for LL, L, and S series?

Yes. The Angle fitting W, stainless steel (AISI 316) with 24Â° DIN 2353 sockets and external metric threads on both sides is available and rated for the LL (very light), L (light) and S (heavy) series; each series corresponds to its respective pressure rating per DIN 2353. Ensure you select the correct series (LL, L or S) to match the required operating pressure and verify dimensions and test certifications for your application.

Can the Angle fitting W, stainless steel be supplied with custom thread lengths or special plating options?

Yes. Angle fitting W, stainless steel can be supplied with custom thread lengths or special plating options, but availability depends on manufacturer capabilities and order volume. The standard product is a 24Â° DIN 2353 socket with external metric thread on both sides, made in AISI 316 and offered in series LL, L, and S. Because AISI 316 is corrosionâresistant, itâs typically supplied unplated; however, many suppliers will accommodate special requests such as modified thread lengths, additional corrosion protection (e.g., passivation, electropolishing), or bespoke coatings if specified at order. Customization considerations: - Thread length: Shortened or extended external metric thread lengths can often be produced, but may require minimum order quantities, lead time extensions, and engineering approval to ensure sealing and mechanical integrity with mating components. - Plating/coating: Standard AISI 316 resists corrosion well; optional finishes (passivation, electropolishing, or specialty coatings) may be offered. Conventional electroplating (zinc, cadmium) is uncommon on 316 due to adhesion and corrosion concerns; discuss desired performance to identify suitable treatments. - Series impact: Any modification should respect the chosen series (LL, L, S) strength and dimensions per DIN 2353; heavy alterations might affect pressure ratings or compatibility. - Certification and testing: Request material certificates (e.g., EN 10204 3.1), dimensional drawings, and tests (pressure/leak) when ordering custom parts. - Lead time and MOQ: Expect longer lead times and potential minimum order quantities for nonstandard threads or special treatments. To proceed, provide your required thread lengths, plating/coating specification, intended application (pressure, media, temperature), and required certifications so the supplier can confirm feasibility, pricing, and lead time.

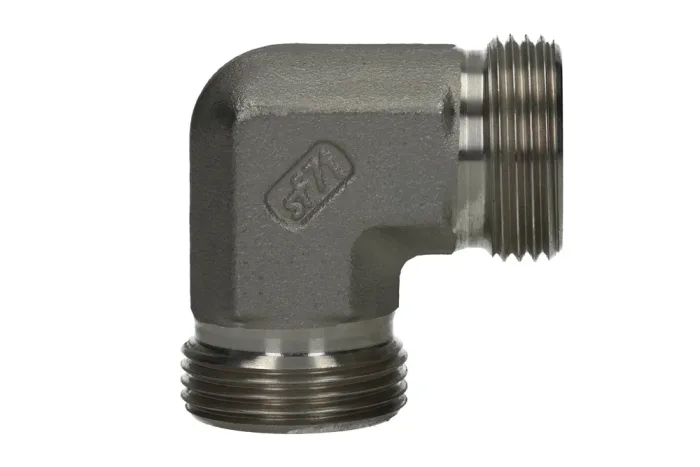

Angle fitting W, stainless steel

Additional information

Material	SS – stainless steel

DIN 2353 angled fitting, type W: 24° DIN 2353 socket with external metric thread on both sides. Available as: LL (very light series), L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-W-06L-SS	DIN 2353 fitting W 6L, AISI 316	-	500	In stock	Enquiry
HD-W-06LL-SS	DIN 2353 fitting W 6LL, AISI 316	-	100	In stock	Enquiry
HD-W-06S-SS	DIN 2353 fitting W 6S, AISI 316	-	800	In stock	Enquiry
HD-W-08L-SS	DIN 2353 fitting W 8L, AISI 316	-	500	In stock	Enquiry
HD-W-08S-SS	DIN 2353 fitting W 8S, AISI 316	-	800	In stock	Enquiry
HD-W-10L-SS	DIN 2353 fitting W 10L, AISI 316	-	500	In stock	Enquiry
HD-W-10S-SS	DIN 2353 fitting W 10S, AISI 316	-	800	In stock	Enquiry
HD-W-12L-SS	DIN 2353 fitting W 12L, AISI 316	-	400	In stock	Enquiry
HD-W-12S-SS	DIN 2353 fitting W 12S, AISI 316	-	630	In stock	Enquiry
HD-W-14S-SS	DIN 2353 fitting W 14S, AISI 316	-	630	In stock	Enquiry
HD-W-15L-SS	DIN 2353 fitting W 15L, AISI 316	-	400	In stock	Enquiry
HD-W-16S-SS	DIN 2353 fitting W 16S, AISI 316	-	630	In stock	Enquiry
HD-W-18L-SS	DIN 2353 fitting W 18L, AISI 316	-	400	In stock	Enquiry
HD-W-20S-SS	DIN 2353 fitting W 20S, AISI 316	-	420	In stock	Enquiry
HD-W-22L-SS	DIN 2353 fitting W 22L, AISI 316	-	250	In stock	Enquiry
HD-W-25S-SS	DIN 2353 fitting W 25S, AISI 316	-	420	In stock	Enquiry
HD-W-28L-SS	DIN 2353 fitting W 28L, AISI 316	-	250	In stock	Enquiry
HD-W-30S-SS	DIN 2353 fitting W 30S, AISI 316	-	420	In stock	Enquiry
HD-W-35L-SS	DIN 2353 fitting W 35L, AISI 316	-	250	In stock	Enquiry
HD-W-38S-SS	DIN 2353 fitting W 38S, AISI 316	-	420	In stock	Enquiry
HD-W-42L-SS	DIN 2353 fitting W 42L, AISI 316	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 angled fitting, type W: 24° DIN 2353 socket with external metric thread on both sides. Available as: LL (very light series), L (light series), S (heavy series). Material: AISI 316 steel.
