Is the Angled air manifold 5xGW BSP with attachment, brass, type EW suitable for use at 63 bar and temperatures from -10Â°C to +90Â°C?

Yes. According to the product description, the Angled air manifold 5xGW BSP with attachment, brass, type EW is made of brass and is specified for a working pressure up to 63 bar and an operating temperature range from -10Â°C to +90Â°C. Therefore it is suitable for use at 63 bar and within the temperature range â10Â°C to +90Â°C.

Can the Angled air manifold 5xGW BSP with attachment, brass, type EW be used for compressed air lines in hazardous environments?

Angled air manifold 5xGW BSP with attachment, brass, type EW is designed for air distribution with internal BSP threads, brass construction, working pressure up to 63 bar and operating temperature -10Â°C to +90Â°C. However, the provided description does not state any ATEX/IECEx or other hazardous-area certification, nor specifies suitability for flammable gases, explosive atmospheres or intrinsic safety. Therefore you should NOT assume it is approved for compressed air lines in hazardous environments. Use only if the product has explicit hazardous-area certification or after consulting the manufacturer and relevant safety/inspection authority to confirm compliance with applicable explosion-proof standards.

Does the Angled air manifold 5xGW BSP with attachment, brass, type EW support installation in vertical or horizontal orientations?

The Angled air manifold 5xGW BSP with attachment, brass, type EW can be installed in either vertical or horizontal orientations. The product description (brass construction, internal BSP threads, working pressure up to 63 bar, operating temperature -10Â°C to +90Â°C) does not specify an orientation restriction, so standard practice allows mounting in both positions provided that: - The manifold is securely supported to prevent stress on the threads and attached fittings. - Attached piping and connected components are compatible with the stated pressure and temperature limits. - Any condensate or drainage considerations for compressed air systems are managed (e.g., draining low points or using appropriate filters/traps) when mounted horizontally or vertically. If the installation involves unusual loads, vibration, or specific system requirements, consult the manufacturerâs installation guidance or technical support for confirmation.

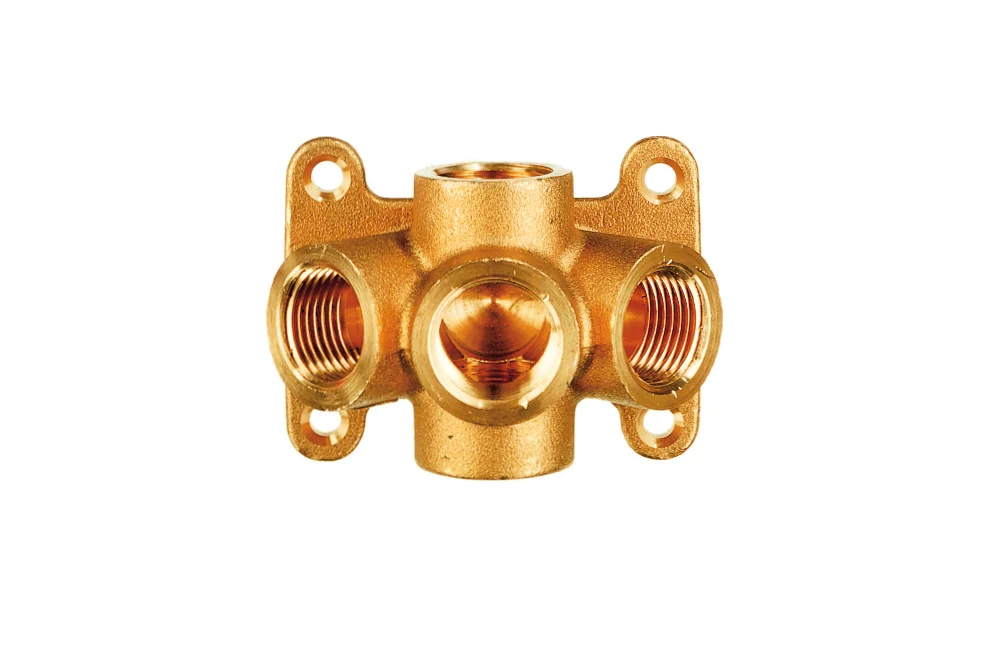

Angled air manifold 5xGW BSP with attachment, brass, type EW

Additional information

Material	B – brass (bronze)

Angle distributor with internal BSP threads for air distribution mounting. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EW-MS-12159	Angular air distributor 5 x GW 1/2" BSP, with mounting, brass	-	63	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Angle distributor with internal BSP threads for air distribution mounting. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10°C to +90°C.
