Is the Ball valve for gas with aluminum butterfly with BSP thread, type 7164 compatible with LPG and natural gas at MOP 5-20?

Yes. Ball valve for gas with aluminum butterfly with BSP thread, type 7164 is compatible with LPG and natural gas at MOP 5â20. The product description explicitly states it is intended for gas installations and is rated in pressure class MOP 5â20. It complies with PED 2014/68/EU and Gas Appliance Directive 2009/142/EC and meets EN 331 + A1, which cover gas service requirements. Materials and seals.nickelâplated brass body, chromeâplated brass ball, PTFE ball sealing, and FKM + NBR stem sealing.are suitable for LPG and natural gas within the specified operating temperature range (â20Â°C to +60Â°C). Connection is BSP thread and the lever is aluminum, as stated.

Can Ball valve for gas with aluminum butterfly with BSP thread, type 7164 be used in mixed gas systems (LPG + natural gas) at MOP 5-20?

Yes. Ball valve for gas with aluminum butterfly with BSP thread, type 7164 can be used in mixed gas systems (LPG + natural gas) at MOP 5-20. It is intended for gas installations, rated MOP 5-20, and complies with PED 2014/68/EU, 2009/142/EC and EN 331 + A1. Materials and seals are suitable for common gas service: nickel-plated brass body, chrome-plated brass ball, PTFE ball sealing, stem sealing FKM + NBR, and operating temperature -20Â°C to +60Â°C. Ensure compatibility with specific gas mixture, verify threads and pressure drop requirements, and follow local regulations and installer/manufacturer guidance for mixed-gas applications.

Does Ball valve for gas with aluminum butterfly with BSP thread, type 7164 meet PED and EN 331+A1 for MOP 5-20?

Yes. Ball valve for gas with aluminum butterfly with BSP thread, type 7164 meets PED and EN 331+A1 for MOP 5-20. Justification (based on the provided description): - The product is explicitly described as "intended for gas installations, in pressure class MOP 5-20." - The description states it "Complies with the requirements of the PED directive 2014/68/EU and 2009/142/EC, in accordance with standard EN 331 + A1." - Materials and construction (nickel-plated brass body, chromeâplated brass ball, PTFE sealing, FKM + NBR stem seals, BSP thread) and the stated operating temperature range (-20Â°C to +60Â°C) are consistent with typical requirements for gas service and EN 331 conformity for valves within the MOP 5â20 bar range. Therefore, based on the provided specification, Ball valve for gas with aluminum butterfly with BSP thread, type 7164 conforms to PED 2014/68/EU and EN 331+A1 for MOP 5â20.

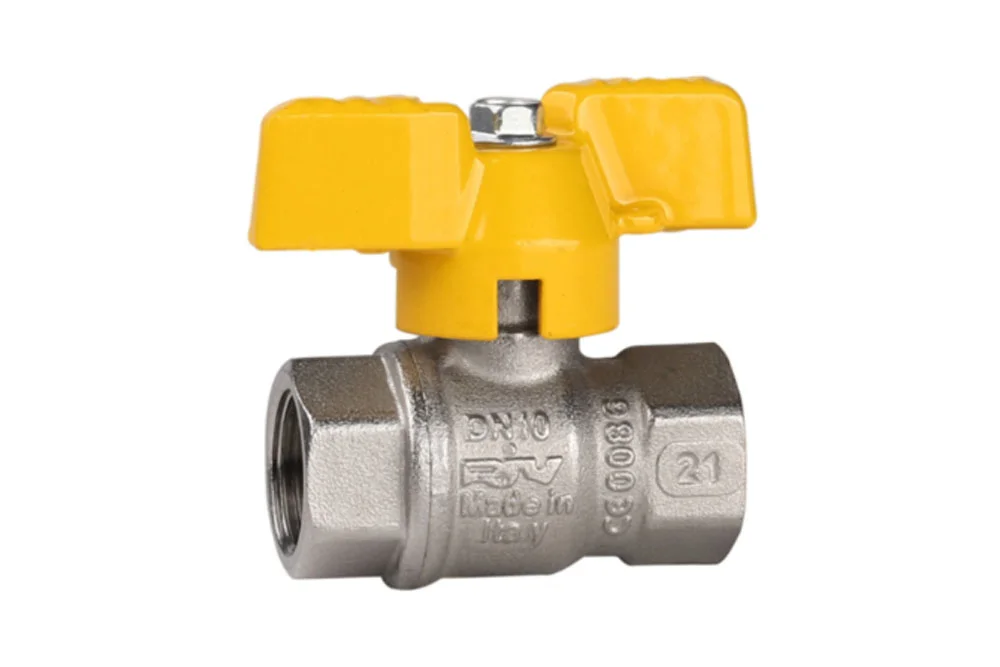

Ball valve for gas with a butterfly handle aluminum with female thread BSP, type 7164

All products, Ball valves/

Additional information

Material	B – brass (bronze)

Universal ball valve type 7164 with full bore, intended for installations gas, in class pressure MOP 5-20. Meets the requirements of the PED 2014/68/EU directive and 2009/142/WE, compliant with the standard EN 331 + A1. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. connection: BSP female. Operating temperature: from -20°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RV-7164-06	Valve ball for gas type 7164 1/4" BSP female, brass, butterfly lever aluminum	-	5	In stock	Enquiry
RV-7164-10	Valve ball for gas type 7164 3/8" BSP female, brass, butterfly lever aluminum	-	5	In stock	Enquiry
RV-7164-13	Valve ball for gas type 7164 1/2" BSP female, brass, butterfly lever aluminum	-	5	In stock	Enquiry
RV-7164-19	Valve ball for gas type 7164 3/4" BSP female, brass, butterfly lever aluminum	-	5	In stock	Enquiry
RV-7164-25	Valve ball for gas type 7164 1" BSP female, brass, butterfly lever aluminum	-	5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal ball valve type 7164 with full bore, intended for installations gas, in class pressure MOP 5-20. Meets the requirements of the PED 2014/68/EU directive and 2009/142/WE, compliant with the standard EN 331 + A1. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. connection: BSP female. Operating temperature: from -20°C to +60°C.
