Is the Stainless steel ball valve with BSP thread, type 2017K suitable for steam service up to 200Â°C and what pressure limits apply at that temperature?

Yes. Stainless steel ball valve with BSP thread, type 2017K is suitable for steam service up to 200Â°C, provided the steam is compatible with the valve materials (stainless steel CF8M body/ball, AISI 304 lever) and PTFE/RTFE seals. The specified operating temperature range is -20Â°C to +200Â°C. Pressure limits at elevated temperature depend on the valveâs pressureâtemperature ratings for the CF8M body and the PTFE seals. General guidance: - At ambient temperatures the valve will typically hold its nominal rated working pressure (refer to the manufacturerâs PN or psi rating for the specific size). - As temperature approaches 200Â°C, the allowable pressure is reduced because PTFE/RTFE softens and material strength changes; PTFE seal performance becomes limiting near 200Â°C. You must consult the manufacturerâs pressureâtemperature chart or technical datasheet for exact allowable pressures at 200Â°C for the specific valve size. If that chart is unavailable, do not exceed conservative low-pressure steam service limits (consult a qualified engineer) and consider using high-temperature seals or a valve rated specifically for steam at your required pressure.

Can the Stainless steel ball valve with BSP thread, type 2017K be used for aggressive chemicals and which temperatures/pressures are allowable?

Stainless steel ball valve with BSP thread, type 2017K can be used with many aggressive chemicals, gases, water, steam and petrochemical products provided the chemical compatibility of the valve materials (body and ball: stainless steel CF8M; seals: PTFE/RTFE) with the specific media is confirmed. PTFE seals offer good resistance to most chemicals but may be attacked by molten alkali metals, elemental fluorine, and certain aggressive fluorinating agents. Operating temperature range is -20Â°C to +200Â°C; allowable working pressure varies with temperature (higher at lower temperatures, reduced near the upper temperature limit) - consult manufacturer pressureâtemperature charts or datasheet for exact pressure ratings at specific temperatures and for media-specific compatibility.

Does the Stainless steel ball valve with BSP thread, type 2017K have a lever lock for safety during maintenance?

Yes. The Stainless steel ball valve with BSP thread, type 2017K has a lever lock for safety during maintenance. the product description explicitly lists "lever lock" as a feature. The valve is a one-piece reduced-flow design intended for industrial use (air, gases, water, steam, chemicals, petrochemical products, etc.), with stainless steel CF8M body and ball, AISI 304 lever, PTFE/RTFE ball sealing, PTFE stem sealing, BSP thread connection, and an operating temperature range of -20Â°C to +200Â°C.

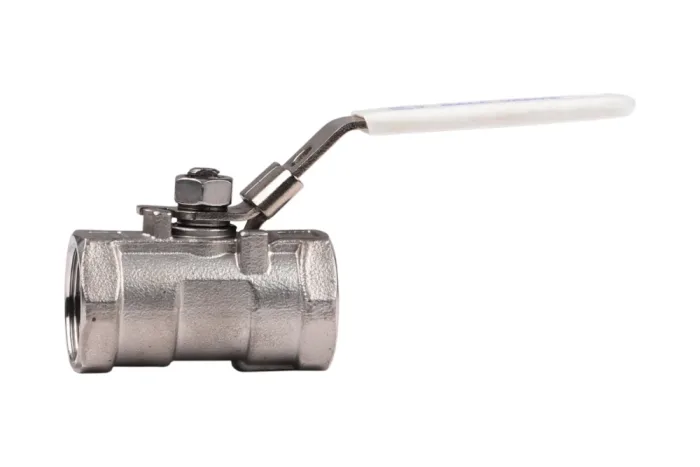

Ball valve stainless with female thread BSP, type 2017K

All products, Ball valves/

Additional information

Material	SS – stainless steel

Universal one-piece ball valve type 2017K of reduced bore and a lock lever, intended for installations industrial. can be used for air, gases, water, water vapor, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Working pressure dependent is od temperature use. Material the body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel stainless AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. connection: BSP female. Operating temperature: from -20°C to +200°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HT-2017K-08	Valve ball type 2017K 1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-08X	Valve ball type 2017K-X 1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-10	Valve ball type 2017K 3/8" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-10X	Valve ball type 2017K-X 3/8" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-15	Valve ball type 2017K 1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-15X	Valve ball type 2017K-X 1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-20	Valve ball type 2017K 3/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-20X	Valve ball type 2017K-X 3/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-25	Valve ball type 2017K 1" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-25X	Valve ball type 2017K-X 1" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-32	Valve ball type 2017K 1.1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-32X	Valve ball type 2017K-X 1.1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-40	Valve ball type 2017K 1.1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-40X	Valve ball type 2017K-X 1.1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-50	Valve ball type 2017K 2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2017K-50X	Valve ball type 2017K-X 2" BSP female, AISI 316	-	63	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal one-piece ball valve type 2017K of reduced bore and a lock lever, intended for installations industrial. can be used for air, gases, water, water vapor, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Working pressure dependent is od temperature use. Material the body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel stainless AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. connection: BSP female. Operating temperature: from -20°C to +200°C.
