Can the Ball valve for pneumatic hammers, carbon steel handle 25 bar pressure and -20Â°C to +100Â°C operating range safely?

Yes. The Ball valve for pneumatic hammers, carbon steel is suitable and can operate safely within the specified conditions. It is designed for compressed air use with a working pressure of 25 bar, matching the stated pressure limit. Body and lever made of galvanized carbon steel provide robust mechanical strength and corrosion resistance suitable for industrial environments. The chrome-plated brass ball offers smooth operation and good wear resistance, while the PTFE ball sealing ensures reliable leak-tight performance and chemical compatibility with compressed air across a wide temperature range. The declared operating temperature range of -20Â°C to +100Â°C is compatible with PTFE seals and standard metal components, so the valve should maintain functionality and sealing performance throughout that span. Ensure correct installation, regular inspection for wear or damage, and that the actual service conditions (shock loads, vibration from pneumatic hammers, contaminants, and any media other than clean compressed air) do not exceed design assumptions. If operation involves extreme cyclic hammering, high particulate content, or chemical contaminants, consider additional filtration, dampening, or a valve rated for higher impact duty.

Is the Ball valve for pneumatic hammers, carbon steel suitable for use with lubricated compressed air systems at 25 bar?

Yes - the Ball valve for pneumatic hammers, carbon steel is suitable for use with lubricated compressed air systems at 25 bar. The product is specified for compressed air with a working pressure of 25 bar, uses PTFE ball sealing (compatible with lubricated air), and materials (galvanized carbon steel body, chromeâplated brass ball) are appropriate for standard lubricated air service in the stated temperature range (â20Â°C to +100Â°C). Ensure your lubricants are PTFEâcompatible and follow any maintenance/compatibility guidance from the system or valve supplier.

Does the Ball valve for pneumatic hammers, carbon steel resist corrosion in humid compressed air environments?

Partially. but with limitations. Explanation: The Ball valve for pneumatic hammers, carbon steel uses galvanized carbon steel for the body and lever, chrome-plated brass for the ball, and PTFE seats. Galvanizing and chrome plating provide a degree of corrosion protection compared with bare carbon steel or uncoated brass, and PTFE is chemically inert and unaffected by humidity. For typical humid compressed air environments these coatings will slow corrosion and allow acceptable service life under normal use and maintenance. Limitations and risks: - Galvanized coating can be attacked over time by moisture, condensation, chlorides, acidic contaminants, or abrasion; once the coating is damaged, underlying carbon steel will corrode. - Chrome plating on the ball resists wear and corrosion, but plating defects (pits, cracks) can expose base metal and compromise sealing. - Compressed air often contains water, oil, and dissolved contaminants; without proper filtration/drying and regular maintenance (drain, lubricator, filters), corrosion and internal fouling can shorten valve life. - High humidity plus elevated temperatures, saline or chemically contaminated environments, frequent cycling, or abrasive particulates accelerate degradation. Recommendations: - For best corrosion resistance in persistently humid or aggressive environments, consider stainless steel bodies/parts or higher-grade coatings. - Use proper air preparation (filters, dryers, separators), regular inspection, and replace damaged valves or coatings promptly. - If staying with this model, ensure itâs installed where coatings remain intact and maintenance procedures mitigate moisture exposure. Conclusion: The Ball valve for pneumatic hammers, carbon steel offers moderate corrosion resistance in humid compressed air due to galvanizing and chrome plating, but it is not as durable as stainless-steel valves and will require good air treatment and maintenance to avoid premature corrosion.

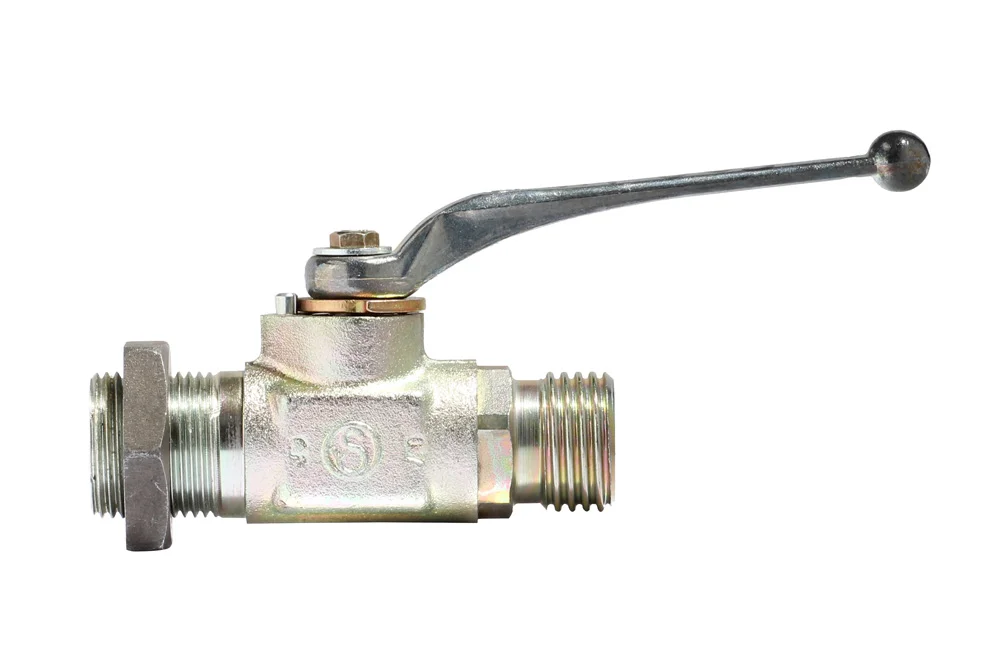

Ball valve for hammers pneumatic, steel carbon

All products, Ball valves/

Additional information

Material	CS – steel (cast iron)

Ball valve for compressed air, intended for hammers pneumatic. Working pressure: 25 bar. Material the body: steel carbon galvanized. Material the ball: brass chrome-plated. Material lever: steel carbon galvanized. sealing the ball: PTFE. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MU-301	Valve ball with 3/4" male / 3/4" male	-	25	In stock	Enquiry
MU-302	Valve ball with 3/4" male / male Rd32x1/8"	-	25	In stock	Enquiry
MU-303	Valve ball with 1" male / male Rd32x1/8"	-	25	In stock	Enquiry
MU-307	Valve ball with 1" male / 1" male	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Ball valve for compressed air, intended for hammers pneumatic. Working pressure: 25 bar. Material the body: steel carbon galvanized. Material the ball: brass chrome-plated. Material lever: steel carbon galvanized. sealing the ball: PTFE. Operating temperature: from -20°C to +100°C.
