Is the Ball valve with aluminum butterfly with BSP/GZ BSP thread, type 4334 suitable for use with aggressive chemicals given its nickel-plated brass body and PTFE seals?

Ball valve with aluminum butterfly with BSP/GZ BSP thread, type 4334 may be suitable for some aggressive chemicals but not all. Key points: - Materials: nickel-plated brass body and chrome-plated brass ball offer moderate corrosion resistance but are vulnerable to strong acids, chlorides, ammonia, and some halogenated solvents. Aluminum lever is fine mechanically but can corrode in some environments. - Seals: PTFE ball sealing has excellent chemical resistance to most acids, bases, solvents and aggressive media up to its temperature limits. NBR stem sealing is limited.poor resistance to strong ketones, aromatics, chlorinated solvents and some oils. - Temperature/pressure: Operating range -20Â°C to +110Â°C; chemical compatibility can change with temperature and affects allowable pressure. - Compliance: Meets PED 2014/68/EU for pressure equipment, but this does not guarantee chemical compatibility. Recommendation: For aggressive chemicals, verify compatibility for each specific chemical (and concentration/temperature) against brass, nickel plating, PTFE and NBR. If exposure includes highly corrosive media (strong acids, chlorides, chlorinated hydrocarbons, ammonia), consider valves in stainless steel/Hastelloy with fully PTFE or FFKM seals.

Can Ball valve with aluminum butterfly with BSP/GZ BSP thread, type 4334 handle high-temperature fluids up to 110Â°C without seal degradation?

Yes - Ball valve with aluminum butterfly with BSP/GZ BSP thread, type 4334 can handle fluids up to +110Â°C without seal degradation provided the media and conditions are compatible with its materials. The valve uses PTFE ball seals (good to ~+110Â°C) and NBR stem seals (NBR typically rated to â+100â¦+110Â°C; long-term exposure near the upper limit can reduce service life). Body: nickelâplated brass; ball: chromeâplated brass; lever: aluminum. Ensure chemical compatibility of media with PTFE, NBR and brass and consider pressure derating at elevated temperatures per the operating specs/PED 2014/68/EU. For continuous highâtemperature service or aggressive media, consider specifying higherâtemperature elastomers or confirming with the manufacturer.

Does Ball valve with aluminum butterfly with BSP/GZ BSP thread, type 4334 meet PED 2014/68/EU requirements for industrial installations?

Ball valve with aluminum butterfly with BSP/GZ BSP thread, type 4334 meets the PED 2014/68/EU requirements for industrial installations. Yes. according to the provided product description, Ball valve with aluminum butterfly with BSP/GZ BSP thread, type 4334 "meets the requirements of the PED Directive 2014/68/EU." Therefore it is declared compliant with PED for use in industrial installations, subject to the conditions stated (media compatibility with materials and sealing, working pressure limited by operating temperature, and the specified temperature range of â20Â°C to +110Â°C). Ensure final conformity by verifying applicable pressure equipment category, any required conformity assessment module, and accompanying documentation (EC Declaration of Conformity, manufacturerâs technical file, markings) for your specific installation and operating conditions.

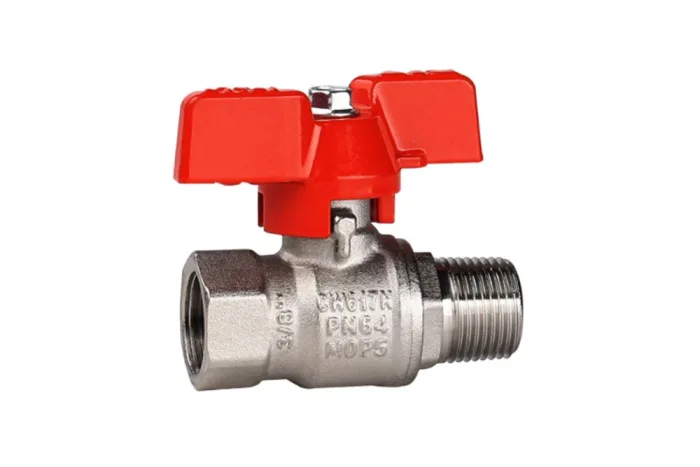

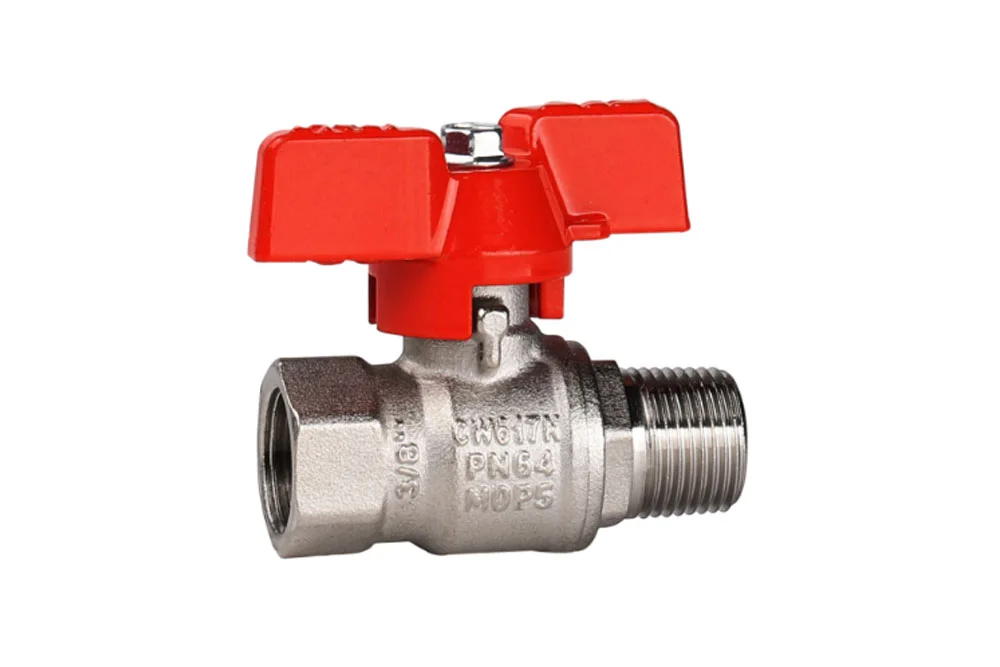

Ball valve with a butterfly handle aluminum with female thread BSP/BSP male, type 4334

All products, Ball valves/

Additional information

Material	B – brass (bronze)

Universal ball valve type 4334 intended for installations industrial. can be used for air, gases, water, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Meets the requirements of the PED 2014/68/EU directive. Working pressure dependent is od temperature use. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: NBR. connection: BSP female/BSP male. Operating temperature: from -20°C to +110°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RV-4334-06	Valve ball type 4334 female/male BSP 1/4", brass, butterfly lever aluminum	-	40	In stock	Enquiry
RV-4334-10	Valve ball type 4334 female/male BSP 3/8", brass, butterfly lever aluminum	-	40	In stock	Enquiry
RV-4334-13	Valve ball type 4334 female/male BSP 1/2", brass, butterfly lever aluminum	-	40	In stock	Enquiry
RV-4334-19	Valve ball type 4334 female/male BSP 3/4", brass, butterfly lever aluminum	-	32	In stock	Enquiry
RV-4334-25	Valve ball type 4334 female/male BSP 1", brass, butterfly lever aluminum	-	32	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal ball valve type 4334 intended for installations industrial. can be used for air, gases, water, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Meets the requirements of the PED 2014/68/EU directive. Working pressure dependent is od temperature use. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: NBR. connection: BSP female/BSP male. Operating temperature: from -20°C to +110°C.
