Is the Flanged ball valve, type 2019S suitable for steam service at 180Â°C and PN16 pressure rating?

Flanged ball valve, type 2019S is NOT suitable for steam service at 180Â°C and PN16. Although the valve is intended for steam use and has PN16 flanged connection, its specified operating temperature range is â20Â°C to +200Â°C. Steam at 180Â°C is within that temperature limit, but the allowable working pressure for PN16 decreases with temperature; the valveâs maximum pressure at 180Â°C may be below PN16 nominal rating. More importantly, the sealing materials (PTFE / RTFE) and stem seals have temperature limits and longâterm exposure to saturated steam at 180Â°C can degrade sealing performance and leakage tightness. Therefore you must confirm the valveâs permitted working pressure vs. temperature curve from the manufacturer (temperature/pressure chart) and verify steamâservice suitability (including fugitive emission and seat compatibility) before use. If manufacturer documentation explicitly rates the valve for steam at 180Â°C and the reduced allowable pressure at that temperature meets your system requirements, it can be used; otherwise select a valve with appropriate highâtemperature seals and certified steam rating.

Can the Flanged ball valve, type 2019S be used with aggressive chemicals given its CF8M body and PTFE seals?

Flanged ball valve, type 2019S can be used with aggressive chemicals in many cases, but compatibility must be verified case-by-case. The valve has a CF8M (AISI 316) stainless steel body and ball and PTFE/RTFE seals, with PTFE stem packing-materials that offer good corrosion resistance and broad chemical compatibility. Operating limits are -20Â°C to +200Â°C and flange PN16; working pressure varies with temperature. Before use with aggressive media, confirm chemical compatibility of CF8M and PTFE with the specific chemical (concentration, temperature, presence of halogens, oxidizers or fluorinated solvents can pose risks), and ensure the required pressure/temperature class and PED compliance for the application. If doubtful, consult manufacturer's compatibility data or select more resistant materials (e.g., special alloys or elastomers).

Does the Flanged ball valve, type 2019S support actuation per ISO 5211 for automated control?

Yes. Flanged ball valve, type 2019S supports actuation per ISO 5211. The product description explicitly states an actuator connection according to ISO 5211, meaning the valve is prepared for direct mounting of pneumatic or electric actuators compliant with ISO 5211. Materials, sealing and flange configuration (stainless steel CF8M body/ball, PTFE/RTFE seals, PN16 DIN 2501 flange) are suitable for automated control within the specified temperature range (-20Â°C to +200Â°C) and applicable media, provided chemical compatibility and PED requirements (2014/68/EU) are observed. Ensure actuator size and torque match the valveâs operating torque at your working pressure and temperature.

Ball valve flange, type 2019S

All products, Ball valves/

Additional information

Material	SS – stainless steel

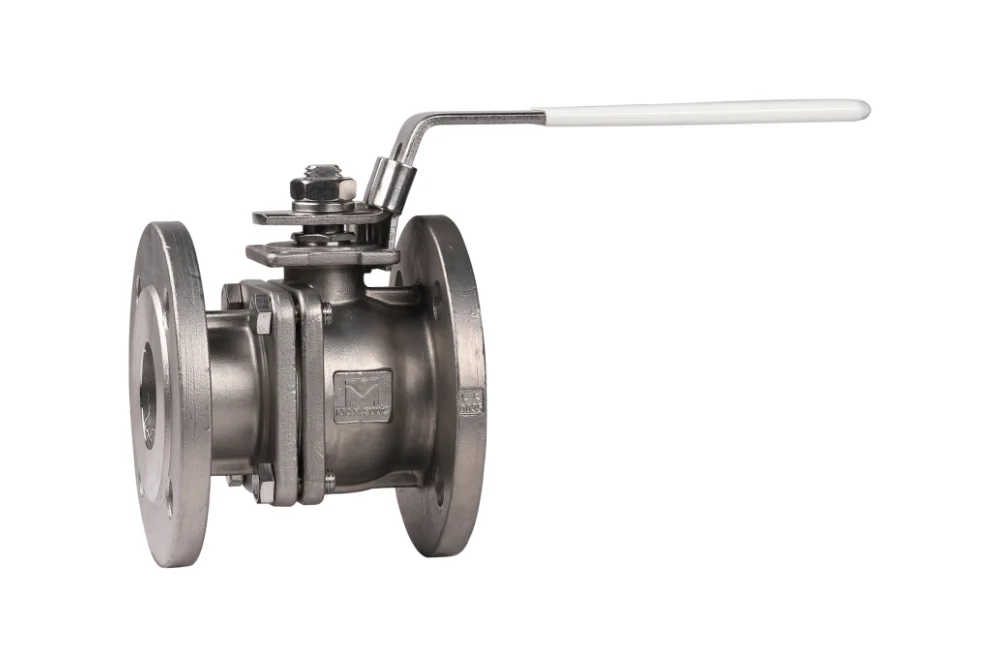

Universal Two-part, flange ball valve type 2019S with full bore, a lock lever and connection for the actuator acc. to ISO 5211, intended for installations industrial. can be used for air, gases, water, water vapor, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Meets the requirements of the PED 2014/68/EU directive. Working pressure dependent is od temperature use. Material the body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel stainless AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. connection: flange PN16 acc. to DIN 2501. Operating temperature: from -20°C to +200°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HT-2019S-015	Valve ball type 2019S DN15 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-020	Valve ball type 2019S DN20 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-025	Valve ball type 2019S DN25 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-032	Valve ball type 2019S DN32 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-040	Valve ball type 2019S DN40 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-050	Valve ball type 2019S DN50 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-065	Valve ball type 2019S DN65 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-080	Valve ball type 2019S DN80 flange PN16, AISI 316	-	16	In stock	Enquiry
HT-2019S-100	Valve ball type 2019S DN100 flange PN16, AISI 316	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal Two-part, flange ball valve type 2019S with full bore, a lock lever and connection for the actuator acc. to ISO 5211, intended for installations industrial. can be used for air, gases, water, water vapor, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Meets the requirements of the PED 2014/68/EU directive. Working pressure dependent is od temperature use. Material the body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel stainless AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. connection: flange PN16 acc. to DIN 2501. Operating temperature: from -20°C to +200°C.
