Can BANJO angle body with clamping ring, type D17 (nickelâplated brass, through bolts D7âD10) handle continuous operation at 18 bar pressure?

Yes. The BANJO angle body with clamping ring, type D17 (nickelâplated brass, through bolts D7âD10) is specified with a working pressure of 18 bar, so it is designed to handle continuous operation at 18 bar. Ensure correct selection and installation of the appropriate through bolts (D7, D8, D9 or D10) and follow manufacturer torque and assembly instructions to maintain the seal and mechanical integrity under continuous pressure. Regular inspection for wear, corrosion or damage to the nickelâplated brass and clamping components is recommended for longâterm reliable operation.

Is BANJO angle body with clamping ring, type D17 (nickelâplated brass, through bolts D7âD10) compatible with other sealing materials for 18 bar use?

Yes. BANJO angle body with clamping ring, type D17 (nickelâplated brass, through bolts D7âD10) can be used with alternative sealing materials for 18 bar service provided those seals are chemically and thermally compatible with the media and temperature range, and are rated for at least 18 bar pressure. When selecting seals, verify: 1) material compatibility with fluids (e.g., NBR, EPDM, FKM, PTFE); 2) maximum temperature limits; 3) hardness and compression set suitable for metal-to-seal clamping; 4) dimensional fit for the D17 sealing groove. Follow BANJOâs assembly torque and installation guidance. If in doubt, consult the seal manufacturer or BANJO technical support for certified combinations.

Does BANJO angle body with clamping ring, type D17 (nickelâplated brass, through bolts D7âD10) require special maintenance for 18 bar use?

No special maintenance beyond standard good practice is required for BANJO angle body with clamping ring, type D17 to operate at 18 bar, provided the following are observed: - Use within specified limits: Ensure the assembly is used at or below the stated working pressure of 18 bar and within the intended temperature and media compatibility for nickelâplated brass. - Regular inspection: Periodically check the clamping ring, through bolts (D7âD10), sealing surfaces and threads for signs of wear, corrosion, loosening or damage. Replace any worn or corroded components. - Proper torque and fastening: Ensure through bolts D7âD10 are tightened to the manufacturerâs recommended torque (if provided). Retighten after initial service if a settling/relaxation effect occurs. - Cleanliness and sealing: Keep sealing faces and mating parts clean; use compatible seals/gaskets. Avoid abrasive particles that can damage seating surfaces. - Corrosion protection: Although nickelâplated brass is corrosion resistant, avoid prolonged exposure to strongly corrosive chemicals or environments; rinse and dry after contact with aggressive media. - Leak testing: Perform pressure/leak tests after assembly and periodically in service to confirm integrity at 18 bar. - Follow manufacturer guidance: Adhere to any specific instructions from BANJO for installation, maintenance intervals and replacement parts. If the product will face unusual conditions (cyclic pressure, extreme temperatures, aggressive fluids, vibration), consult BANJO or technical documentation for additional checks or more frequent maintenance.

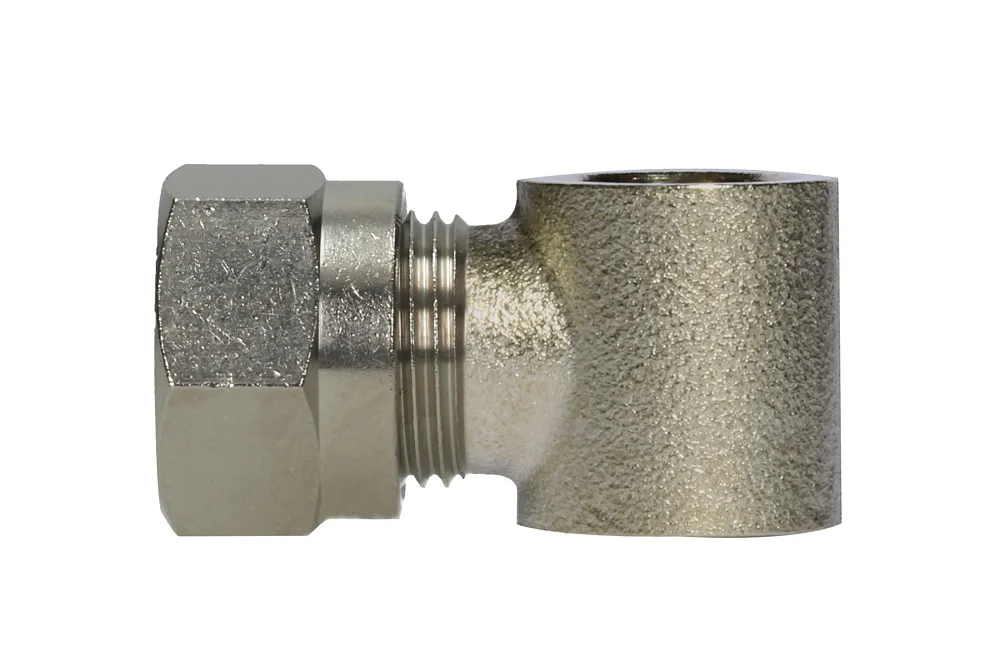

Angled BANJO body with cutting ring, type D17

All products, Banjo fittings/

Additional information

Material	B – brass (bronze)

Angled body of the BANJO coupling with a cutting ring, type D17. Through-bolts for the body: D7, D8, D9, D10. Material: nickel-plated brass. Working pressure: 18 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2417002	Angled fitting BANJO D17, cutting ring, tube (hose) 6/4, for bolt BSP 1/8"	-	18	In stock	Enquiry
MW-2417003	Angled fitting BANJO D17, cutting ring, tube (hose) 6/4, for bolt BSP 1/4"	-	18	In stock	Enquiry
MW-2417004	Angled fitting BANJO D17, cutting ring, tube (hose) 8/6, for bolt BSP 1/8"	-	18	In stock	Enquiry
MW-2417005	Angled fitting BANJO D17, cutting ring, tube (hose) 8/6, for bolt BSP 1/4"	-	18	In stock	Enquiry
MW-2417006	Angled fitting BANJO D17, cutting ring, tube (hose) 4/2, for bolt BSP 1/8"	-	18	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Angled body of the BANJO coupling with a cutting ring, type D17. Through-bolts for the body: D7, D8, D9, D10. Material: nickel-plated brass. Working pressure: 18 bar.
