Is the BANJO screw with O-ring and female thread, type D9 compatible with couplings R28 and R29 at 18 bar working pressure?

Yes. The BANJO screw with O-ring and female thread, type D9 is specified for couplings type R28 and R29 and has a working pressure of 18 bar. Therefore it is compatible with couplings R28 and R29 at 18 bar working pressure. Material (nickelâplated brass) and the included Oâring support a sealed connection at that rated pressure.

Can the BANJO screw with O-ring and female thread, type D9 made of nickel-plated brass reliably withstand 18 bar when used with R28 or R29 couplings?

Yes. The BANJO screw with O-ring and female thread, type D9 made of nickel-plated brass, specified for couplings type R28 and R29 with a listed working pressure of 18 bar, can reliably withstand 18 bar when used with those couplings-provided correct installation and compatible mating parts. Ensure the O-ring is intact and of specified material, threads are undamaged and properly tightened to recommended torque, and both screw and coupling are free of contamination or corrosion. Do not exceed the specified 18 bar, avoid pulsating loads or aggressive fluids beyond material compatibility, and follow manufacturer installation and maintenance guidelines for safe, reliable service.

Does the BANJO screw with O-ring and female thread, type D9 meet sealing standards for R28/R29 at 18 bar?

Yes. Based on the provided description, the BANJO screw with O-ring and female thread, type D9 for couplings type R28, R29 (nickel-plated brass, working pressure 18 bar) meets the sealing requirements for R28/R29 at 18 bar. The component is specified for a working pressure of 18 bar and includes an O-ring seal intended to provide fluid-tight connection with the internal (female) thread used on R28/R29 couplings. As long as the part is installed correctly, the O-ring is undamaged and compatible with the fluid and temperature conditions, and mating components are within specified tolerances and undamaged, the assembly should achieve proper sealing at the rated 18 bar.

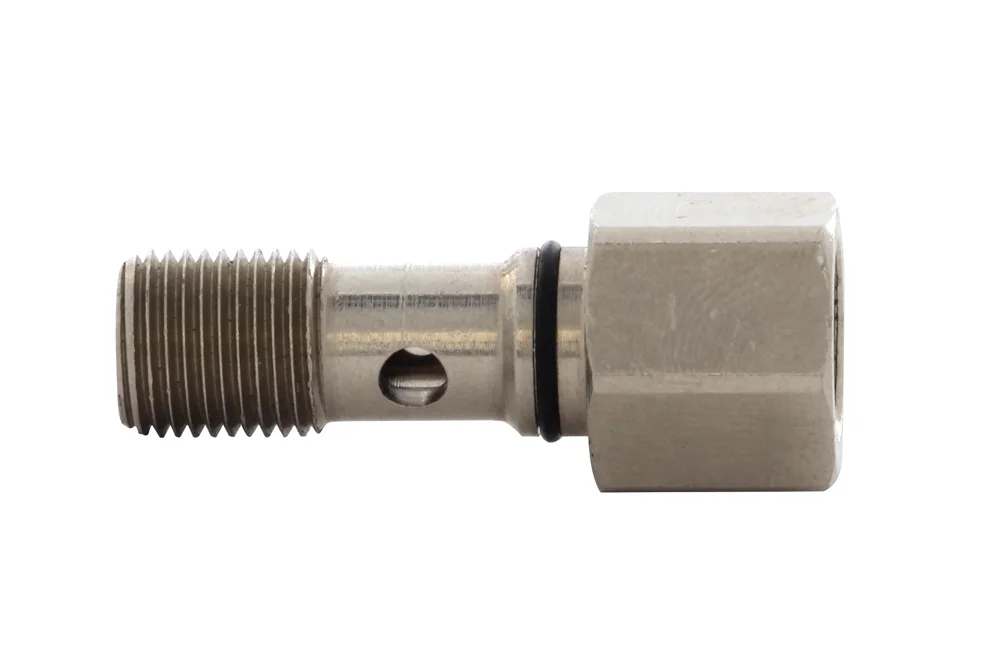

BANJO bolt with O-ring and female thread, type D9

All products, Banjo fittings/

Additional information

BANJO bolt with O-ring and female thread, type D9, for type R28, R29 fittings. Material: nickel-plated brass. Working pressure: 18 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2409102	Bolt with female for BANJO D9, female / 1/8" BSP male, 2 oringi	-	-	In stock	Enquiry
MW-2409103	Bolt with female for BANJO D9, female / 1/4" BSP male, 2 oringi	-	-	In stock	Enquiry
MW-2409104	Bolt with female for BANJO D9, female / 3/8" BSP male, 2 oringi	-	-	In stock	Enquiry
