Manifold module, SYNTESI® series 4-way version

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Minimum operating temperature [°C]	-10

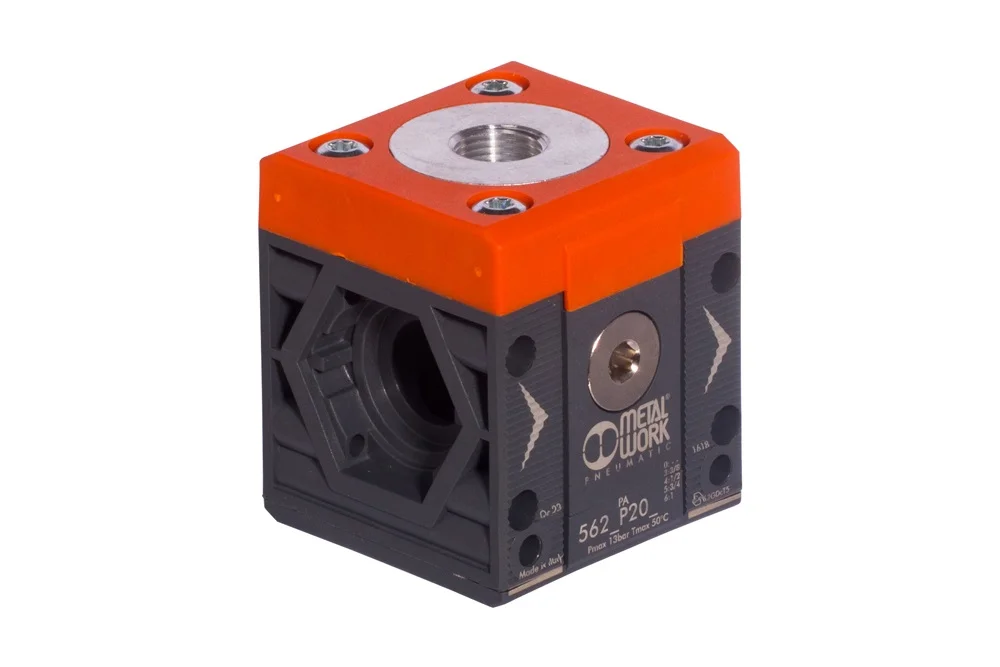

The branching module is a coupling mounted between any two SYNTESI® modules, used for independent air intake. It has 4 sockets for terminal connections on each plane. Size: SY1, SY2. Operating pressure: up to 15 bar for SY1 and up to 13 bar for SY2. Operating temperature: from -10°C to +50°C. Flow rate: 500 – 2000 l/min – SY1, 1500 – 4500 l/min – SY2, (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-5610P200	4-way branching module PA4 SY1 without end plates.	-	-	In stock	Enquiry
MW-5611P201	4-way distribution module PA4 SY1 1/8	-	-	In stock	Enquiry
MW-5612P202	4-way branching module PA4 SY1 1/4	-	-	In stock	Enquiry
MW-5613P203	4-way branching module PA4 SY1 3/8	-	-	In stock	Enquiry
MW-5620P200	4-way branching module PA4 SY2 without end plates.	-	-	In stock	Enquiry
MW-5623P203	4-way branching module PA4 SY2 3/8	-	-	In stock	Enquiry
MW-5624P204	4-way branching module PA4 SY2 1/2	-	-	In stock	Enquiry
MW-5625P205	4-way branching module PA4 SY2 3/4	-	-	In stock	Enquiry
MW-5626P206	4-way branching module PA4 SY2 1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The branching module is a coupling mounted between any two SYNTESI® modules, used for independent air intake. It has 4 sockets for terminal connections on each plane. Size: SY1, SY2. Operating pressure: up to 15 bar for SY1 and up to 13 bar for SY2. Operating temperature: from -10°C to +50°C. Flow rate: 500 – 2000 l/min – SY1, 1500 – 4500 l/min – SY2, (at an inlet pressure of 6 bar Δp = 1 bar).
