Can the MRF OFC brass pneumatic throttling and check valve, for actuator, COMPACT "O" series be mounted directly on an actuator with internal thread sizes M5â1/2â³ and withstand 10 bar?

Yes. The MRF OFC brass pneumatic throttling and check valve, for actuator, COMPACT "O" series can be mounted directly into an actuator with internal threads matching one of its available sizes (M5, 1/8â³, 1/4â³, 3/8â³, 1/2â³). It is designed for direct mounting in actuator connections, has an internal threaded connection, and its rated working pressure is up to 10 bar. Ensure you select the valve size that exactly matches the actuatorâs internal thread specification and follow proper sealing and tightening practice; the valveâs material (nickel-plated brass) and temperature range (â10Â°C to +70Â°C) are suitable for typical pneumatic actuator service.

Is the MRF OFC brass pneumatic throttling and check valve, for actuator, COMPACT "O" series adjustable with a screwdriver while mounted?

Yes. The MRF OFC brass pneumatic throttling and check valve, for actuator, COMPACT "O" series is adjustable with a screwdriver while mounted. The product description specifies "Adjustment change using a screwdriver" and offers an option to mount a protective cover, which implies on-site adjustment without dismounting. Operating limits: sizes M5â1/2â³, up to 10 bar, -10Â°C to +70Â°C, nickel-plated brass body.

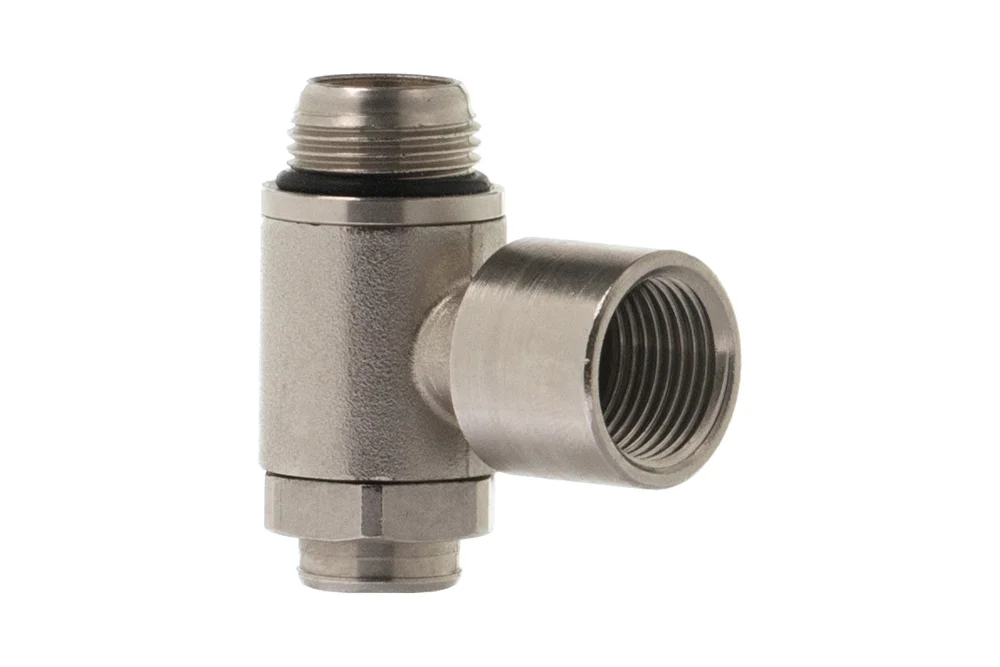

MRF OFC brass pneumatic throttling and check valve, for actuator, COMPACT “O” series

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

Throttle-return valve type MRF OFC series COMPACT “O” for direct mounting in actuator connections, used in pneumatic systems for regulating the flow rate of compressed air and the direction of flow. Equipped with an internal threaded connection. Adjustment change using a screwdriver, with the possibility of mounting a protective cover. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Material: nickel-plated brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9001020C	Throttle check valve for MRF OFC actuator, GW BSP 1/8", GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9001021C	Throttle check valve for MRF OFC actuator, GW BSP 1/4", GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9001022C	Throttle check valve for MRF OFC actuator, GW BSP 3/8", GZ BSP 3/8"	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Throttle-return valve type MRF OFC series COMPACT “O” for direct mounting in actuator connections, used in pneumatic systems for regulating the flow rate of compressed air and the direction of flow. Equipped with an internal threaded connection. Adjustment change using a screwdriver, with the possibility of mounting a protective cover. Size: M5, 1/8″, 1/4″, 3/8″, 1/2″. Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Material: nickel-plated brass.
